W415-2845 / B / 11.10.20
49
IOM

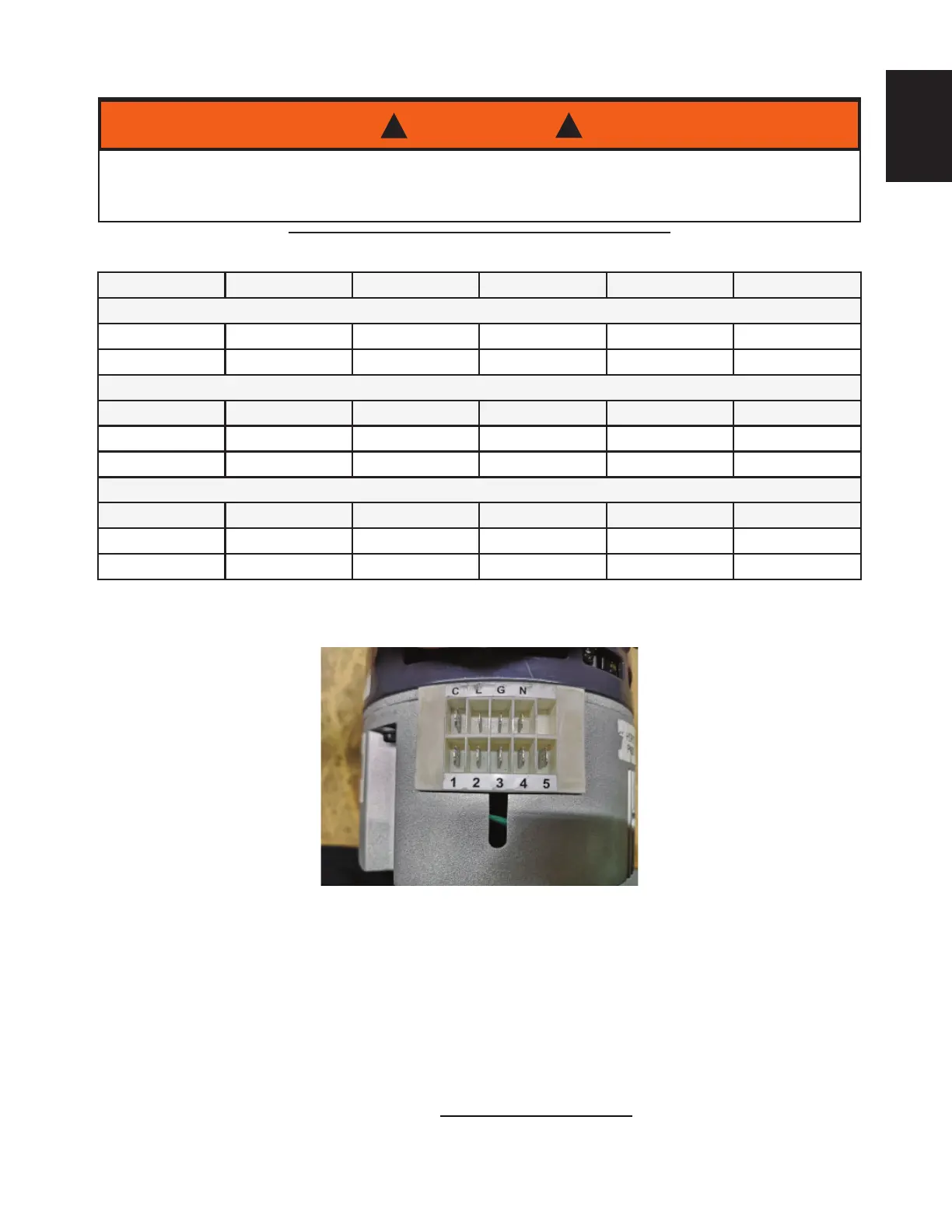

18.3 BLOWER AIRFLOW
H3.77
DISCONNECT THE ELECTRICAL SUPPLY TO THE FURNACE BEFORE ATTEMPTING TO
CHANGE THE BLOWER SPEED. FAILURE TO DO SO COULD RESULT IN ELECTRICAL
SHOCK RESULTING IN PERSONAL INJURY OR LOSS OF LIFE.
WARNING
!
!
18.4 CONTINUOUS FAN OPERATION
H22.3.3
When the thermostat continuous fan (G) switch is on without a call for heat or cooling, the indoor fan is
immediately energized on low heat speed. The fan remains energized as long as the call for fan remains
without a call for heat or cooling. This feature allows continuous circulation of air between calls for heating or
cooling.
If a call for heat (W) occurs during continuous fan, the blower will remain energized, the call for heat overides
the call for fan.
If a call for cool (Y) occurs simultaneously with the call for fan (G), the call for cool overrides the call for fan.
See Air Flow Data table.
TABLE 7A
FIGURE 33
ESP (in. WC)
Low Heat (1) High Heat (2) 1.5T Cool (3) 2.0T Cool (4) 2.5T Cool (5)
0.5 167 477 364 696 912
0.1 515 637 549 809 1013
ESP (in. WC)
Low Heat (1) High Heat (2) 2.0T Cool (3) 2.5T Cool (4) 3.0T Cool (5)
0.5 528 842 680 1010 1209
0.12 747 1002 860 1165 1327
ESP (in. WC)
Low Heat (1) High Heat (2) 2.0T Cool (3) 2.5T Cool (4) 3.0T Cool (5)
0.5 583 1028 712 931 1328
0.2 755 1146 866 1068 1418
Model: WSX040T2AA
Model: WSX060T3AA
Model: WSX080T3AA
Contact your authorized dealer or refer to Blower Airfl ow Specifi caƟ on Sheet on the Napoleon website for
more informaƟ on.
-EN
-EN
-EN
