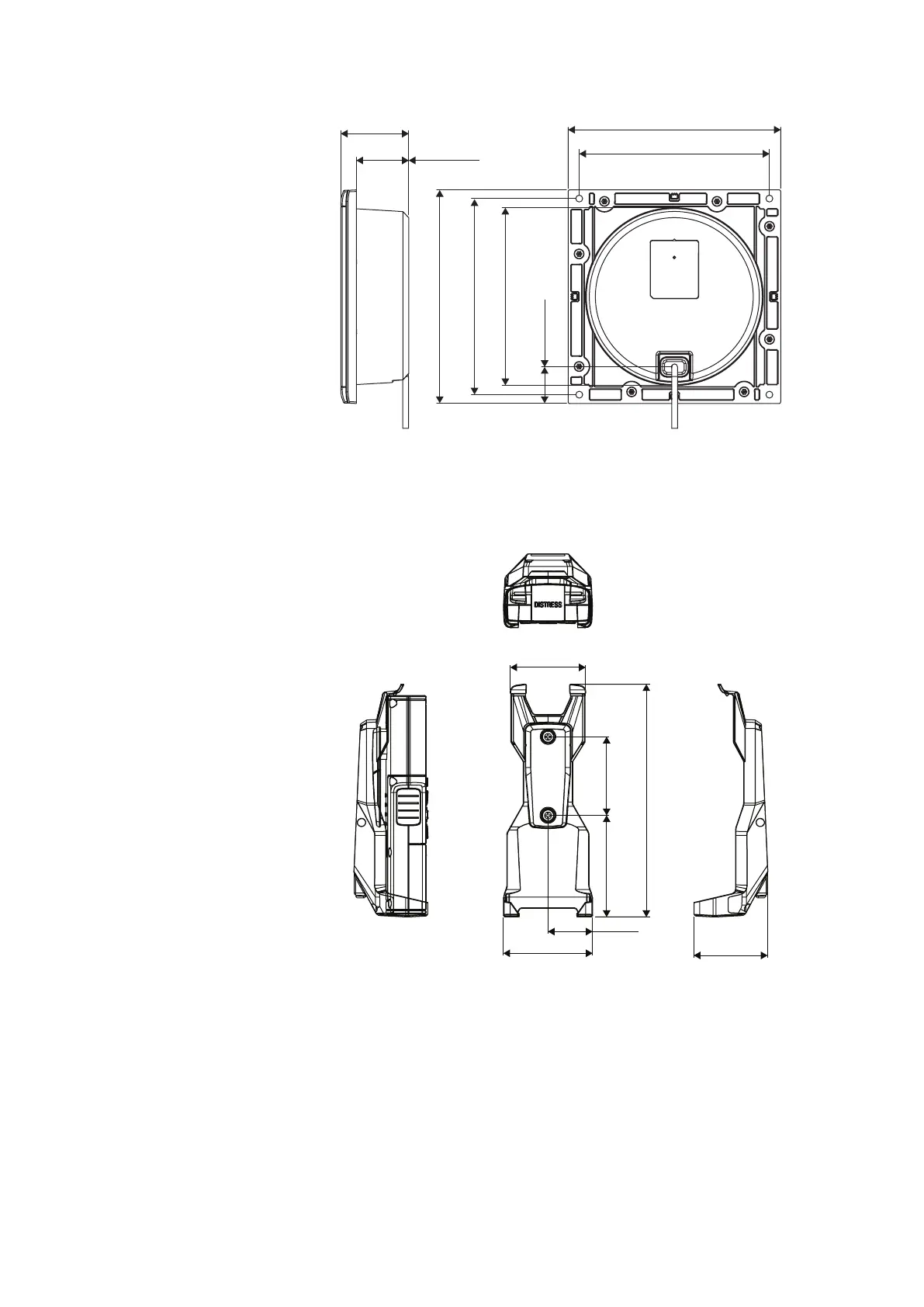

Navico Simrad RS100 - Speaker and Cradle Dimensions

SP100 Speaker
35.0 mm
(1.38”)
27.0 mm
(1.06”)
110.0 mm (4.33”) 101.0 mm (3.98”) 91.62 mm (3.61”)
98.0 mm (3.86”)
109.5 mm (4.31”)
18.77 mm
(0.74”)
Handset Cradle (CR100) / Charger (BC-12)
55.7 mm
(2.19”)
54.6 mm
(2.15”)
32.9 mm
(1.29”)
65.7 mm
(2.59”)
58.0 mm
(2.28”)
74.9 mm
(2.95”)
171.6 mm (6.75”)
80 |
