Mounting the Speaker
¼ Note: The wired speaker is provided with a 2m (6.5’) fixed cable. The cable maybe extended if
necessary using a minimum 14 AWG 2-pair cable.

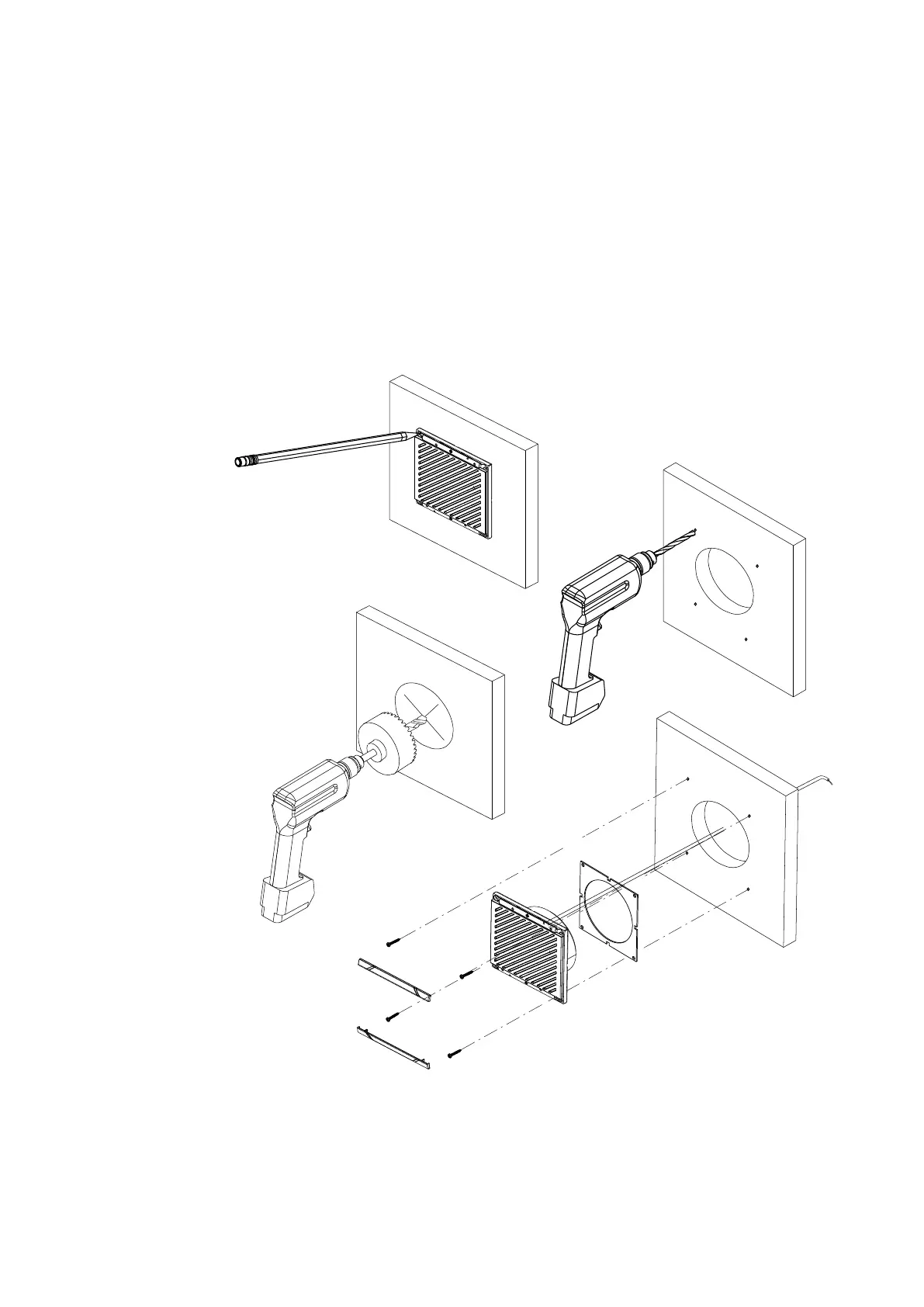

Flush mounting
1 Cut a 98 mm (3.86”) diameter hole in the mounting surface, allowing space for the speaker’s overall
dimensions.
2 Remove the plastic bezels that cover the screw holes. Temporarily fit the speaker and mark the four screw
holes.
3 Drill holes of appropriate size for fasteners to be used.
4 Fit the foam gasket to the rear of the speaker. Apply sealant to the screw holes and secure the speaker.
Refit the plastic bezels piece.
2
1
3
4
| 53
Installation | RS100 / RS100-B / V100 / V100-B User Manual
