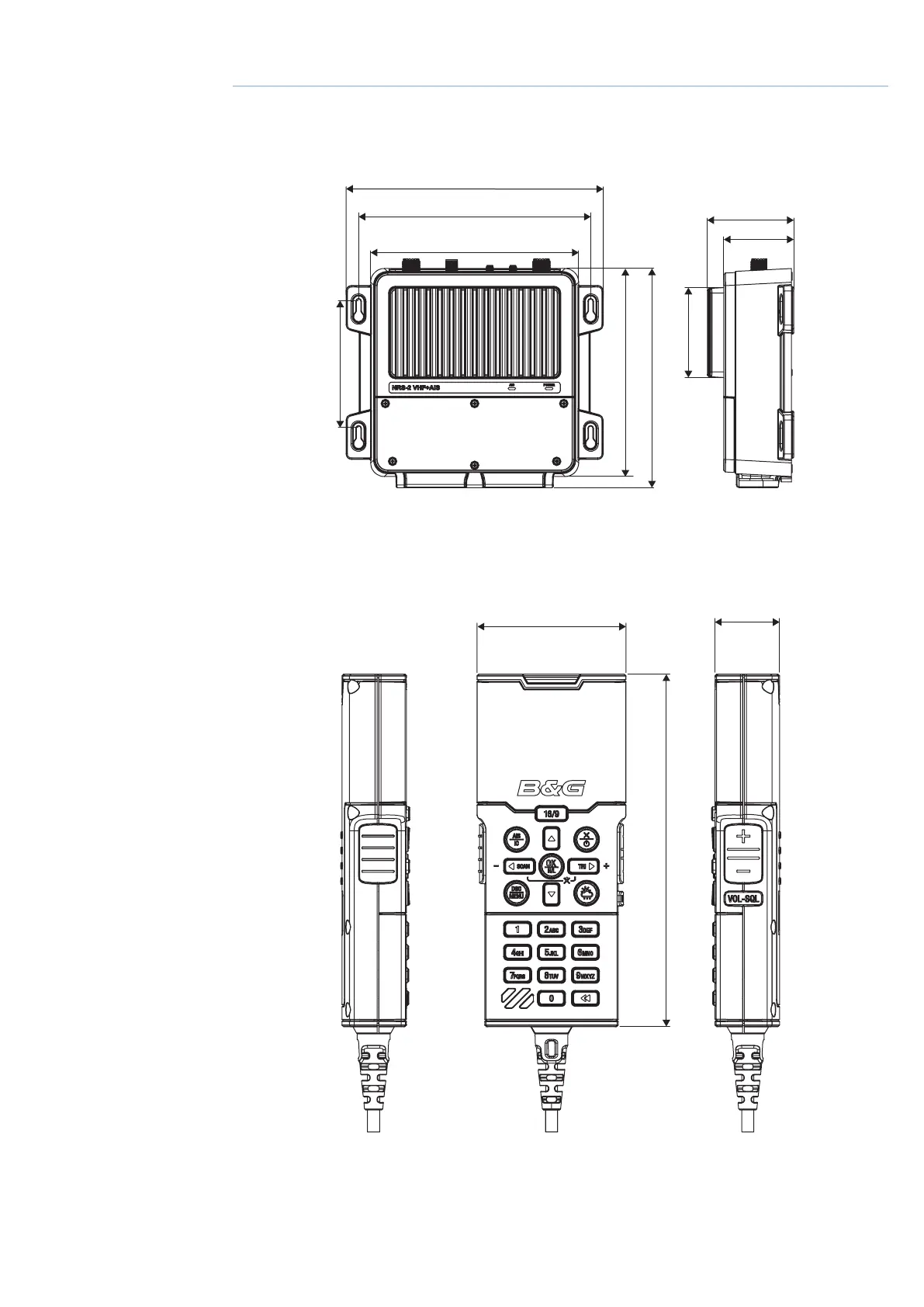

Dimensional drawings
NRS-1 and NRS-2 Blackbox
234.80 mm (9.24”)
79.0 mm (3.11”)
63.87 mm
(2.51”)
82.0 mm
(3.23”)
190.0 mm (7.48”)
200.08 mm (7.88”)
116.0 mm (4.57”)
212.0 mm (8.35”)
190.0 mm (7.48”)
HS100 and H100 Fixed Handset
68.0 mm (2.68”)
160.94 mm (6.34”)
29.50 mm
(1.16”)
