Once the wireless handset has been paired to the radio, the screen and key functionality are mimicked on
each device.
Most functions that are provided on the radio can be accessed by the wireless handset with the following
exceptions:
• SETUP - Some setup functions are not available on the wireless handset.
• HAILER - It is not possible to enter HAILER mode from the wireless handset.
When the wireless handset is not in use, it should be placed back into the charger cradle. The Wireless
handset is charged when placed in the cradle via the built-in contactless inductive charging system.
Long press the X key to turn OFF the wireless handset. The handset will automatically turn OFF after 90
seconds of no communication with the host radio.
Diagnostics
The radio comprises diagnostic displays with system data that can be helpful in investigating any issues.

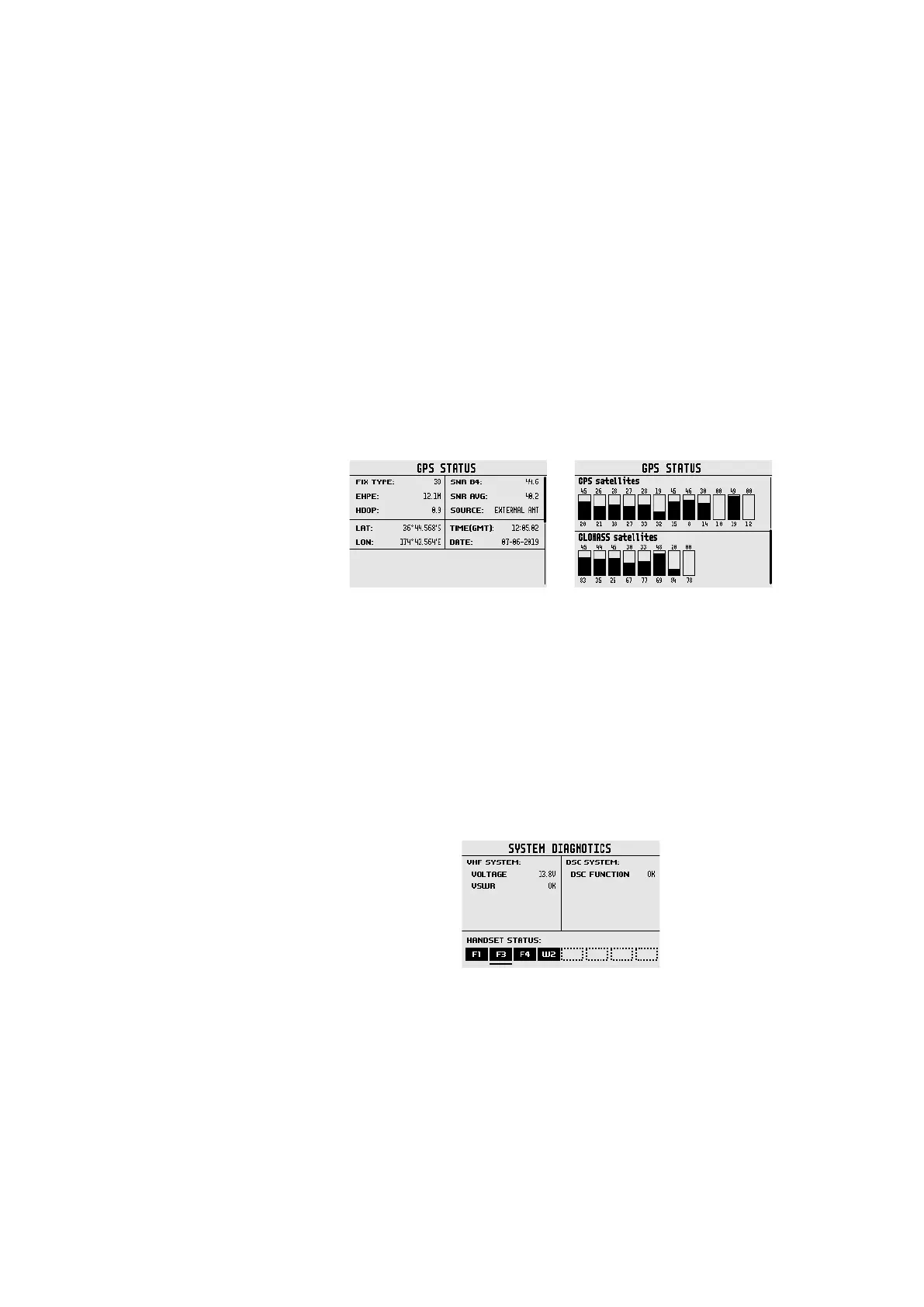

GPS status
¼ Note: This function is also available as a Shortcut.
Select to display the status of the radios internal GPS system.
SNR B4: Signal-to-noise ratio of best four satellites in view.
SNR AVG: Averaged Signal-to-noise ratio of all satellites in view.
TIME and DATE: Displayed in GMT.
¼ Note: GPS details will not show if the selected GPS Source is NMEA 2000, NMEA 0183 or Manual.
System diagnostics
¼ Note: This function is also available as a Shortcut.
Select to view radio, DSC and handset system diagnostics:
• VOLTAGE: Displays the system voltage at the radio
• VSWR: Tests the Impedance loading on the VHF antenna port each time it transmits. OK if passes,
otherwise FAIL – refer to troubleshooting guide.
• DSC FUNCTION: Shows result of DSC hardware self-test performed at power-on. OK if passes, otherwise
FAIL – refer to troubleshooting guide.
| 33
Radio menus | RS100 / RS100-B / V100 / V100-B User Manual
