Chapter 2: Hardware I
nstallation
2-23

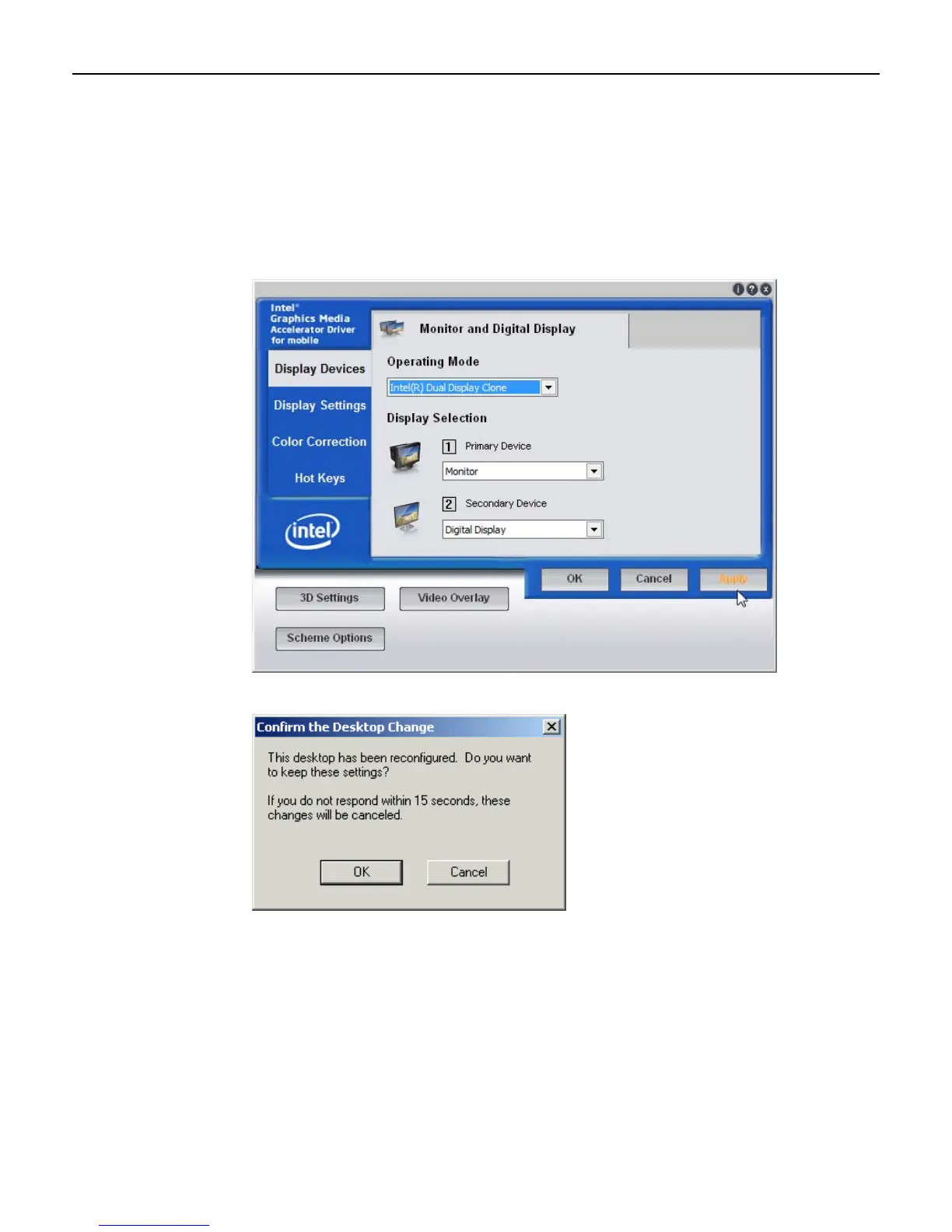

Dual Display Clone
1.
From
the
Operating
Mode
drop
‐
down
menu
select
Intel(R) Dual Display Clone
.
2.
Select
the
Primary
Device:
Monitor
or
Digital Display
.
3.
Select
the
Secondary
Device:
Digital Display
or
Monitor
.
4.
Select
Apply
.
5.
Select
OK
within
15
seconds
to
accept
the
new
settings.
6.
Select
OK
to
close
the
Control
Panel.
