Upgrades and Options
5. Using the screws and grounding clips supplied with
the drive, attach a plastic snap-in slide rail marked
"A" (Figure 4-15, A) to the right side of the device
(D). Install a grounding clip (C) under each screw
head.
6. Attach a plastic snap-in slide rail marked "B" (B) to
the left side of the device (D). Install a grounding
clip (C) under each screw head.
7. Position the device so that the plastic slide rails on
each side of the device engage the peripheral bay
guide rails.
8. Push the device into the bay until the slide rails lock
in place.

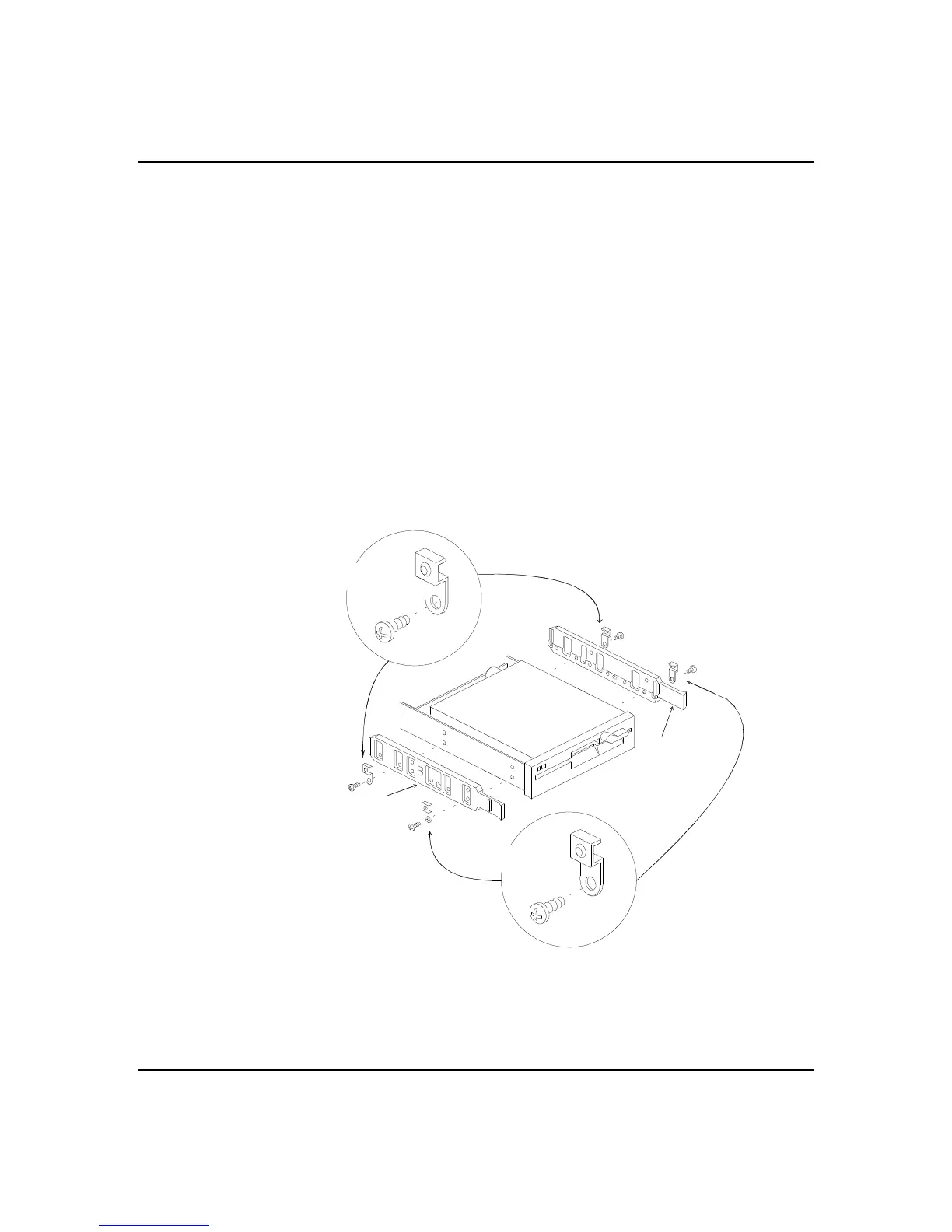

Figure 4-15. Attaching Slide Rails to a Device
B
A
D
C
C
