NEC MC453X User Manual

10
2. Projecting an Image (Basic Operation)
❷ Connecting Your Computer/Connecting the Power Cord

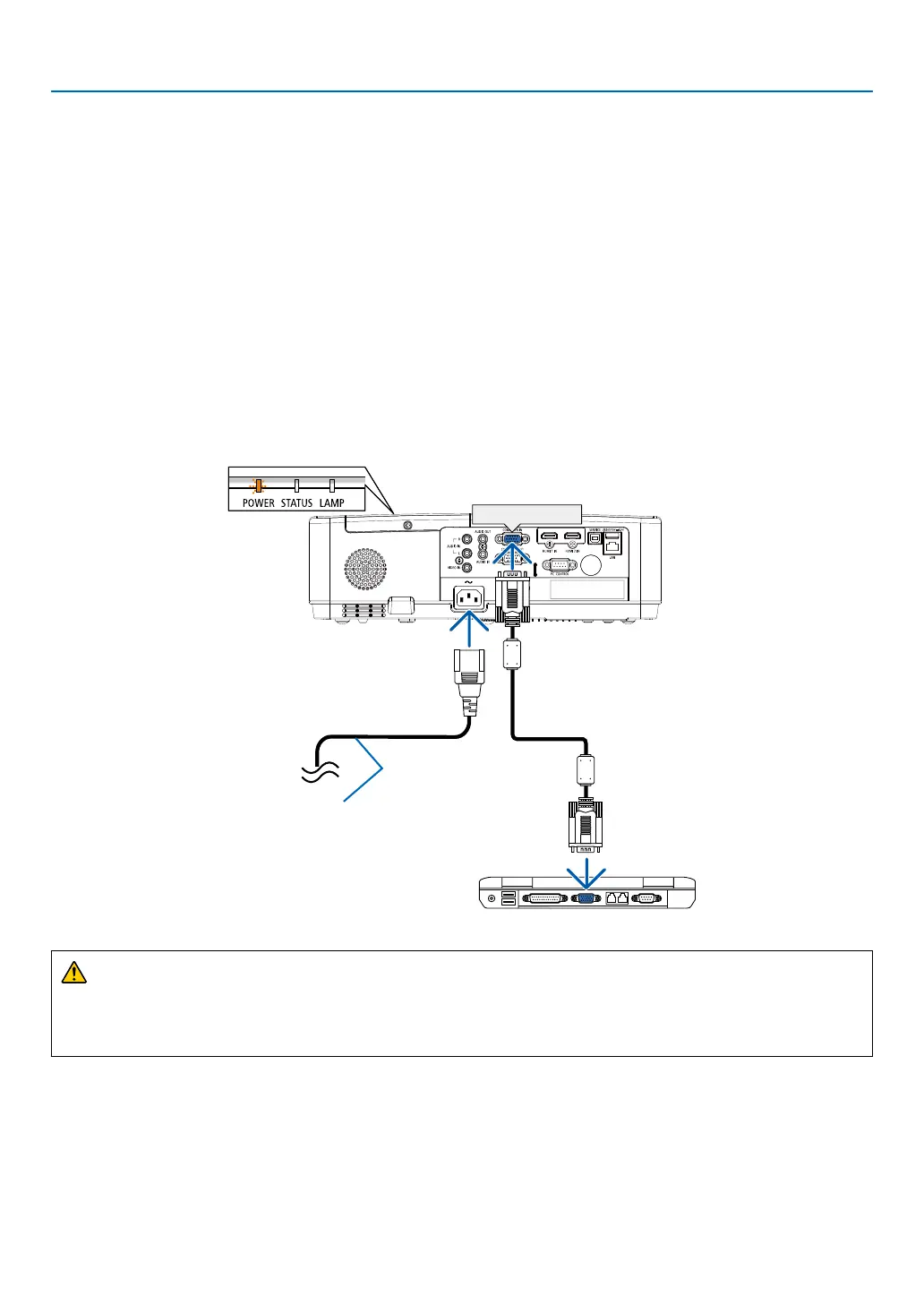

1. Connect your computer to the projector.
This section will show you a basic connection to a computer. For information about other connections, see
“6. Installation and Connections” on page 71.
Connect the computer cable (VGA) between the projector’s COMPUTER IN terminal and the computer’s port (mini
D-Sub 15 Pin). Turn two thumb screws of both terminals to fix the computer cable (VGA).
2. Connect the supplied power cord to the projector.
First connect the supplied power cord’s three-pin plug to the AC IN terminal of the projector, and then connect
another plug of the supplied power cord directly in the wall outlet. Do not use any plug converter.
The projector’s power indicator will start blinking orange.
* This will apply for both indicators when [NORMAL] is selected for [STANDBY MODE]. See the Power Indicator
section. (→ page 90)
COMPUTER IN
Make sure that the
prongs are fully inserted
into both the AC IN and
the wall outlet.
→ To wall outlet
CAUTION:
Parts of the projector may become temporarily heated if the projector is turned off with the POWER button or if
the AC power supply is disconnected during normal projector operation.
Be careful to handle the projector.

NEC MC453X Specifications

General

Native aspect ratio	4:3
Projection distance	0.9 - 10.9 m
Vertical scan range	50 - 120 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Contrast ratio (typical)	16000:1
Screen size compatibility	30 - 300 \
Projector native resolution	XGA (1024x768)
Keystone correction, horizontal	-30 - 30 °
RMS rated power	16 W
Number of built-in speakers	1
Placement	Ceiling, Floor
Product type	Standard throw projector
Product color	White
Cable lock slot type	Kensington
Lamp power	240 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Lamp power (economic mode)	150 W
Service life of light source	10000 h
Service life of light source (economic mode)	20000 h
Built-in display	-
Focus	Manual
Throw ratio	1.5 - 1.8:1
Focal length range	19.158 - 23.018 mm
Aperture range (F-F)	1.6 - 1.76
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	320 W
Power consumption (standby)	0.5 W
Power consumption (typical)	305 W
Power consumption (economy mode)	215 W
Power consumption (network standby)	2 W
Noise level	37 dB
Certification	UL, FCC Part15 Class B, CAN/CSA, ICES-003 Issue 6
Noise level (economic mode)	29 dB
Full HD	No
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Analog signal format system	Not supported
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA)
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100 Mbit/s
Storage temperature (T-T)	-10 - 50 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Remote control type	IR

Weight and Dimensions

Depth	261 mm
Width	345 mm
Height	108.4 mm
Weight	3300 g
Package depth	390 mm
Package width	450 mm
Package height	200 mm
Package weight	4700 g
