10. Appendix

❻ PC Control Codes and Cable Connection

PC Control Codes

Function Code Data

POWER ON 02H 00H 00H 00H 00H 02H

POWER OFF 02H 01H 00H 00H 00H 03H

INPUT SELECT COMPUTER 02H 03H 00H 00H 02H 01H 01H 09H

INPUT SELECT HDMI1 02H 03H 00H 00H 02H 01H 1AH 22H

INPUT SELECT HDMI2 02H 03H 00H 00H 02H 01H 1BH 23H

INPUT SELECT VIDEO 02H 03H 00H 00H 02H 01H 06H 0EH

INPUT SELECT USB-A 02H 03H 00H 00H 02H 01H 1FH 27H

INPUT SELECT LAN 02H 03H 00H 00H 02H 01H 20H 28H

PICTURE MUTE ON 02H 10H 00H 00H 00H 12H

PICTURE MUTE OFF 02H 11H 00H 00H 00H 13H

SOUND MUTE ON 02H 12H 00H 00H 00H 14H

SOUND MUTE OFF 02H 13H 00H 00H 00H 15H

NOTE: Contact your local dealer for a full list of the PC Control Codes if needed.

Cable Connection

Communication Protocol

Baud rate ........................................... 38400 bps

Data length ........................................ 8 bits

Parity ................................................. No parity

Stop bit .............................................. One bit

X on/off .............................................. None

Communications procedure ................ Full duplex

NOTE: Depending on the equipment, a lower baud rate may be recommended for long cable runs.

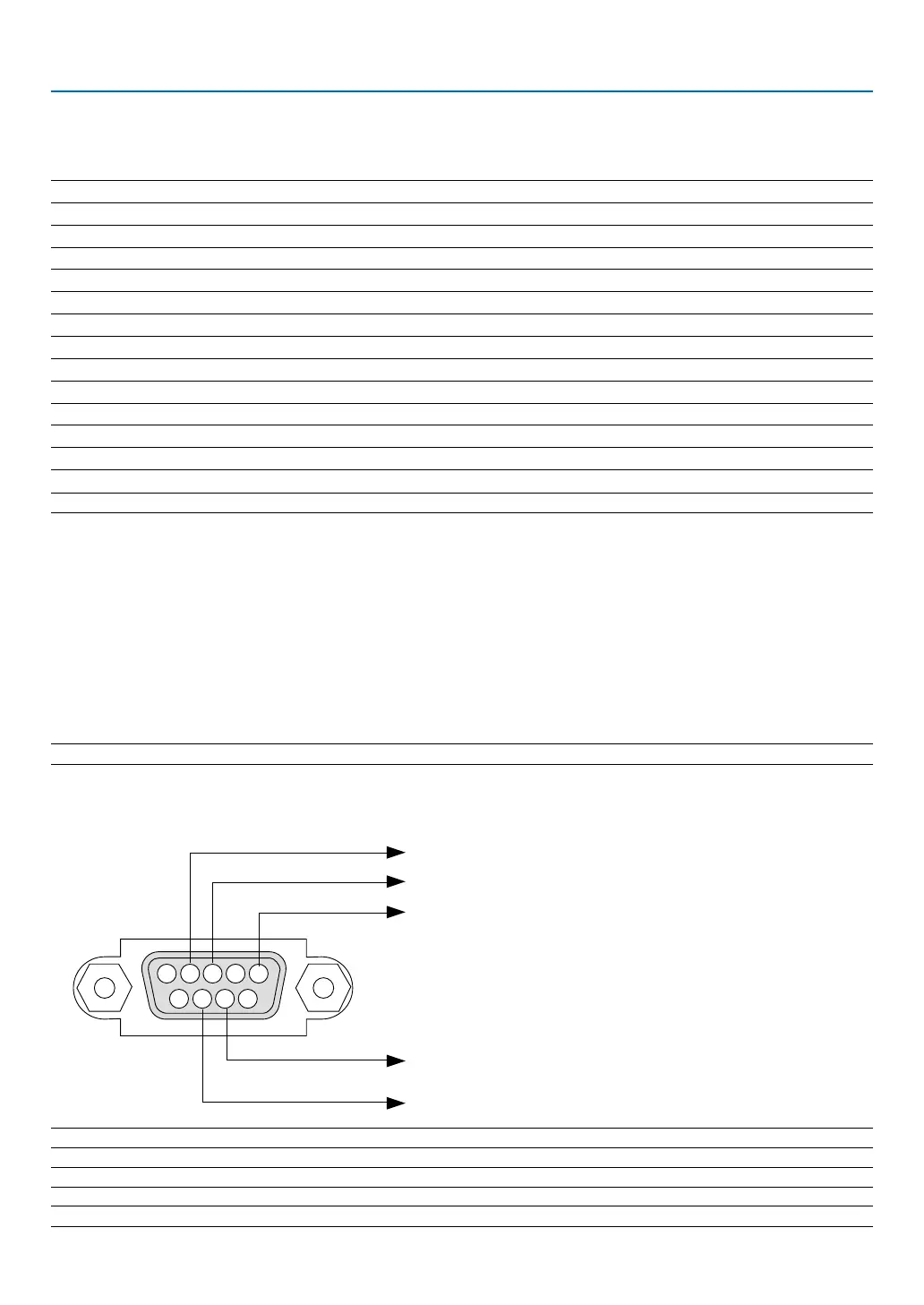

PC Control Terminal (D-SUB 9P)

NOTE 1: Pins 1, 4, 6 and 9 are no used.

NOTE 2: Jumper “Request to Send” and “Clear to Send” together on both ends of the cable to simplify cable connection.

NOTE 3: For long cable runs it is recommended to set communication speed within projector menus to 9600 bps.

15243

67 98

To GND of PC

To RxD of PC

To TxD of PC

To RTS of PC

To CTS of PC

Questions and Answers:

Need help?

Do you have a question about the NEC MC453X and is the answer not in the manual?

NEC MC453X Specifications

General

Native aspect ratio	4:3
Projection distance	0.9 - 10.9 m
Vertical scan range	50 - 120 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Contrast ratio (typical)	16000:1
Screen size compatibility	30 - 300 \
Projector native resolution	XGA (1024x768)
Keystone correction, horizontal	-30 - 30 °
RMS rated power	16 W
Number of built-in speakers	1
Placement	Ceiling, Floor
Product type	Standard throw projector
Product color	White
Cable lock slot type	Kensington
Lamp power	240 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Lamp power (economic mode)	150 W
Service life of light source	10000 h
Service life of light source (economic mode)	20000 h
Built-in display	-
Focus	Manual
Throw ratio	1.5 - 1.8:1
Focal length range	19.158 - 23.018 mm
Aperture range (F-F)	1.6 - 1.76
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	320 W
Power consumption (standby)	0.5 W
Power consumption (typical)	305 W
Power consumption (economy mode)	215 W
Power consumption (network standby)	2 W
Noise level	37 dB
Certification	UL, FCC Part15 Class B, CAN/CSA, ICES-003 Issue 6
Noise level (economic mode)	29 dB
Full HD	No
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Analog signal format system	Not supported
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA)
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100 Mbit/s
Storage temperature (T-T)	-10 - 50 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Remote control type	IR
