5. Using On-Screen Menu

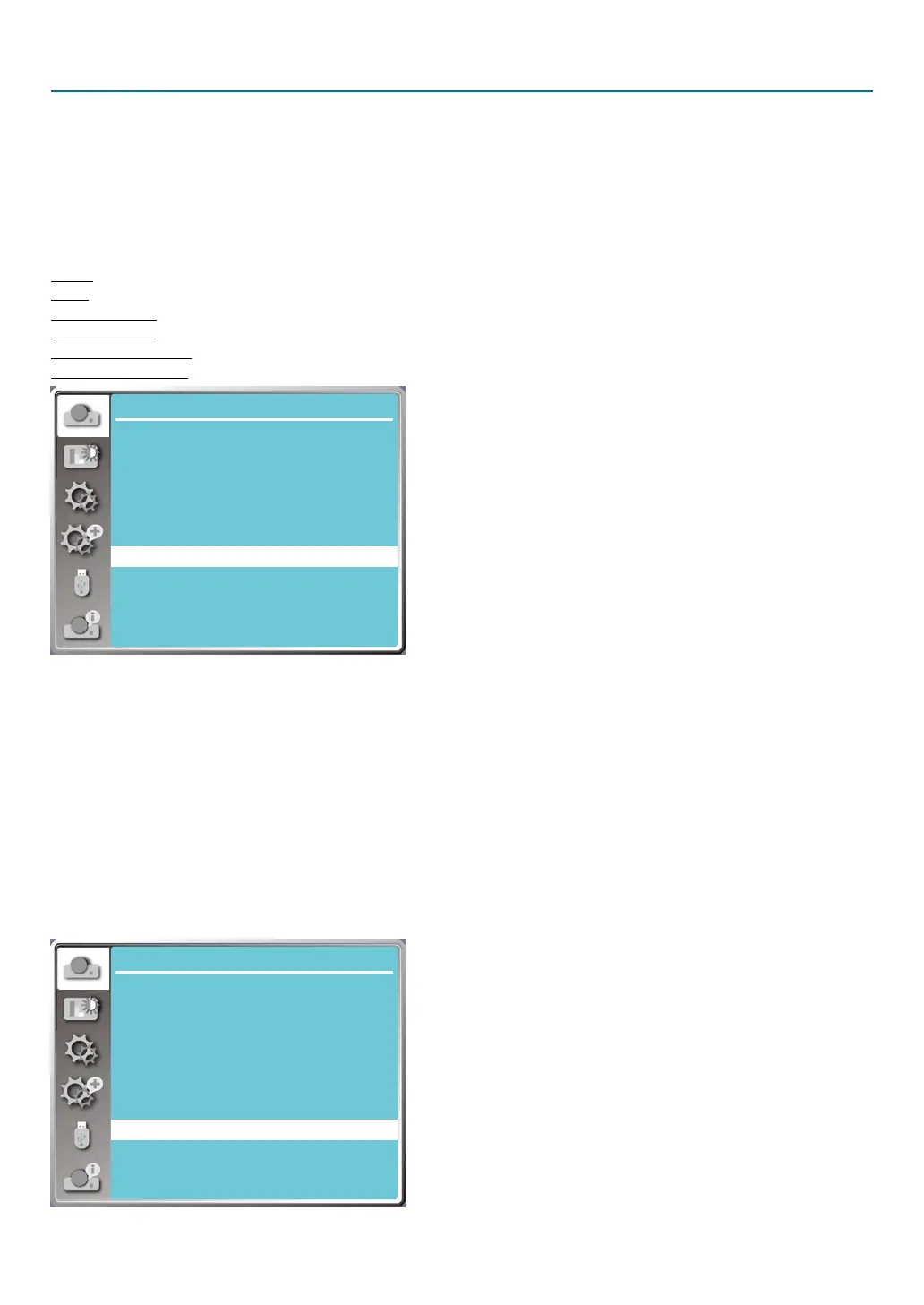

[Orientation]
Select this function to set the project way.
Please change the projection way, if the OSD displays inversely or reversedly.
Press < MENU > button on the remote controller or on the top control panel to display the OSD menu. Press ▲ ▼
button to select the Display menu ,then press <ENTER> or ▶ button.
1) Press ▲ ▼ button to select [Orientation] menu.
2) Press <ENTER> button.
3) Press ▲ ▼ button to switch.
Front: when the projector is installed on the table and projected in front of the screen.
Rear: when the projector is installed on the table and projected in rear of the screen (using translucent screen)
Ceiling / Front: when use the bracket to lift the projector (optional) in front of the screen.
Ceiling / Rear: when use the bracket to lift the projector (optional) in rear of the screen(using translucent screen).
Auto ceiling / Front: when the projector is projected in front of the screen.
Auto ceiling / Rear: when the projector is projected in rear of the screen.
H.size
...
Display
Auto PC adj.
Fine sync 0
0
0
0
H position
V position
Aspect Normal
Front
Upper left
Blue
Orientation
Menu position
Background display
System
[Menu position]
Select this function to set the OSD Menu position.
Press < MENU > button on the remote controller or on the top control panel to display the OSD menu. Press ▲ ▼
button to select the Display menu ,then press <ENTER> or ▶ button.
1) Press ▲ ▼ button to select [Menu position] menu.
2) Press <ENTER> button.
3) Press ▲ ▼ button to change menu position.
Upper left ......The menu display on the upper left corner of the screen.
Upper right ....The menu display on the upper right corner of the screen.
Center............The menu display in the center of the screen.
Lower left ......The menu display on the lower left corner of the screen.
Lower right ....The menu display on the lower right corner of the screen.
H.size
...
Display
Auto PC adj.
Fine sync 0
0
0
0
H position
V position
Aspect Normal
Front
Upper left
Blue
Orientation
Menu position
Background display
System

NEC MC453X Specifications

General

Native aspect ratio	4:3
Projection distance	0.9 - 10.9 m
Vertical scan range	50 - 120 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Contrast ratio (typical)	16000:1
Screen size compatibility	30 - 300 \
Projector native resolution	XGA (1024x768)
Keystone correction, horizontal	-30 - 30 °
RMS rated power	16 W
Number of built-in speakers	1
Placement	Ceiling, Floor
Product type	Standard throw projector
Product color	White
Cable lock slot type	Kensington
Lamp power	240 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Lamp power (economic mode)	150 W
Service life of light source	10000 h
Service life of light source (economic mode)	20000 h
Built-in display	-
Focus	Manual
Throw ratio	1.5 - 1.8:1
Focal length range	19.158 - 23.018 mm
Aperture range (F-F)	1.6 - 1.76
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	320 W
Power consumption (standby)	0.5 W
Power consumption (typical)	305 W
Power consumption (economy mode)	215 W
Power consumption (network standby)	2 W
Noise level	37 dB
Certification	UL, FCC Part15 Class B, CAN/CSA, ICES-003 Issue 6
Noise level (economic mode)	29 dB
Full HD	No
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Analog signal format system	Not supported
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA)
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100 Mbit/s
Storage temperature (T-T)	-10 - 50 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Remote control type	IR

Weight and Dimensions

Depth	261 mm
Width	345 mm
Height	108.4 mm
Weight	3300 g
Package depth	390 mm
Package width	450 mm
Package height	200 mm
Package weight	4700 g
