7. Installation and Connections
❶ Setting Up the Screen and the Projector

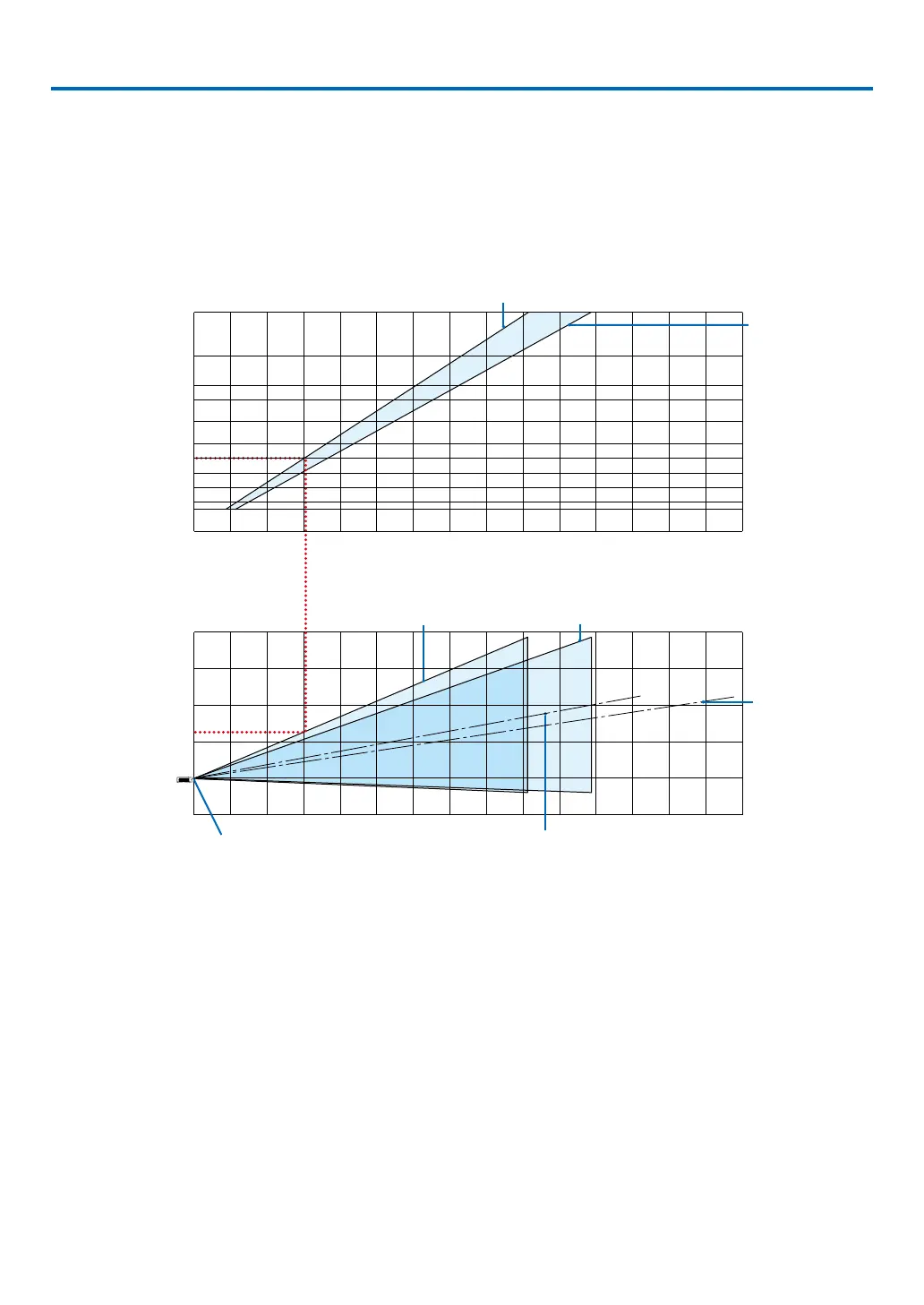

Use this to get a general idea of what the screen size will be when set in a certain position, what size screen you will
need, and what distance you will need to project images of the desired size.
The projection distance range at which focusing is possible is 0.9 m (for 30 inches) to 10.9 m (for 300 inches). Install
within this range.
[MC453X]
0123456789 10 11 12 13 14 15
12 13 14 15
-1
1
2
3
4
12345678 91011
40
30
60
80
100
120
150
180
200
240
300
0
(inch)
(m)
Screen size
Screen height from the center of the
projector lens
[Projection distance]
When zoom lever turned to telescopic
Screen center line
(telescopic)
Screen center line (wide)
When zoom lever turned to wide
Projector lens center
(m)
(m)
When zoom lever turned to wide
When zoom lever
turned to telescopic
[Reading the Table]
From the upper table on this page, to project wide images on a 100 screen, install at about 3.0 m from the front.
Also, from the lower table we can see that about 1.3 m are required from the projector’s lens center to the upper
edge of the screen. Use this to see whether or not enough height can be provided from the projector to the ceiling
and for installing the screen. The diagram shows the projection distance when the projector is installed horizontally.
