5. Using On-Screen Menu
Select the computer Signal format manually.
1. Press the MENU button on remote controller and the OSD displays. Press button to point to the Input icon,
press ▲ ▼ button or ENTER button and the Input menu displays.
2. Press ▲ ▼ button to select Signal format, then press ENTER button.
NOTE:
• The computer Signal format menu will be disabled once HDMI 1,HDMI 2, USB-A, LAN has been selected.
Video
Select this function to set resolution of input signal is compatible with the PC.
Set video input signal color Signal format or component input signal scanning mode.
1) Press ▲ ▼ button to select [Signal format] menu.
2) Press <ENTER> button.
3) Press ▲ ▼ button to select wanted Signal format.
Computer input signal
1024x768 60HZ, etc:display the compatible name input signal name.
Auto: When projector has no compatible input signal with one from connected PC, the PC can adjust automatically
to run and Auto appear on the Signal format. If the image is not projected out correctly, please adjust it to match
your computer manually.
- - - -: No signal input come from PC. Please check the connections.
Video input signal
AUTO: When projector select the input signal color Signal format automatically. set [PAL-M] or [PAL-N] manually .
[PAL]/[SECAM]/[NTSC]/[NTSC4.43]/[PAL-M]/[PAL-N]/[PAL60]:When projector can not display images correctly in
[AUTO], please set input signal color Signal format manually.
Display
System
AUTO
PAL
SECAM
NTSC
NTSC4.43
PAL.M
PAL.N
PAL60

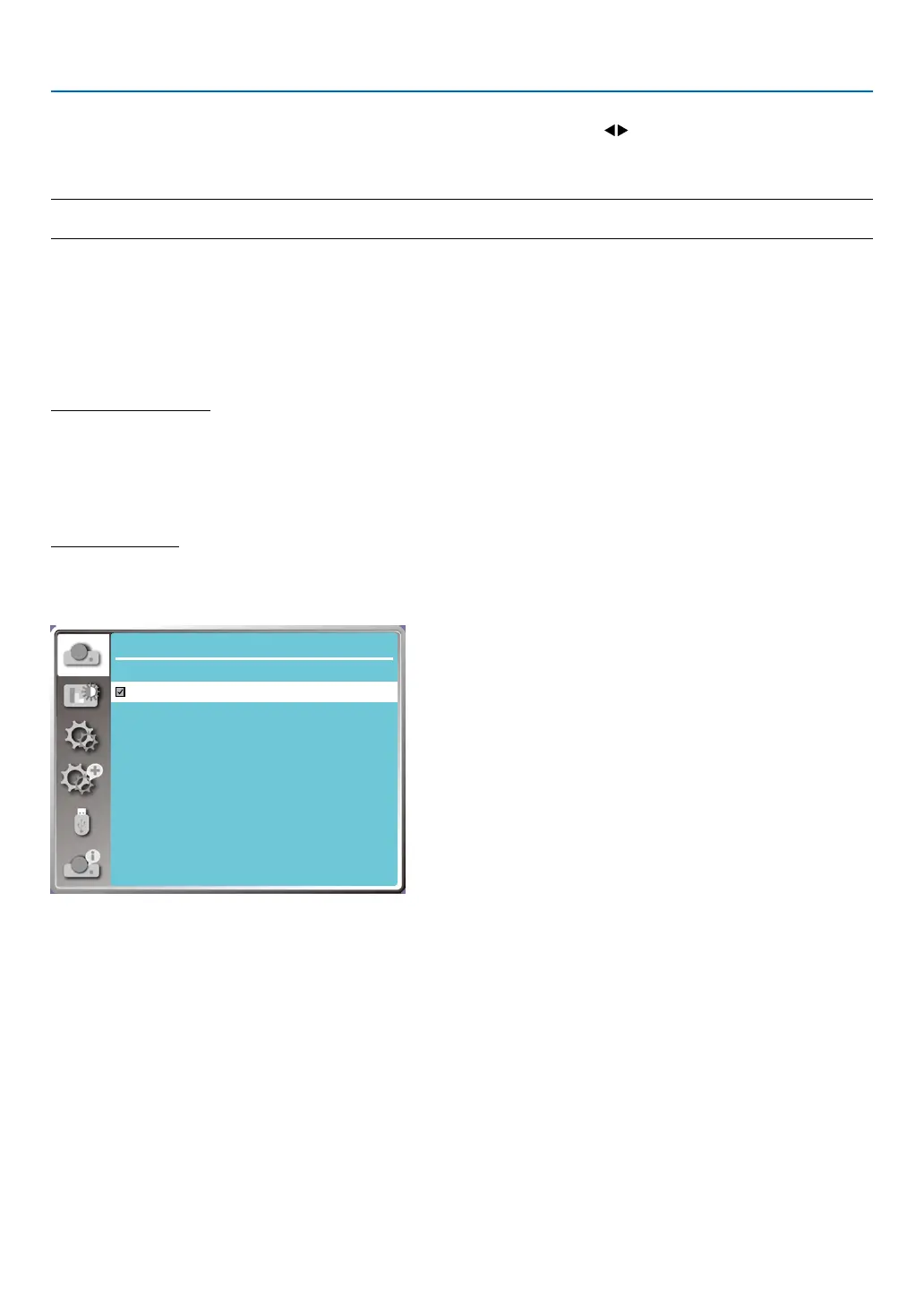

• Signal format menu, when Video input.

NEC MC453X Specifications

General

Native aspect ratio	4:3
Projection distance	0.9 - 10.9 m
Vertical scan range	50 - 120 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Contrast ratio (typical)	16000:1
Screen size compatibility	30 - 300 \
Projector native resolution	XGA (1024x768)
Keystone correction, horizontal	-30 - 30 °
RMS rated power	16 W
Number of built-in speakers	1
Placement	Ceiling, Floor
Product type	Standard throw projector
Product color	White
Cable lock slot type	Kensington
Lamp power	240 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Lamp power (economic mode)	150 W
Service life of light source	10000 h
Service life of light source (economic mode)	20000 h
Built-in display	-
Focus	Manual
Throw ratio	1.5 - 1.8:1
Focal length range	19.158 - 23.018 mm
Aperture range (F-F)	1.6 - 1.76
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	320 W
Power consumption (standby)	0.5 W
Power consumption (typical)	305 W
Power consumption (economy mode)	215 W
Power consumption (network standby)	2 W
Noise level	37 dB
Certification	UL, FCC Part15 Class B, CAN/CSA, ICES-003 Issue 6
Noise level (economic mode)	29 dB
Full HD	No
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Analog signal format system	Not supported
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA)
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100 Mbit/s
Storage temperature (T-T)	-10 - 50 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Remote control type	IR

Weight and Dimensions

Depth	261 mm
Width	345 mm
Height	108.4 mm
Weight	3300 g
Package depth	390 mm
Package width	450 mm
Package height	200 mm
Package weight	4700 g
