NEC MultiSync FP1350 - Page 27

4-7
REMARK
SYMBOL
Dgauss the PLATE SHIELDING
(CRT) ASSY.
REMARK
SYMBOL

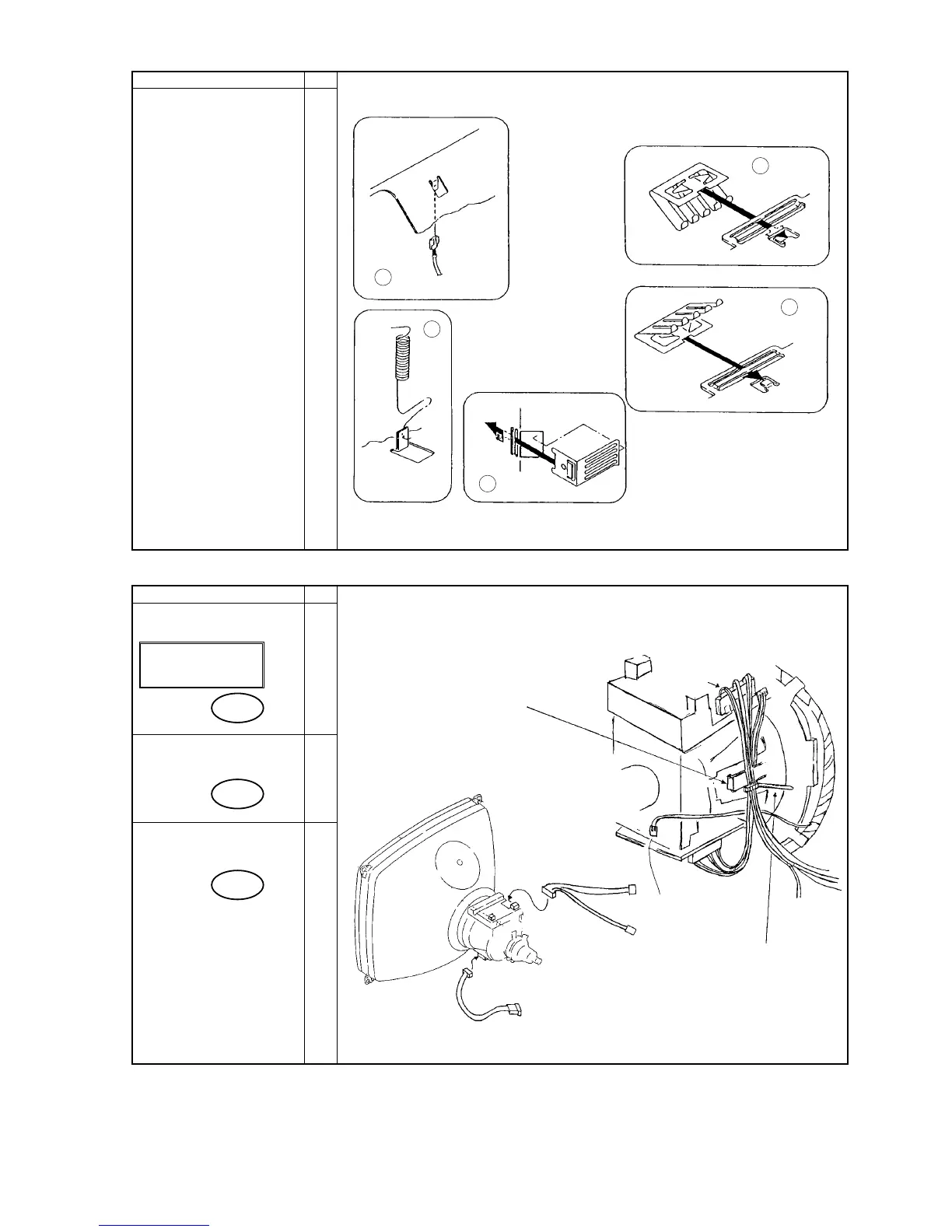

Insert CN-DY and CN-SC1 to
CRT’s DY.
143
179
180
Tie CN-DY and DY’s wirs with
BAND (L=100) as persketch.
176
Pass through the CN-ZDY bet
ween DY and DY’s connectors.
a
b
c
d
e
N
ote:
Don’t pull out CN-DY if
you insert it once.
DY’s hook
CN-DY
CN-ZDY
176
Tir wires with BAND
under the DY’s hook
(Unnecessary tot cut.)
179
143
180
