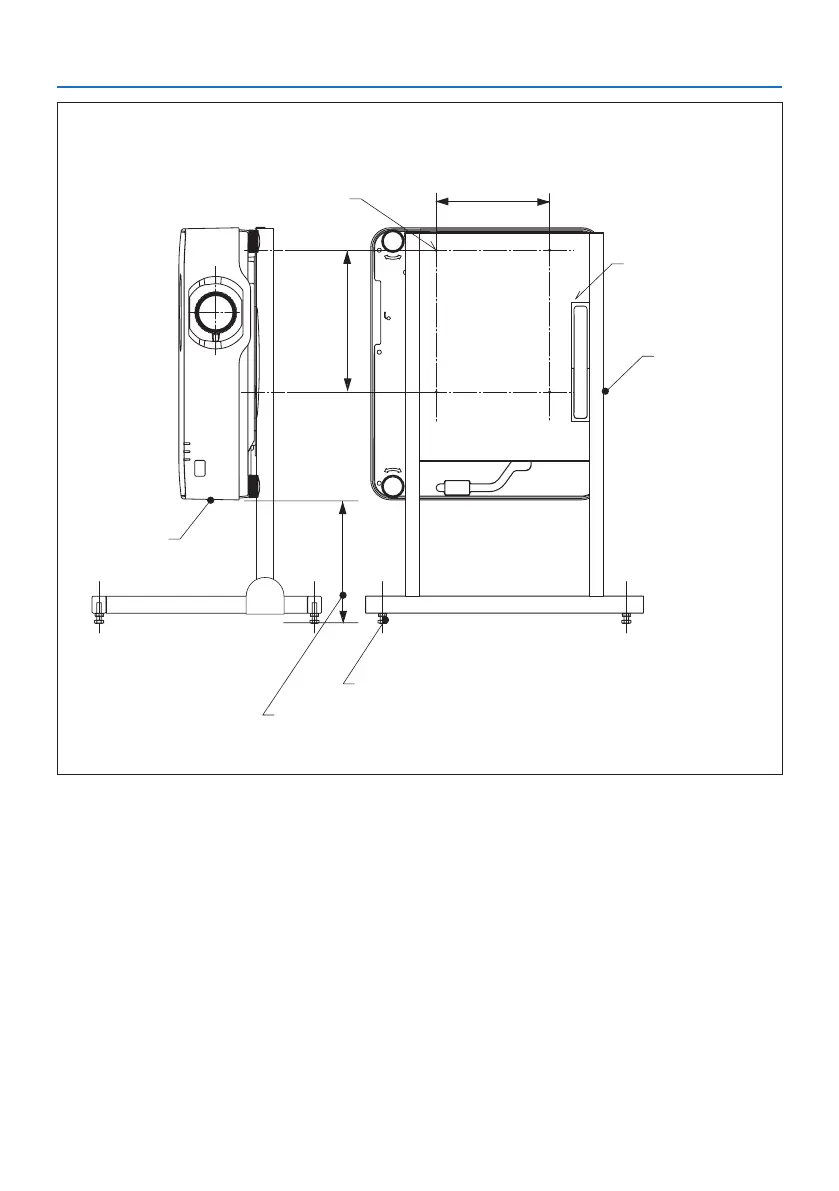

Reference drawings
* The drawing showing the dimensional requirements is not an actual stand design drawing.
[Side View][Front View]
Screw holes for 4 - M4 use
Notch
200
Horizontal adjuster
Installation facing the exhaust vent downward, maintain a distance of at
least 200 mm between the projector Exhaust vent and the oor.
(Unit: mm)
250
Intake vent
Exhaust Vent
