NEC P547UL User Manual

9. Appendix
135

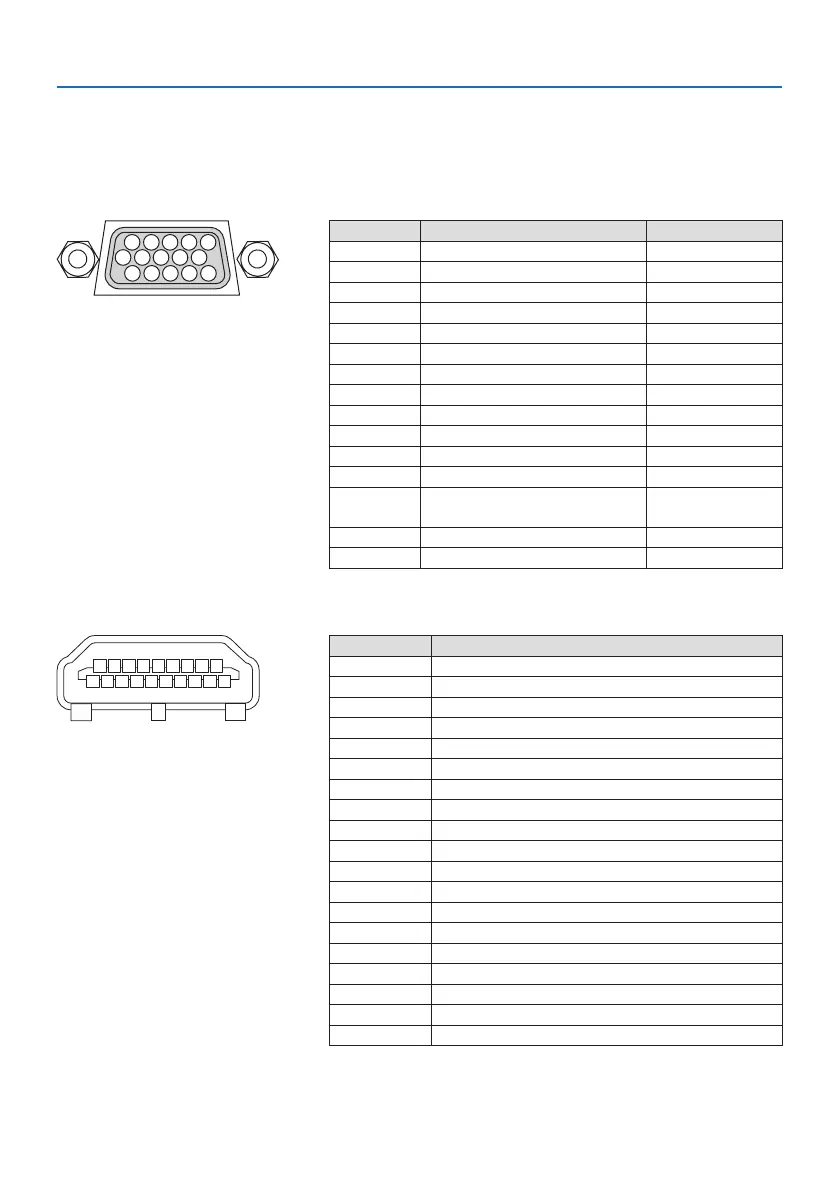

9-5. Pin assignments and signal names of main terminals
COMPUTER IN Terminal (Mini D-Sub 15 Pin)
Connection and signal level of each pin
51423
10
11 12 13 14 15
6978
Signal Level
Video signal : 0.7Vp-p (Analog)
Sync signal : TTL level
Pin No. RGB Signal (Analog) YCbCr Signal
1 Red Cr
2 Green or Sync on Green Y
3 Blue Cb
4 Ground
5 Ground
6 Red Ground Cr Ground
7 Green Ground Y Ground
8 Blue Ground Cb Ground
9 Hot Plug
10 Sync Signal Ground
11 No Connection
12 Bi-directional DATA (SDA)
13 Horizontal Sync or Composite
Sync
14 Vertical Sync
15 Data Clock
HDMI 1 IN/HDMI 2 IN Terminal (Type A)
1 357911 13 15 17 19
246810 12 14 16 18
Pin No. Signal
1 TMDS Data 2+
2 TMDS Data 2 Shield
3 TMDS Data 2−
4 TMDS Data 1+
5 TMDS Data 1 Shield
6 TMDS Data 1−
7 TMDS Data 0+
8 TMDS Data 0 Shield
9 TMDS Data 0−
10 TMDS Clock +
11 TMDS Clock Shield
12 TMDS Clock−
13 CEC
14 Disconnection
15 SCL
16 SDA
17 DDC/CEC grounding
18 +5 V power supply
19 Hot plug detection

NEC P547UL Specifications

General

Native aspect ratio	16:10
Projection distance	0.8 - 12.9 m
Projection technology	3LCD
Contrast ratio (typical)	500000:1
Screen size compatibility	30 - 300 \
Projector native resolution	WUXGA (1920x1200)
Keystone correction, horizontal	-30 - 30 °
Light source type	Laser
Service life of light source	20000 h
Focus	Manual
Focal length range	17.2 - 27.7 mm
Aperture range (F-F)	1.5 - 2.1
Vertical lens shift range	0 - 60 %
Horizontal lens shift range	-29 - 29 %
3D	No
Video color modes	Presentation
Analog signal format system	NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL M
Supported graphics resolutions	1920 x 1200 (WUXGA), 3840 x 2160
Composite video in	0
HDMI connector type	Full-size
Serial interface type	RJ-45, RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Noise level	26 dB
Certification	CE; EAC; ErP; RoHS; TUEV, TÜV
Projection modes	Ceiling, Front
Number of OSD languages	30
Noise level (economic mode)	22 dB
RMS rated power	20 W
Placement	Ceiling, Desktop
Product type	Standard throw projector
Product color	White
Market positioning	Home cinema
Cable lock slot type	Kensington
Power source	AC
Power consumption (standby)	1.6 W
Power consumption (typical)	293 W
Power consumption (economy mode)	220 W
Recommended gender	Any gender
Storage temperature (T-T)	-10 - 50 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Remote control type	IR

Weight and Dimensions

Depth	407 mm
Width	480 mm
Height	122 mm
Weight	9700 g
