5. Making Connections
86
5-2. Connecting to a DVD player and other AV devices
Connecting Component Input
Connection for component signal. Signal from the color dierence signal output terminal on DVD
players (DVD video output) and the YPbPr output terminal on the Hi-vision video can be projected.
Recommend to connect the terminal for audio output on the DVD player to the audio components.

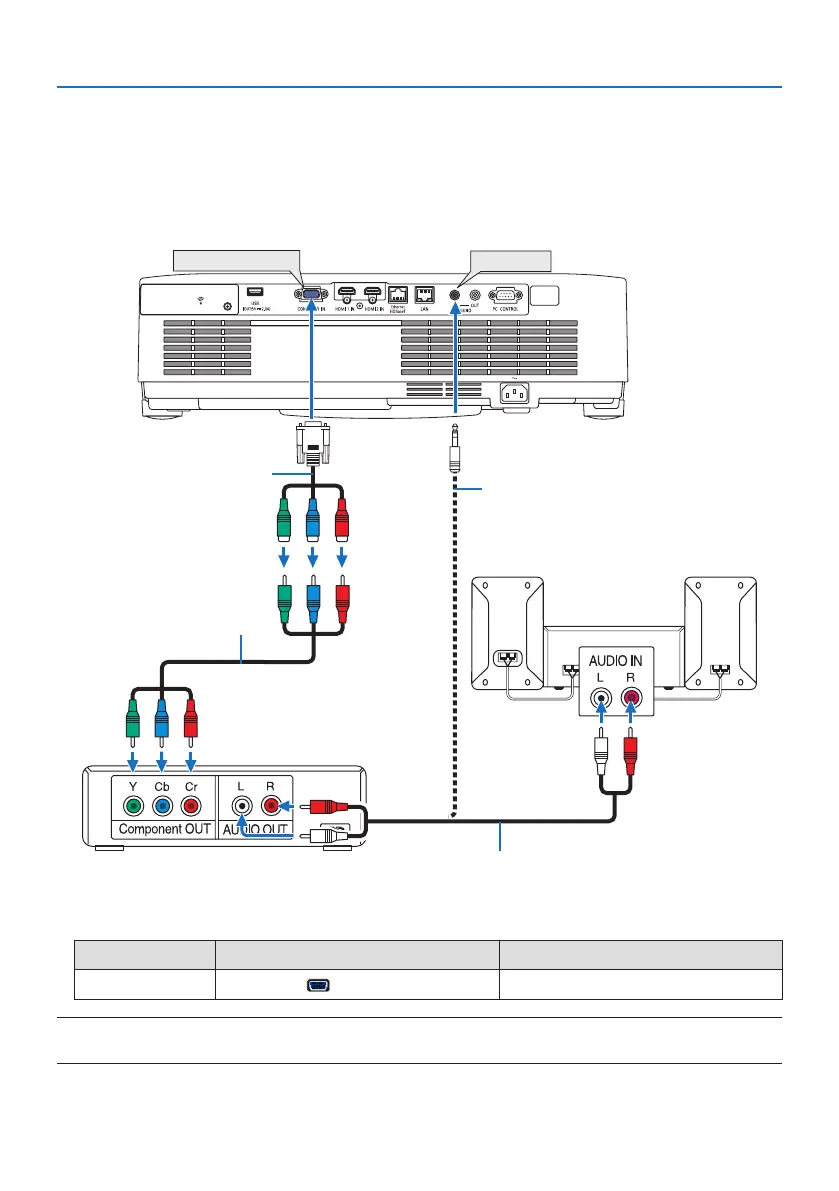

COMPUTER IN
AUDIO IN
15-pin - to - RCA (female) × 3
cable adapter (ADP-CV1E)
Stereo mini plug - to - RCA audio cable (not
supplied)
Component video RCA × 3
cable (not supplied)
Audio cable (not supplied)
DVD player
Audio Equipment
• Select the source name for its appropriate input terminal after turning on the projector.
Input terminal INPUT button on the projector cabinet Button on the remote control
COMPUTER IN
COMPUTER
COMPUTER
NOTE:
• Refer to your DVD player’s owner’s manual for more information about your DVD player’s video output requirements.

NEC P547UL Specifications

General

Native aspect ratio	16:10
Projection distance	0.8 - 12.9 m
Projection technology	3LCD
Contrast ratio (typical)	500000:1
Screen size compatibility	30 - 300 \
Projector native resolution	WUXGA (1920x1200)
Keystone correction, horizontal	-30 - 30 °
Light source type	Laser
Service life of light source	20000 h
Focus	Manual
Focal length range	17.2 - 27.7 mm
Aperture range (F-F)	1.5 - 2.1
Vertical lens shift range	0 - 60 %
Horizontal lens shift range	-29 - 29 %
3D	No
Video color modes	Presentation
Analog signal format system	NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL M
Supported graphics resolutions	1920 x 1200 (WUXGA), 3840 x 2160
Composite video in	0
HDMI connector type	Full-size
Serial interface type	RJ-45, RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Noise level	26 dB
Certification	CE; EAC; ErP; RoHS; TUEV, TÜV
Projection modes	Ceiling, Front
Number of OSD languages	30
Noise level (economic mode)	22 dB
RMS rated power	20 W
Placement	Ceiling, Desktop
Product type	Standard throw projector
Product color	White
Market positioning	Home cinema
Cable lock slot type	Kensington
Power source	AC
Power consumption (standby)	1.6 W
Power consumption (typical)	293 W
Power consumption (economy mode)	220 W
Recommended gender	Any gender
Storage temperature (T-T)	-10 - 50 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Remote control type	IR

Weight and Dimensions

Depth	407 mm
Width	480 mm
Height	122 mm
Weight	9700 g
