125

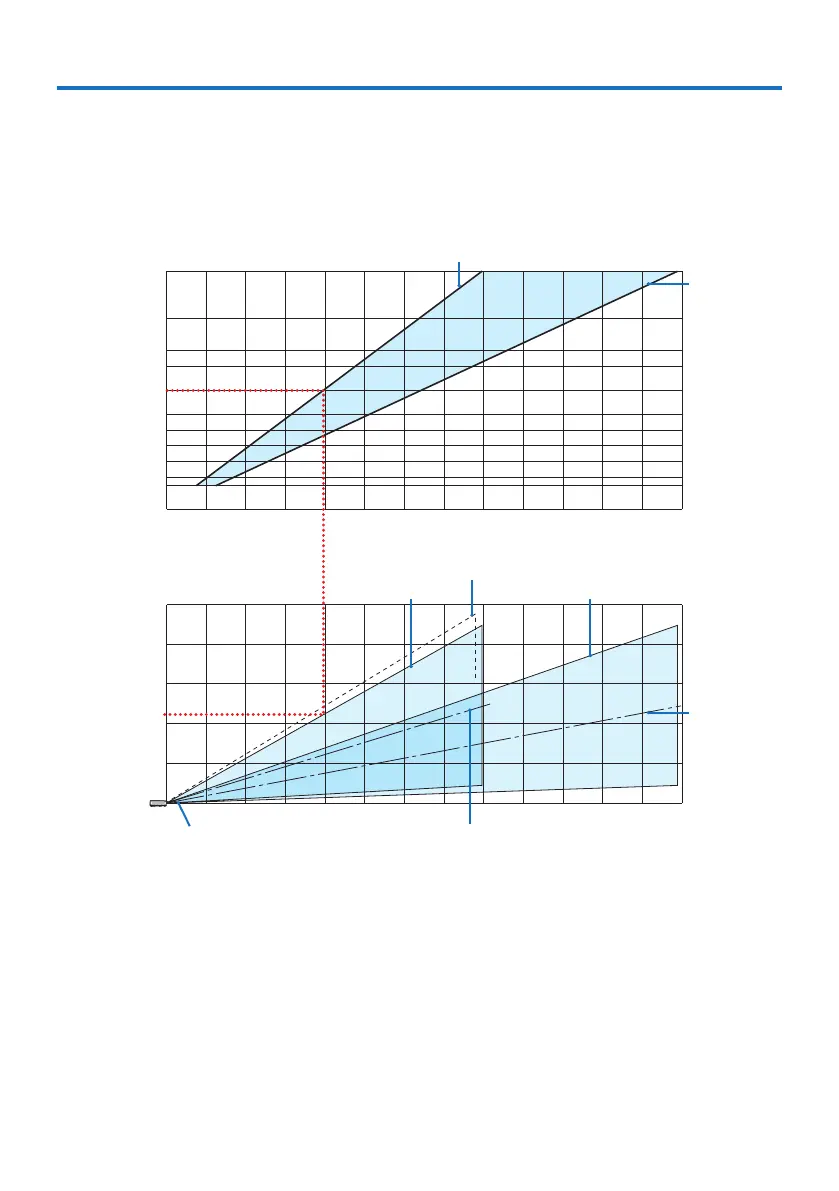

9-1. Setting Up the Screen and the Projector
Use this to get a general idea of what the screen size will be when set in a certain position, what
size screen you will need, and what distance you will need to project images of the desired size.
The projection distance range at which focusing is possible is 0.78 m to 12.89 m. Install within this
range.
0123 5678910 11 12 13
12 13
0
1
2
3
4
5
12345678910 11
40
30
60
80
100
120
150
180
200
240
300
4
Screen sizeScreen height from the center of the projector lens
[Projection distance]
When zoom lever turned to wide
With tilt feet tilted 4° when set to wide
When zoom lever turned to telescopic
When zoom
lever turned to
telescopic
Screen center line
(telescopic)
When zoom lever
turned to wide
Projector lens center Screen center line (wide)
(m)
(m)
(inch)
(m)
* The gures indicated for “height of screen from projector lens center” on the projection distance table are
for a lens shift of 60% V.
Reading the Table
From the upper table on this page, to project wide images on a 150 screen, install at about 4.0 m
from the front.
Also, from the lower table we can see that about 2.2 m are required from the projector’s lens center
to the upper edge of the screen. Use this to see whether or not enough height can be provided
from the projector to the ceiling and for installing the screen. The diagram shows the projection
distance when the projector is installed horizontally. The projected image can be moved up and
down, left and right using the lens shift function. (→ page 23)
9. Appendix
To Next Page
