NEC P547UL User Manual

5. Making Connections
85

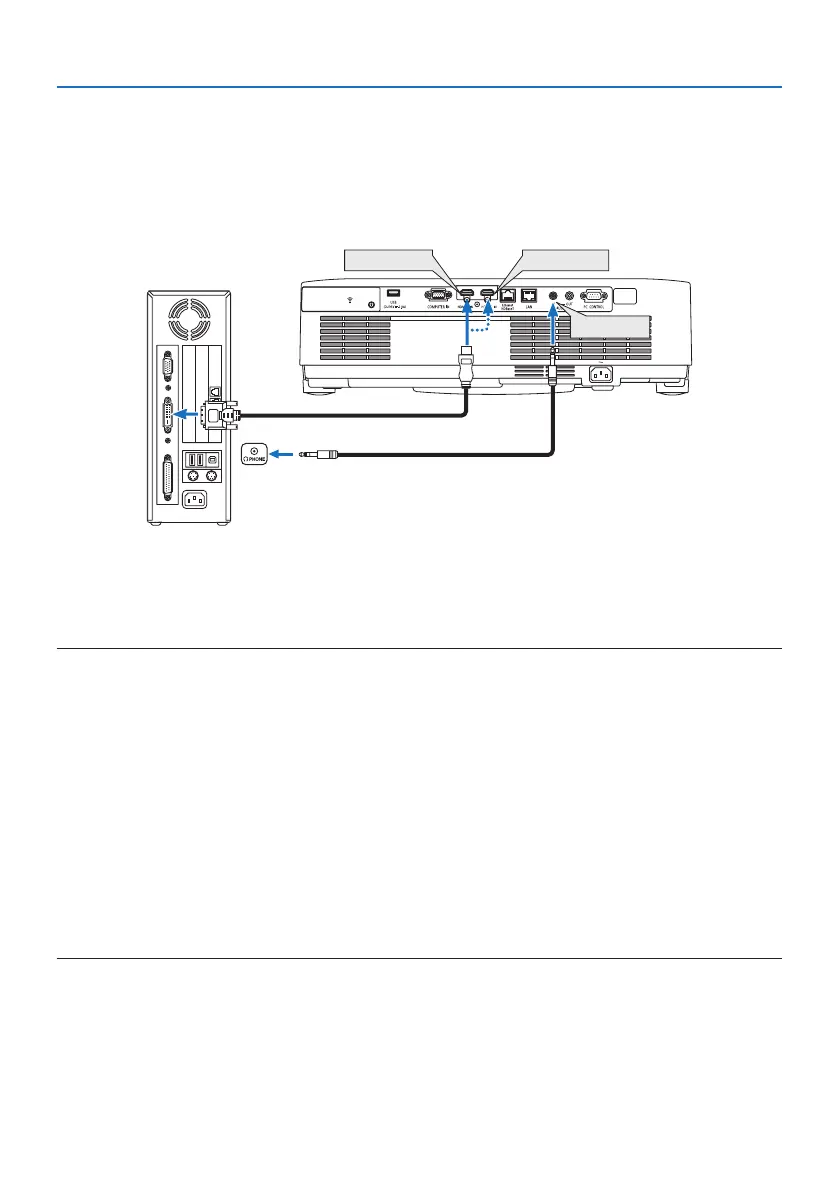

Cautions when using a DVI signal
• When the computer has a DVI output terminal, use a commercially available converter cable
to connect the computer to the projector’s HDMI 1 IN or HDMI 2 IN terminal (only digital video
signals can be input).
- Only digital video signals can be input.
HDMI 1 IN
HDMI 2 IN
AUDIO IN
Connect the audio output of the computer to the projector’s AUDIO IN terminal. In this case,
switch the [HDMI1] or [HDMI2] setting at [SETUP] → [OPTIONS(1)] → [AUDIO SELECT] the on-
screen menu to [COMPUTER]. (→ page 75)
NOTE:
When Viewing a DVI Digital Signal
• Turn o the power of the computer and projector before connecting.
• When a video deck is connected via a scan converter, etc., the display may not be correct during fast-forwarding and rewinding.
• Use a DVI-to-HDMI cable compliant with DDWG (Digital Display Working Group) DVI (Digital Visual Interface) revision 1.0 standard.
The cable should be within 197"/5 m long.
• Turn o the projector and the PC before connecting the DVI-to-HDMI cable.
• To project a DVI digital signal: Connect the cables, turn the projector on, then select the HDMI input. Finally, turn on your PC.
Failure to do so may not activate the digital output of the graphics card resulting in no picture being displayed. Should this happen,
restart your PC.
• Do not disconnect the DVI-to-HDMI cable while the projector is running. If the signal cable has been disconnected and then recon-
nected, an image may not be correctly displayed. Should this happen, restart your PC.
• The COMPUTER video input terminals support Windows Plug and Play.
• A Mac signal adapter (commercially available) may be required to connect a Mac computer.

NEC P547UL Specifications

General

Native aspect ratio	16:10
Projection distance	0.8 - 12.9 m
Projection technology	3LCD
Contrast ratio (typical)	500000:1
Screen size compatibility	30 - 300 \
Projector native resolution	WUXGA (1920x1200)
Keystone correction, horizontal	-30 - 30 °
Light source type	Laser
Service life of light source	20000 h
Focus	Manual
Focal length range	17.2 - 27.7 mm
Aperture range (F-F)	1.5 - 2.1
Vertical lens shift range	0 - 60 %
Horizontal lens shift range	-29 - 29 %
3D	No
Video color modes	Presentation
Analog signal format system	NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL M
Supported graphics resolutions	1920 x 1200 (WUXGA), 3840 x 2160
Composite video in	0
HDMI connector type	Full-size
Serial interface type	RJ-45, RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Noise level	26 dB
Certification	CE; EAC; ErP; RoHS; TUEV, TÜV
Projection modes	Ceiling, Front
Number of OSD languages	30
Noise level (economic mode)	22 dB
RMS rated power	20 W
Placement	Ceiling, Desktop
Product type	Standard throw projector
Product color	White
Market positioning	Home cinema
Cable lock slot type	Kensington
Power source	AC
Power consumption (standby)	1.6 W
Power consumption (typical)	293 W
Power consumption (economy mode)	220 W
Recommended gender	Any gender
Storage temperature (T-T)	-10 - 50 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Remote control type	IR

Weight and Dimensions

Depth	407 mm
Width	480 mm
Height	122 mm
Weight	9700 g
