NEC PASOLINK - Odu Description and Operation; Component Module Arrangement

GENERAL ROI-S04605
1-2
1.1 Equipment Composition
The ODU is provided with modules which are connected directly or by
coaxial cable as shown in Table 1-1.
Note: * Location numbers are keyed to those in Fig. 1-2.
Note: Location numbers are keyed to those in Table 1-1.

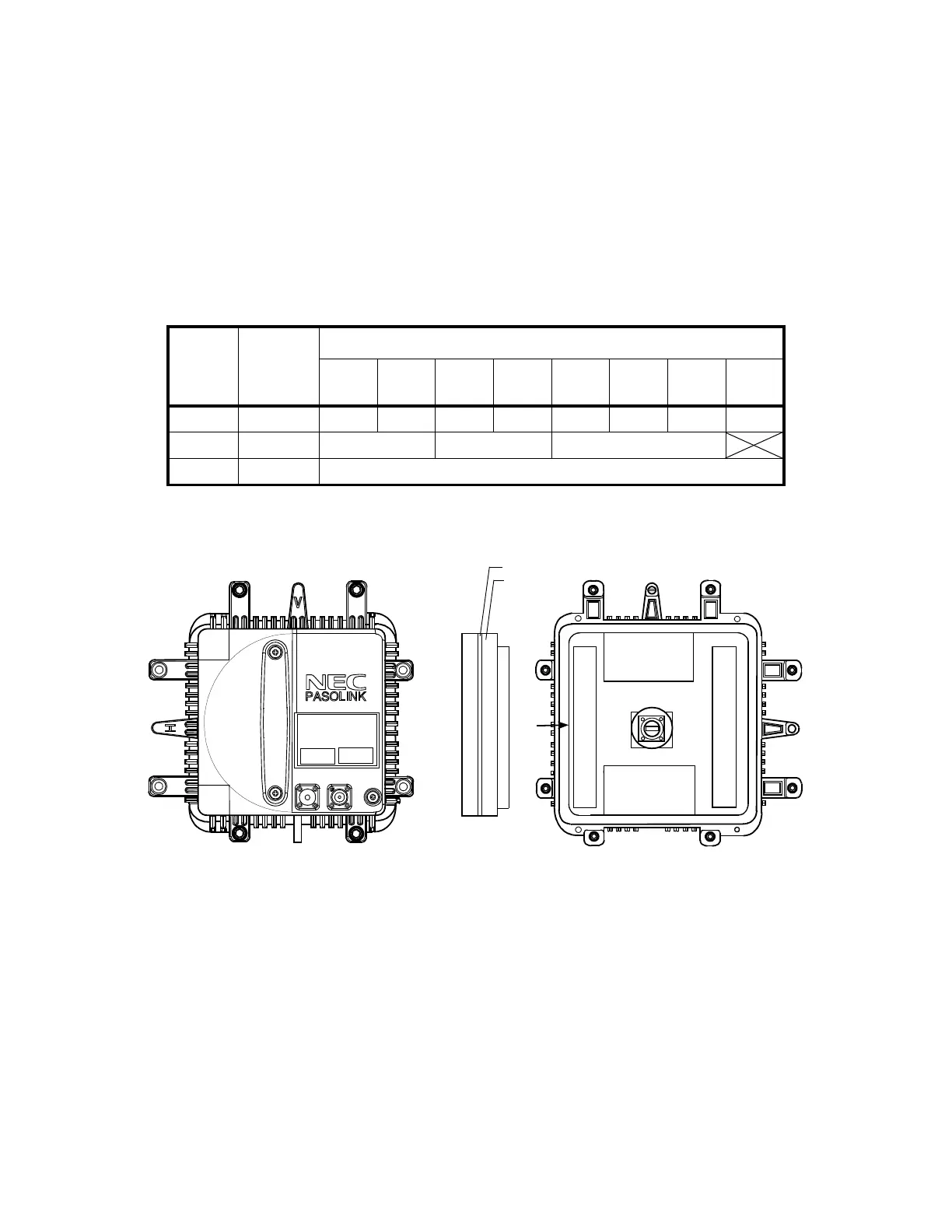

Fig. 1-2 Component Module Arrangement
Table 1-1 Component Module Arrangement
LOCATION
NO. *
MODULE
APPLICATION
7 GHz
H0738( )
8 GHz
H0739( )
13 GHz
H0330( )
15 GHz
H0331( )
18 GHz
H0332( )
23 GHz
H0333( )
26 GHz
H0334( )
38 GHz
H0335( )
1 RF CKT H0722() H0723() H0360( ) H0361( ) H0362( ) H0363( ) H0364 ) H0365( )
2 IF CKT H0721() H0323( ) H0321( )
3 PS H0390()
FG
IFL
MON
RX LEV
1
3
A
View A
2 (IF CKT)
1 (RF CKT)
O
du Description and Operation
