Laser light radiation range

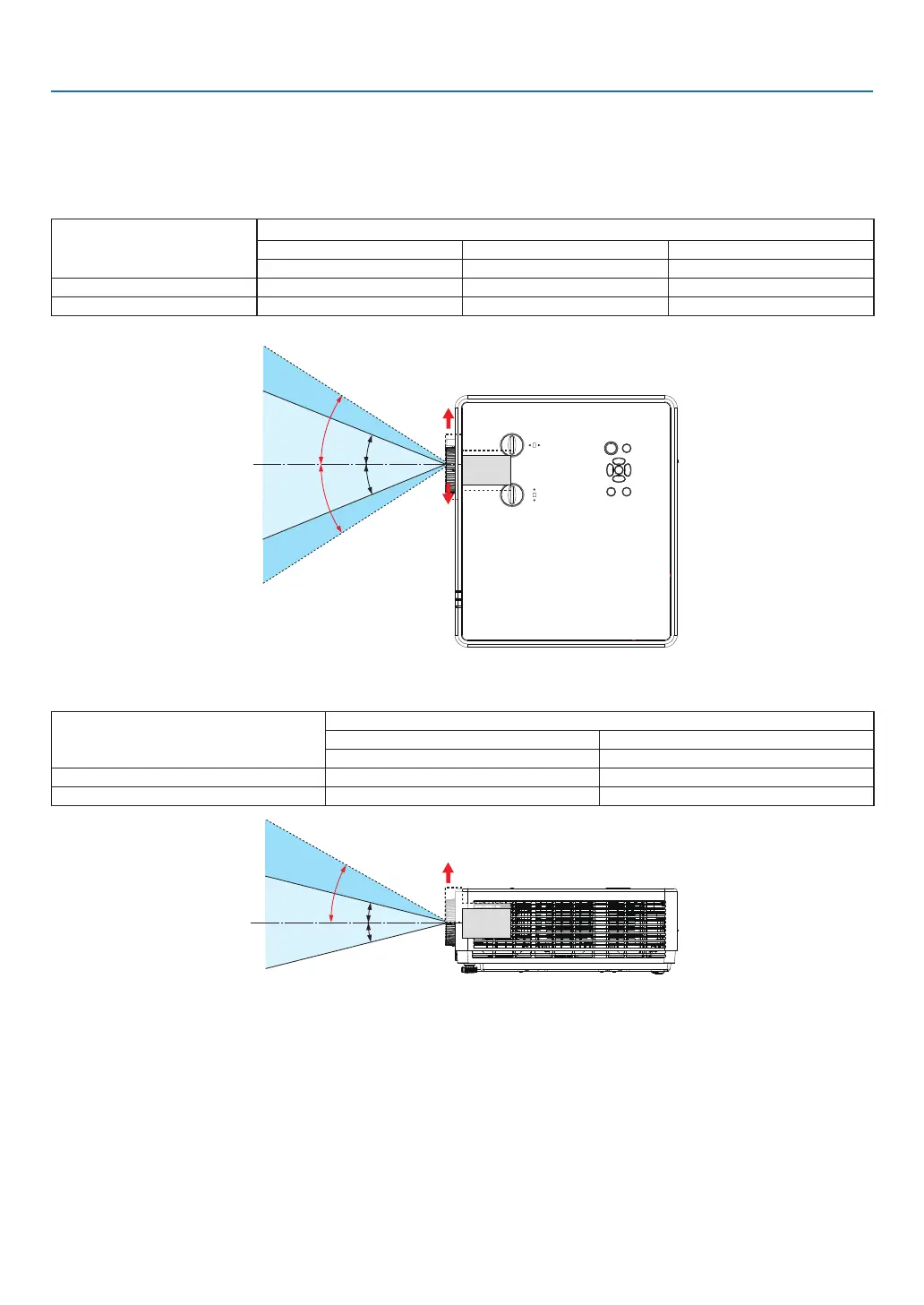

The figure below shows the maximum radiation range of the laser light.
[PE506UL/PE506WL]
Horizontal angle (unit: degree)
Zoom
Lens position
Right most Center (Reference value) Left most
HR HC HL
Wide 33.0 22.3 33.0
Tele 21.8 14.2 21.8
Vertical angle (unit: degree)
Zoom
Lens position
Upper most Center (Reference value)
VU VC
Wide 29.5 14.4
Tele 19.2 9.0
HC
HC
HL
HR
VU
VC
VC
Upper
Left
Right
