10. Appendix

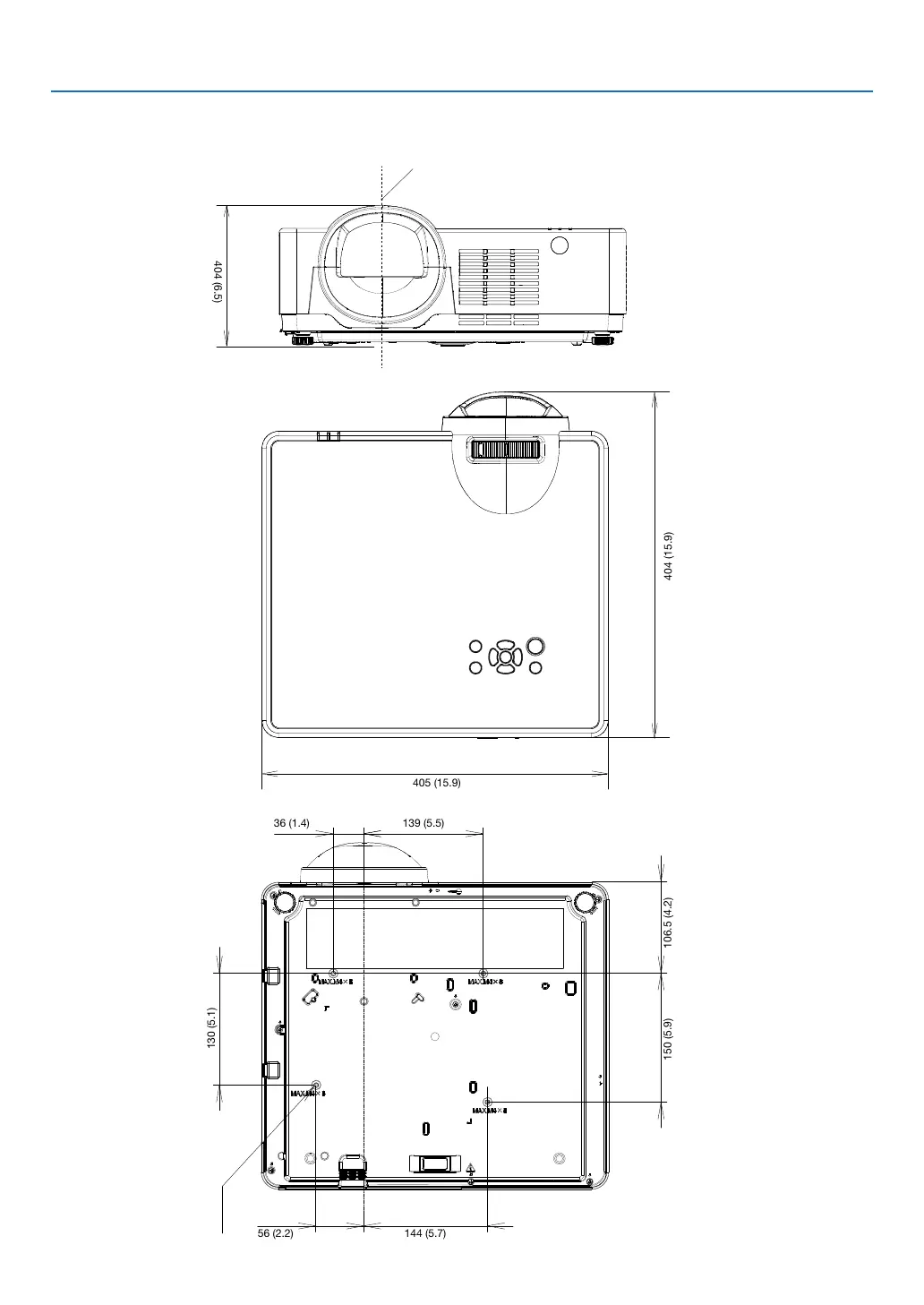

Unit: mm (inch)
[PE456USL/PE456WSL]
405 (15.9)
404 (15.9)
150 (5.9)
130 (5.1)
106.5 (4.2)
139 (5.5)
36 (1.4)
404 (6.5)
144 (5.7)
56 (2.2)
4-M4*10 [0.16-M0.16*0.4]
Lens center
405 (15.9)
404 (15.9)
150 (5.9)
130 (5.1)
106.5 (4.2)
139 (5.5)
36 (1.4)
404 (6.5)
144 (5.7)
56 (2.2)
4-M4*10 [0.16-M0.16*0.4]
Lens center
405 (15.9)
404 (15.9)
150 (5.9)
130 (5.1)
106.5 (4.2)
139 (5.5)
36 (1.4)
404 (6.5)
144 (5.7)
56 (2.2)
4-M4*10
[0.16-M0.16*0.4]
Lens center
