P285U00
05 - 2007
IntroductIon
This “Programming Manual” is a very useful tool for those operators who want to get the most out of the
potential of the installed software and know in detail all of the software available functions.
This document is available in PDF format in the Reserved Area of our internet site
www.nwglobalvending.com or, on request, through our after-sales service.
The Manual is divided into 2 parts:
The First Part contains the information concerning the Filler Menu.
The Second Part contains the information concerning the Technician Menu.
The operations described can modify the functioning cycles, therefore they must be carried out only by per-
sonnel who have the specic knowledge of the machine functioning from a point of view of electrical safety
and health regulations.
IntroductIon
The machines can function in 3 different operating modes:
- Normal Vending
- Filler Menu
- Technician Menu
normal vendIng mode
In Normal Vending mode it is possible to perform some operations with the door closed, keeping pressed the
wash button “
” for more than 2 seconds or the “ ” button (see gure) if the wash button is not present.

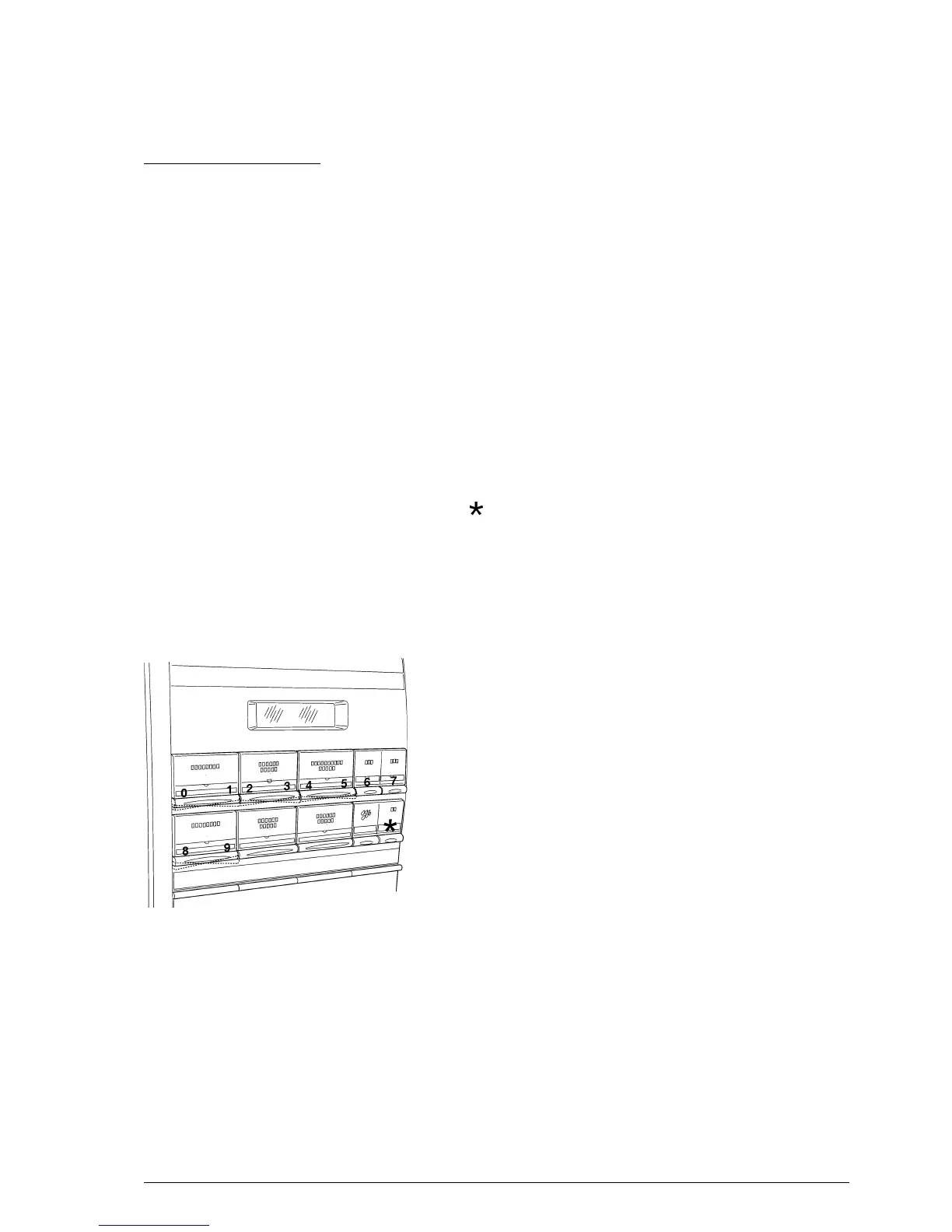

The push-buttons take on numeric values as shown in the gure:
The machine waits a few seconds for the entry of a 5-digit
code that will allow the following operations if enabled in the
Password option within the Technician Menu:
- Reset counters
- Jug Facility
- Free Vending
- Keypad lock
- Wash
- Test selections
- Filter reset
- Waste tray reset
By default all passwords are disabled.
