2.1.2 Panelized PCB origin (SMD1 coordinate)

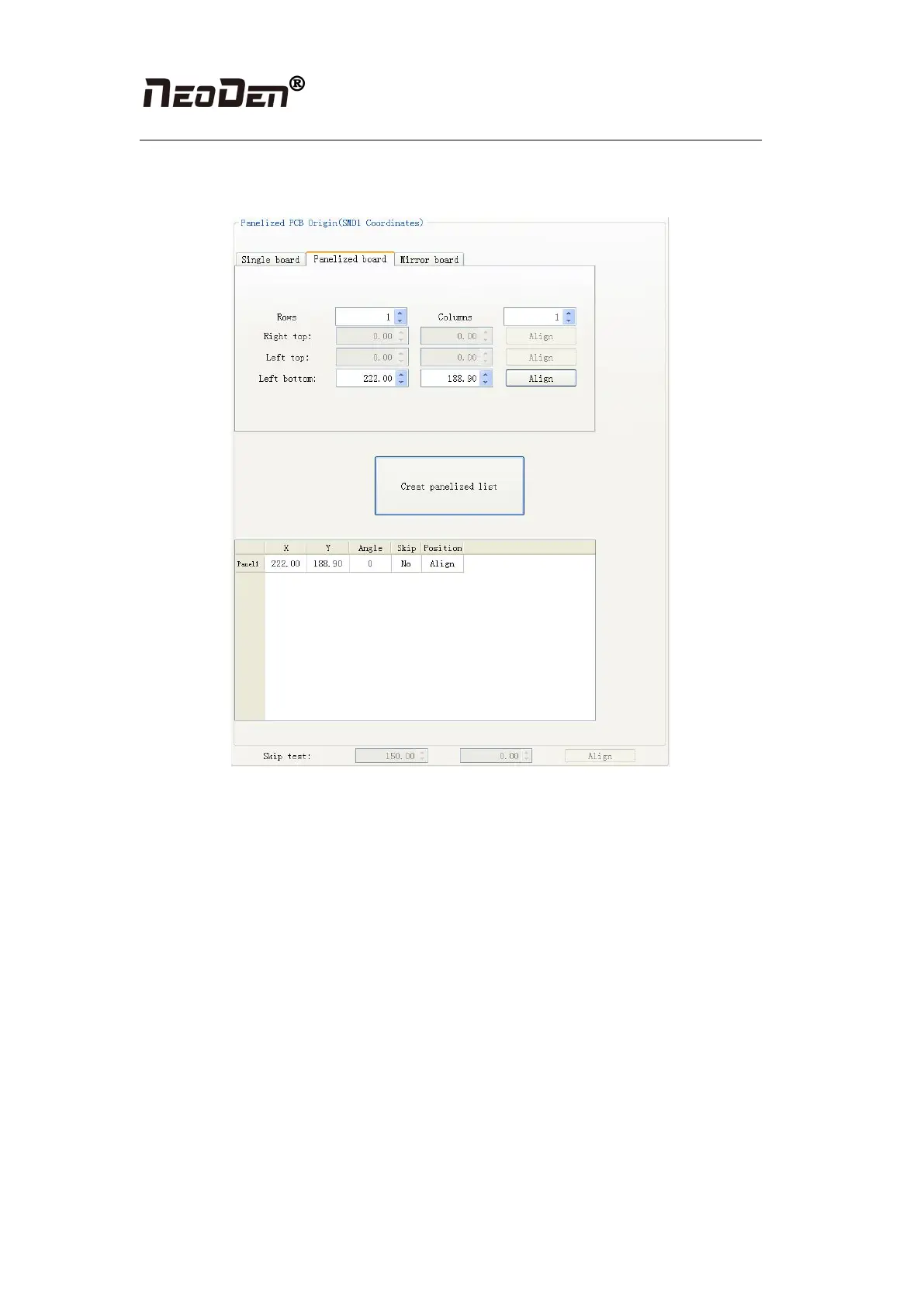

Figure (2.1.2)
Function: This is mainly to determine the first component on single or panelized PCB of
manual program or imported file. The principle is to collect and calculate the data of each
board’s relative spacing, in order to achieve the calculation of the real coordinate.
Note: the panelized PCB origin (SMD1 coordinates) and panelized list setting of the
manual program mode is the same as file import mode.
2.1.2.1 Single board
Click “single board setting”, you will see the “align” button of the SMD1 position that means
the first component on the component setup. Click “align” to enter the vision align interface,
we need find the first component that on the component list, normally we choose the center of
the component, see figure (2.1.2.1)
