2.3.1 Feeder configuration
NeoDen7 adopt pneumatic feeders, you can setup the pick position and test in advance.
Figure (2.4.1-1)

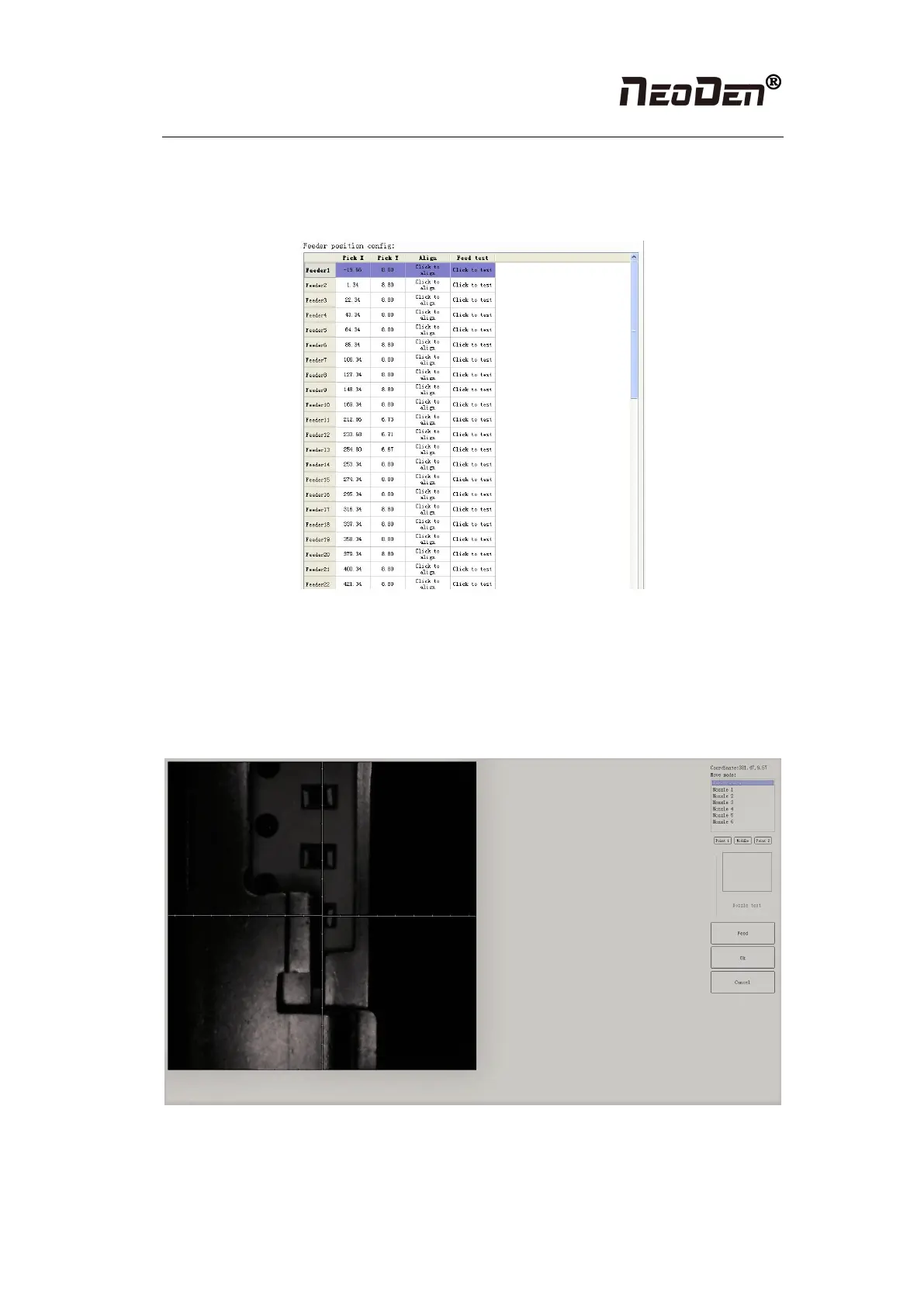

shown as figure (2.4.1-1): parameters setting for all feeders.
First list on left side is feeder No.
X, Y parameters can set feeders’ pick position.
Click button ‘click of align’ in the list to align the pick position, shown as picture (2.4.1-2).
Align the position to center of component (edge of tablet), then save.
Figure (2.4.1-2)
Picture (2.4.1-2) Nozzle testing: Drag the nozzle down by the slider to the aligned position (to
check if the nozzle locates in the center of the component)
Adjust the nozzle height: Drag the sideward slider to control the nozzle height (height values
