NeoDen 7 - Operation Flow Chart

Hangzhou NeoDen Technology Co.,Ltd.
3

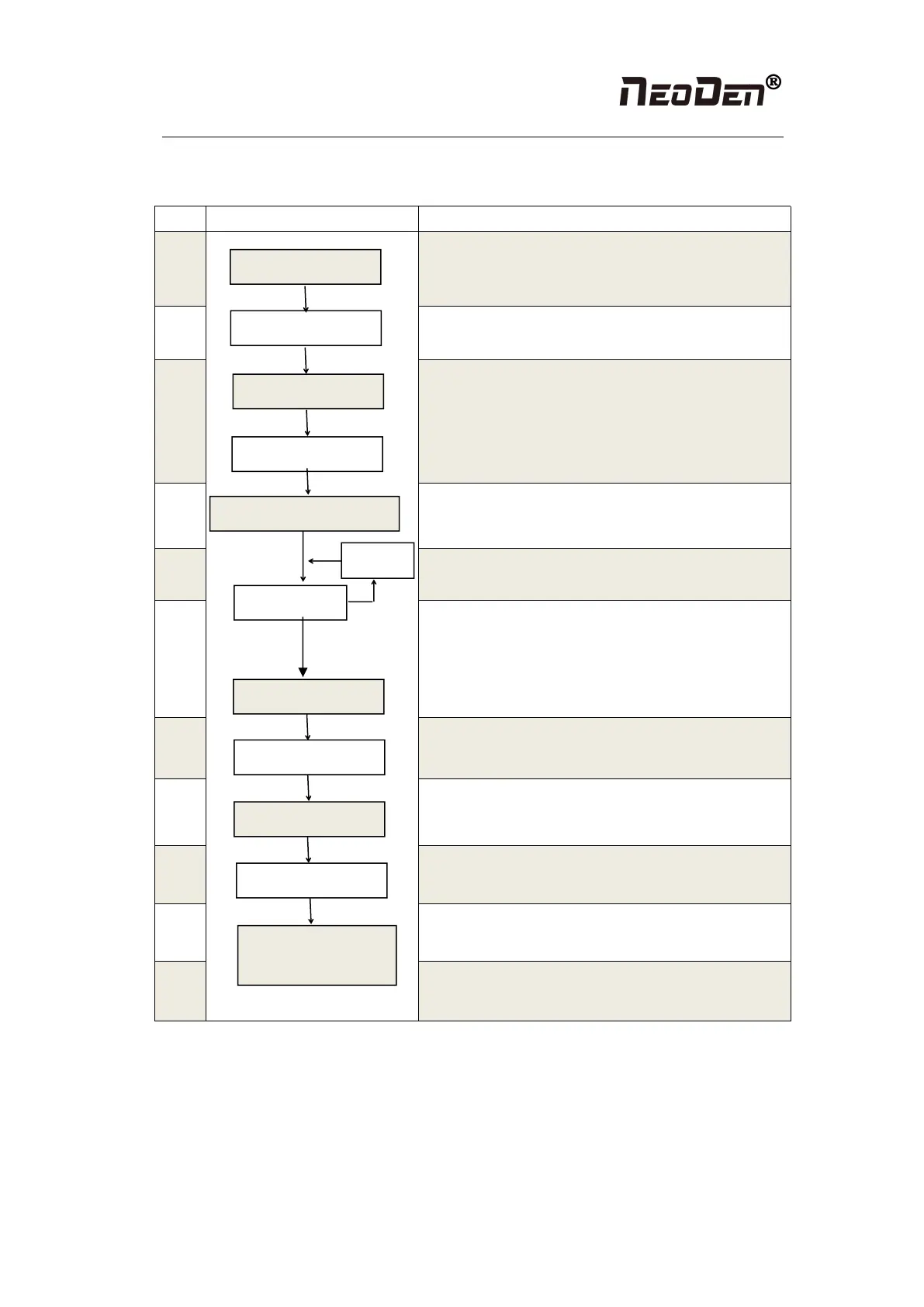

1.3 Operation flow chart
NO.
Flow chart
Note
1
Checking the working area whether it is safe or not,
whether the air source is normally connected and reaches
the calibrated pressure value.
2
3
Click the launcher icons, machine will start self-checking
process, you can see the flash board of the up-looking
camera is flashing, nozzle start initializing, and XY
initializing. After the initialization, machine will go into the
software interface.
4
After power on complete, machine will enter the file list
interface
5
Please refer to the detailed information on page
4—machine operation introduction
6
After making a programming file, it may exist several
programming issues, such as rotation issues of components,
so a production testing is necessary for solving issues.
7
Start to pick and place.
8
Production finish, exit.
9
Shut down the system via computer, then power off the
machine.
10
Disconnect the electricity supply after the system being
powered off.
11
Keep the machine clean, daily maintenance of the nozzles
assures high utility.
System shut down
Power off
Cleaning and
maintenance
Exit
Mounting
Preparation
Turn on
Initialization
Operation page
Edit
Normal
Test
Modify
Abnormal
