Feeding test: click ‘feed’ button, the feeder will feed one component to check if it works.
2.3.2 Nozzles’ Positions Setup
Figure (2.4.2)

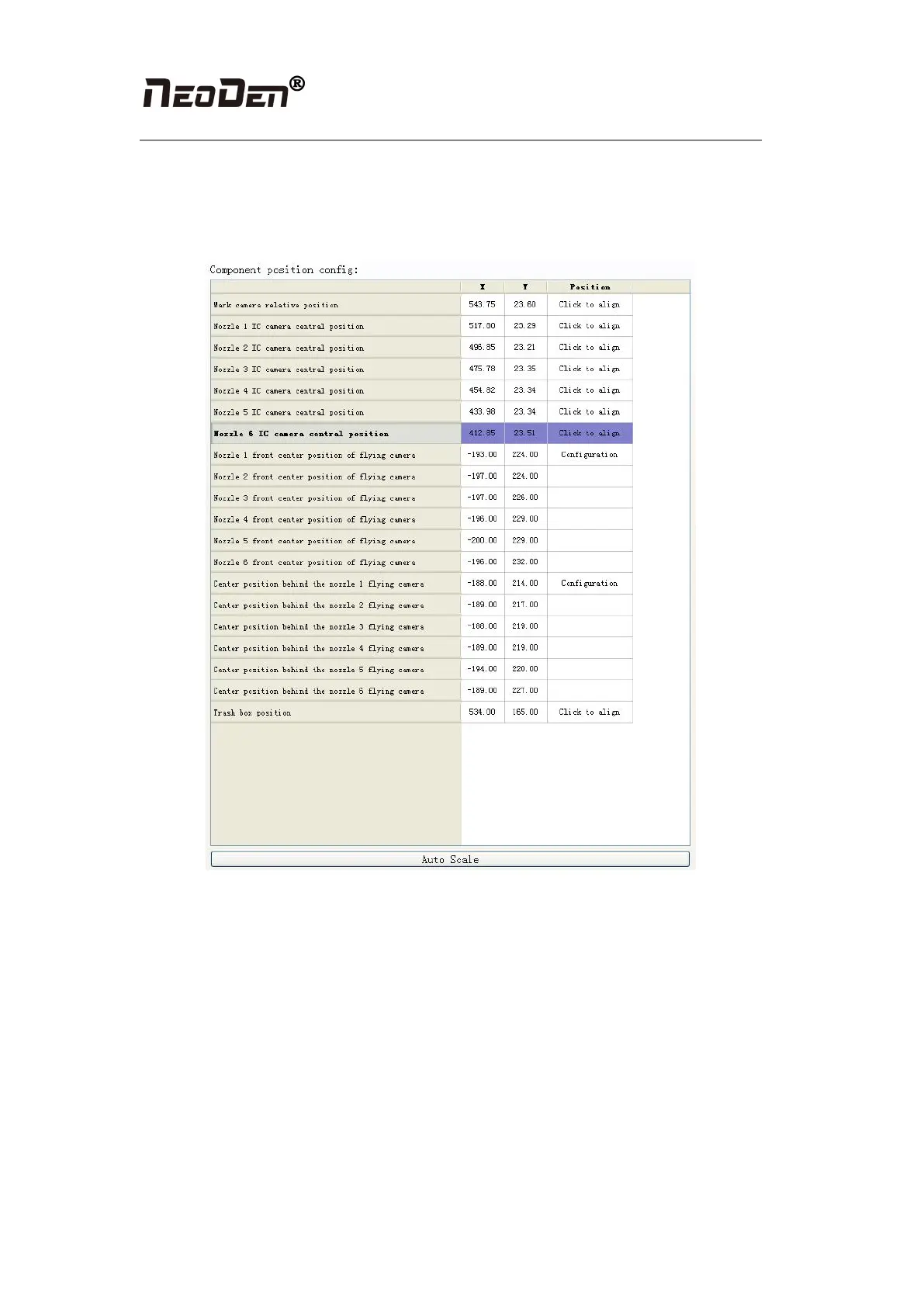

Function: this screen is mainly to correct nozzles’ position.
P.S. Password is required to activate the items to avoid maloperation, please contact support
team before making a change.
2.3.2.1 Fiducial Camera Position
Steps:
●Put a cooling pad on PCB, click “Rails 2” and fix the PCB on rails.
●Go to the Manual Test screen, move the head make sure the nozzles stay above the cooling
pad, then click “Nozzle #1” and “Back”.
To Next Page
