Neoway N720 OpenLinux - Basic Features; Figure 1-1 Block Diagram

94 pages

Save Page as PDF

To Next Page

To Previous Page

N720 OpenLinux

Hardware User Guide

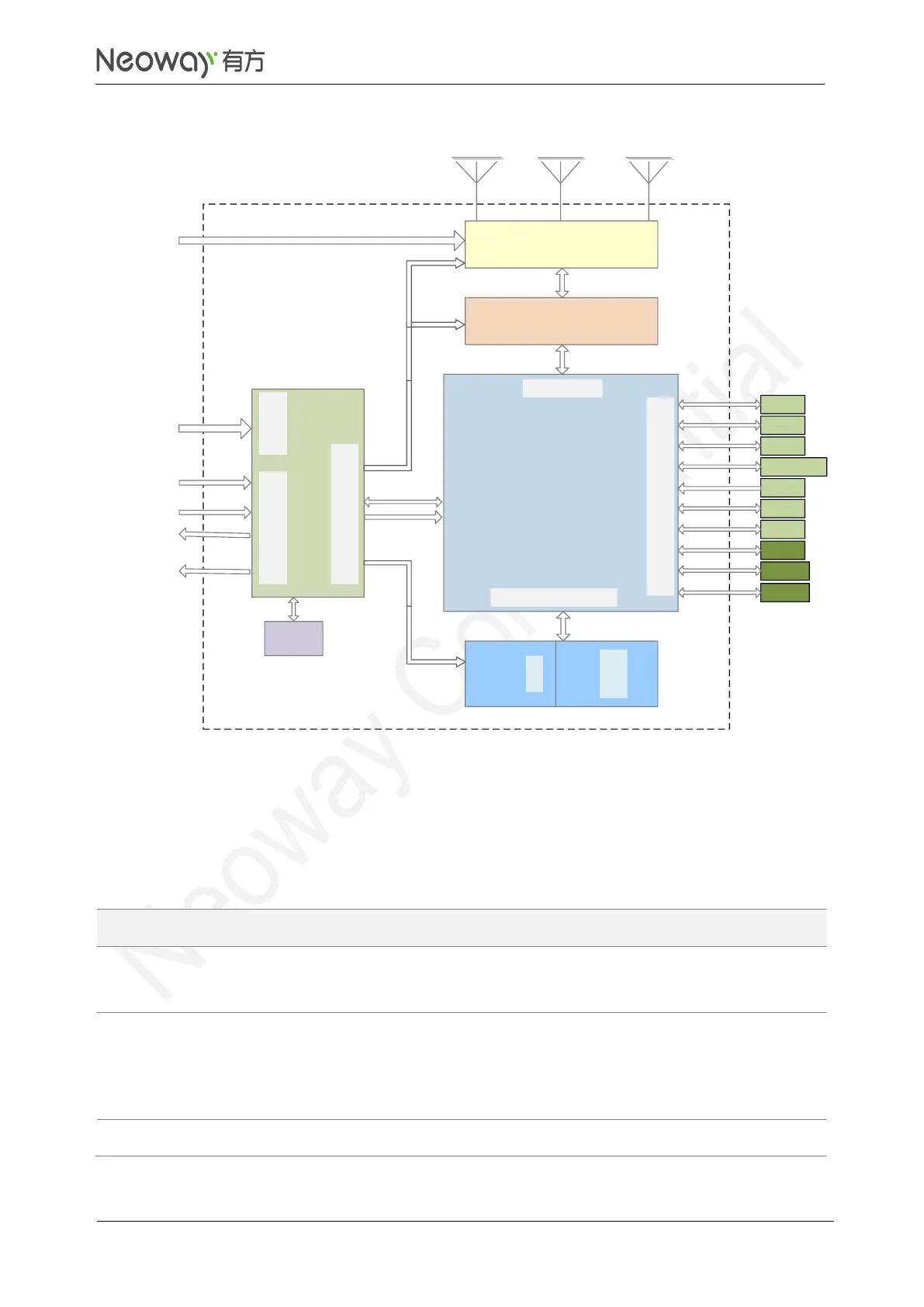

Figure 1-1 Block Diagram

VBAT

RF transceiver

19.2M

crystal

RF Front-end

(PA/ASW/DUP/SAW)

ANT_MAIN

ANT_DIV

ANT_GNSS

PWRKEY

RESET

MCP

NAND

LPDDR

SDRAM

Base Band

MEMORY SUPPORT

RFFE I/F S

CONNECTIVITY

SPMI

VDDs

TRX

TRX&MIPI

Input PM

Output PM

Interfaces

ADC

PM_GPIOs

VBAT

UART

SPI

I2C

ADC

USB

SGMII

SDIO

UIM

GPIO

I2S/PCM

Power

Manager

VDDs for

MCP

VDDs

for PA/ASW

1.3 Basic Features

Parameter

Description

Physical features

Dimensions: 30 mm * 28 mm * 2.8 mm

Weight: around 5.1g

Temperature

ranges

Operating: -35°C to +75°C

Extended: -40℃ to +85℃

Storage: -45°C to +90°C

Operating voltage

VBAT: 3.3V to 4.3V, TYP: 3.8V
