N720 OpenLinux

Hardware User Guide

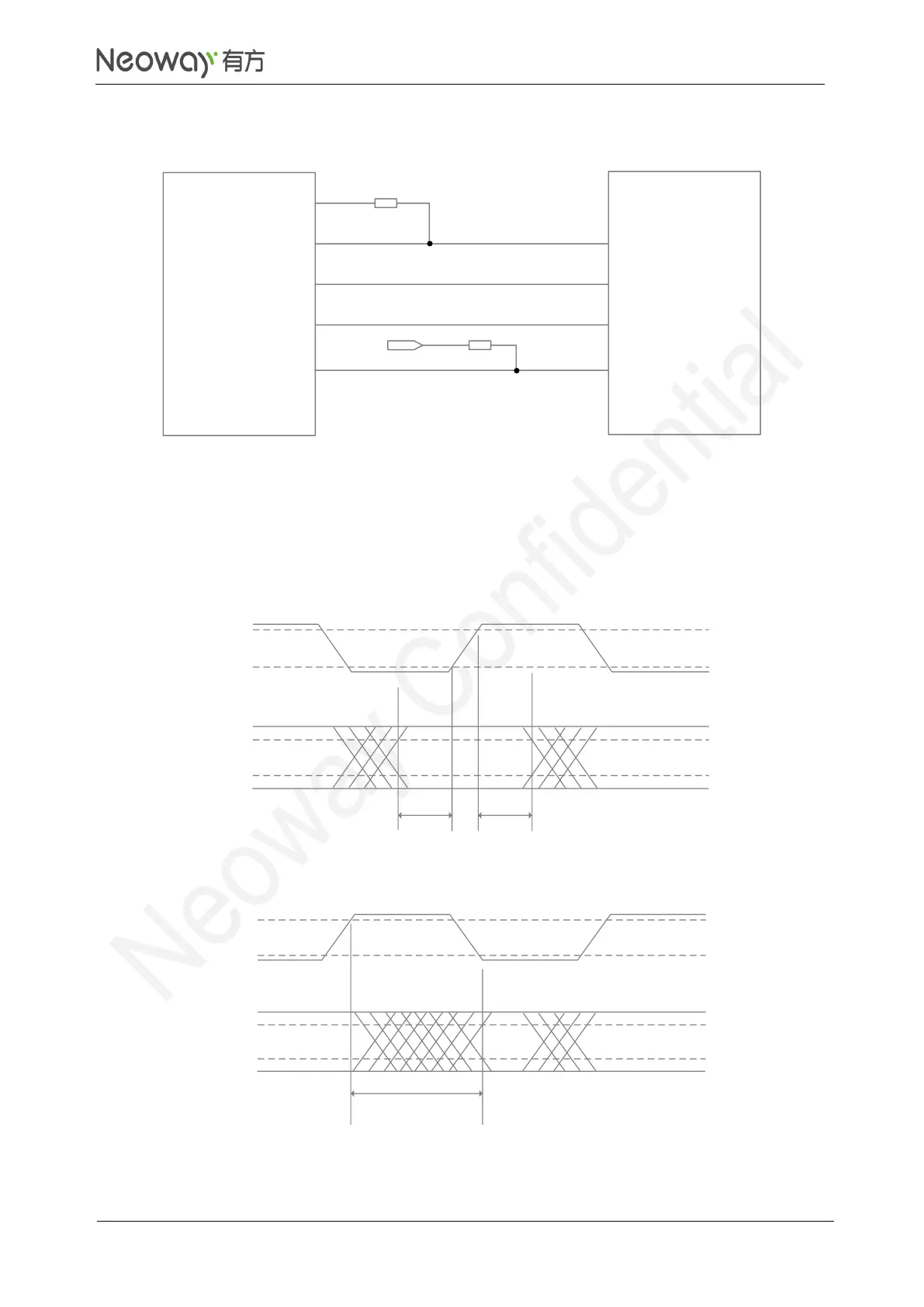

Figure 3-39 Connection between MDIO and PHY

MDIO_DATA

MDIO_CLK

ETH_RST_N

ETH_INT_N

N720 module

MDIO_DATA

MDIO_CLK

RST_N

INT_N

PHY chipset

UIM2_VCC

1.5kΩ

10kΩ

VDD_1P8

MDIO can control one MAC or up to 32 PHY devices. It supports a maximum frequency of 2.5 MHz

and 1.8V/2.85V auto-adaption. Figure 3-40 and Figure 3-41 show MDIO input/output timing.

Figure 3-40 MDIO input timing

Figure 3-41 MDIO output timing

ViL(MAX)

ViH(MIN)

10ns MIN 10ns MIN

ViL(MAX)

ViH(MIN)

MDIO_CLK

MDIO_DATA

ViL(MAX)

ViH(MIN)

0ns MIN

300ns MAX

ViL(MAX)

ViH(MIN)

MDIO_CLK

MDIO_DATA
