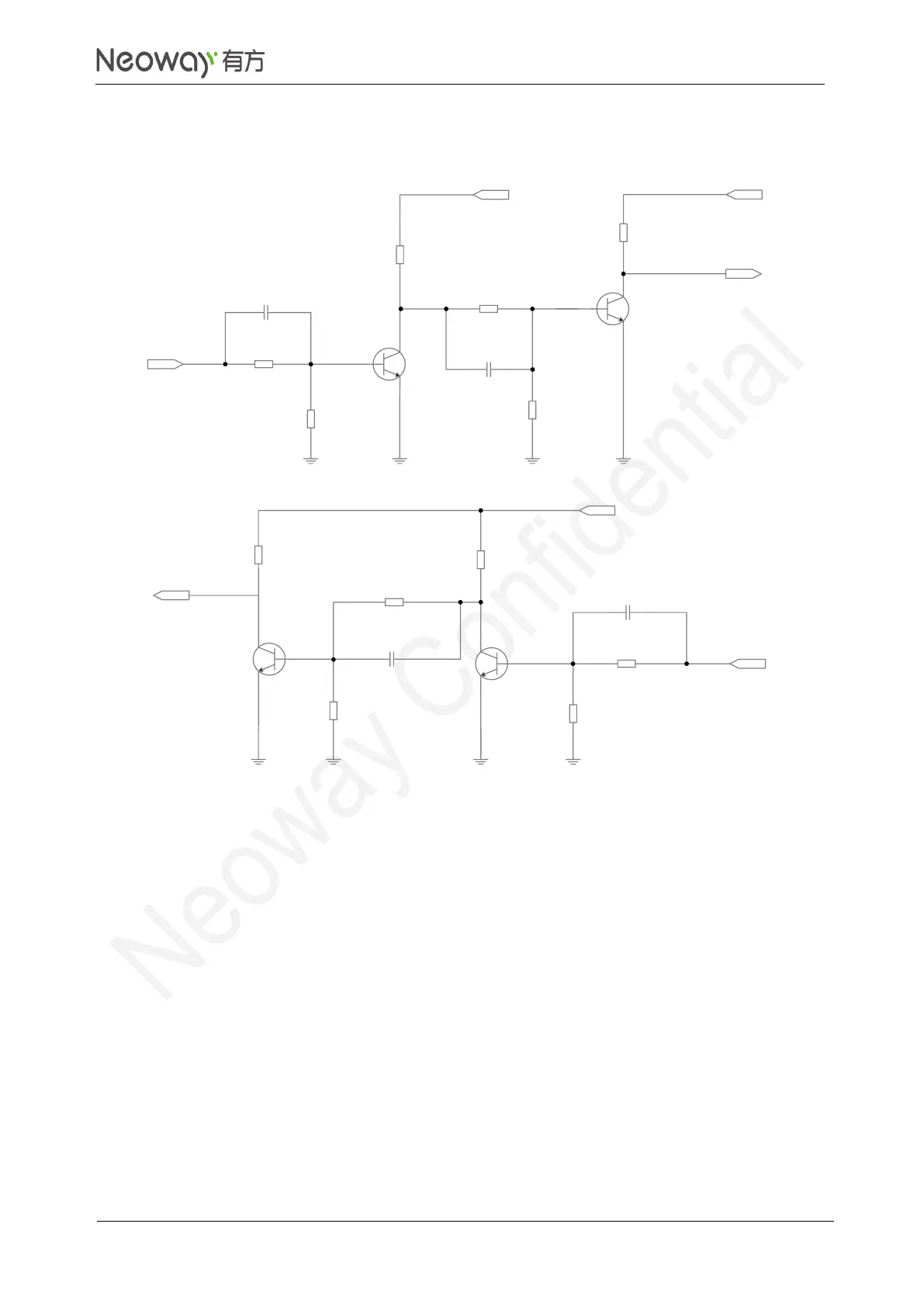

Figure 3-19 Recommended level shifting circuit 2

220pF

UART_RXD

10kΩ

4.7kΩ

VDD_1P8

4.7kΩ

220pF

47kΩ

4.7kΩ

MCU_TXD

R12

R11

R10

220pF

UART_TXD

10kΩ

4.7kΩ

VDD_1P8

2.2 kΩ

220pF

47kΩ

4.7kΩ

MCU_RXD

VCC_IO

47kΩ

MCU_TXD and MCU_RXD are respectively the TX and RX of the MCU while UART_TXD and

UART_RXD are respectively the TX and RX of the module. VCC_IO is the IO voltage of the MCU.

Level shift chip is recommended if the level of MCU is larger than 3.3V or the baudrate is higher than

1 MHz.
