N720 OpenLinux

Hardware User Guide

ANT_GNSS

GNSS antenna

ANT_DIV

Diversity antenna

3.5.1 ANT_MAIN/ANT_DIV antenna interface

MAIN_ANT and DIV_ANT of N720 OpenLinux require a characteristic impedance of 50 Ω. Developers

should control the impedance of the traces between the pins and antenna to ensure the RF

performance. An impedance matching circuit, such as L network, T network, or pi network is mandatory

in between. Pi network is recommended.

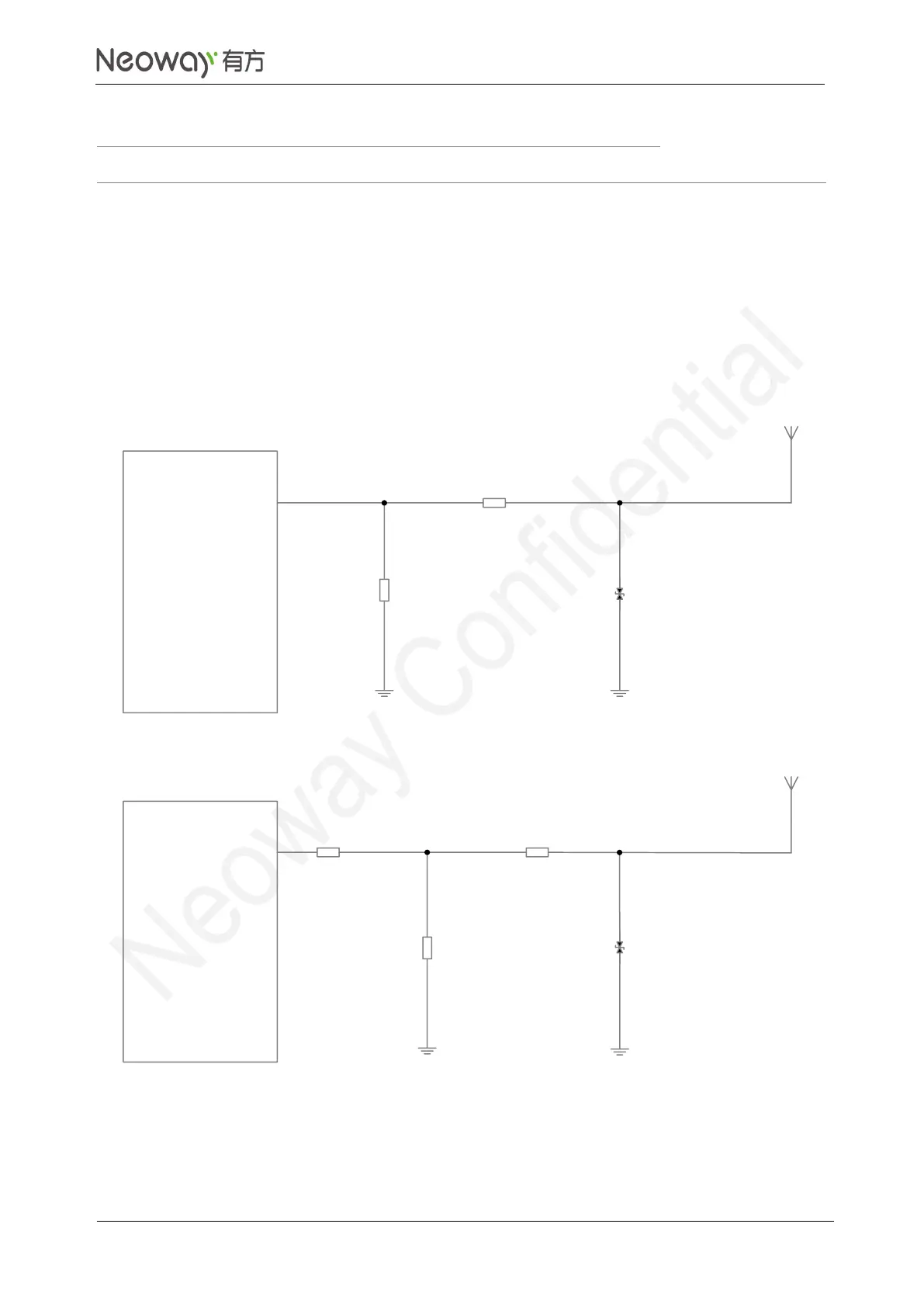

Figure 3-46 L network

ANT_MAIN

N720

module

ESD

(ANT_DIV)

Figure 3-47 Split capacitor network

ANT_MAIN

N720

module

ESD

(ANT_DIV)
