N720 OpenLinux
Hardware User Guide
Copyright © Neoway Technology Co., Ltd
59

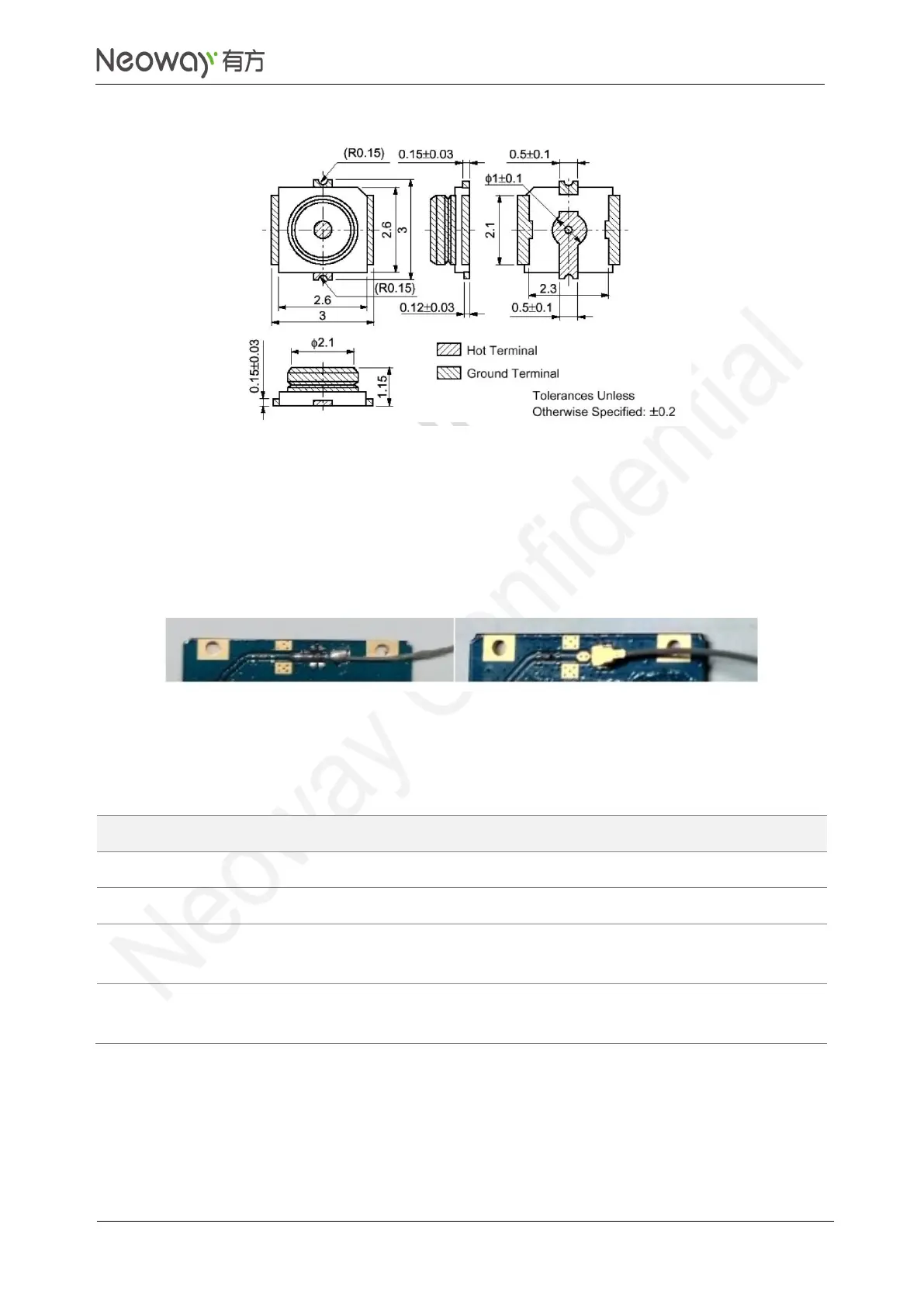

Figure 3-55 Specifications of MM9329-2700RA1

Soldering
RF wire can also be soldered to connect to the module. Ensure sufficient soldering in case of
damage that lowers RF performance.
Figure 3-56 shows the two types of connections.
Figure 3-56 RF connections
3.6 GPIO
Signal
Pin
I/O
Function
Remarks
GPIO_76
68
B
GPIO with interrupt
GPIO_77
67
B
GPIO without interrupt
GPIO_78
66
B
GPIO without interrupt
Do not pull this pin high before
the module is started.
GPIO_79
65
B
GPIO with interrupt
Do not pull this pin high before
the module is started.
N720 OpenLinux provides 4 GPIO pins, two among which support interrupt. Do not connect GPIO_78
or GPIO_79 to the power supply through a pull-up resistor before the module is started. Otherwise, the
module will enter download mode forcibly once detecting high level or current input at this pin during
startup.
