Control the impedance of SDIO interface to 50Ω.

SDIO supports at most SDR 200 MHz or DDR 50 MHz. The following figures and table show the timing

and parameters of SDR and DDR modes respectively.

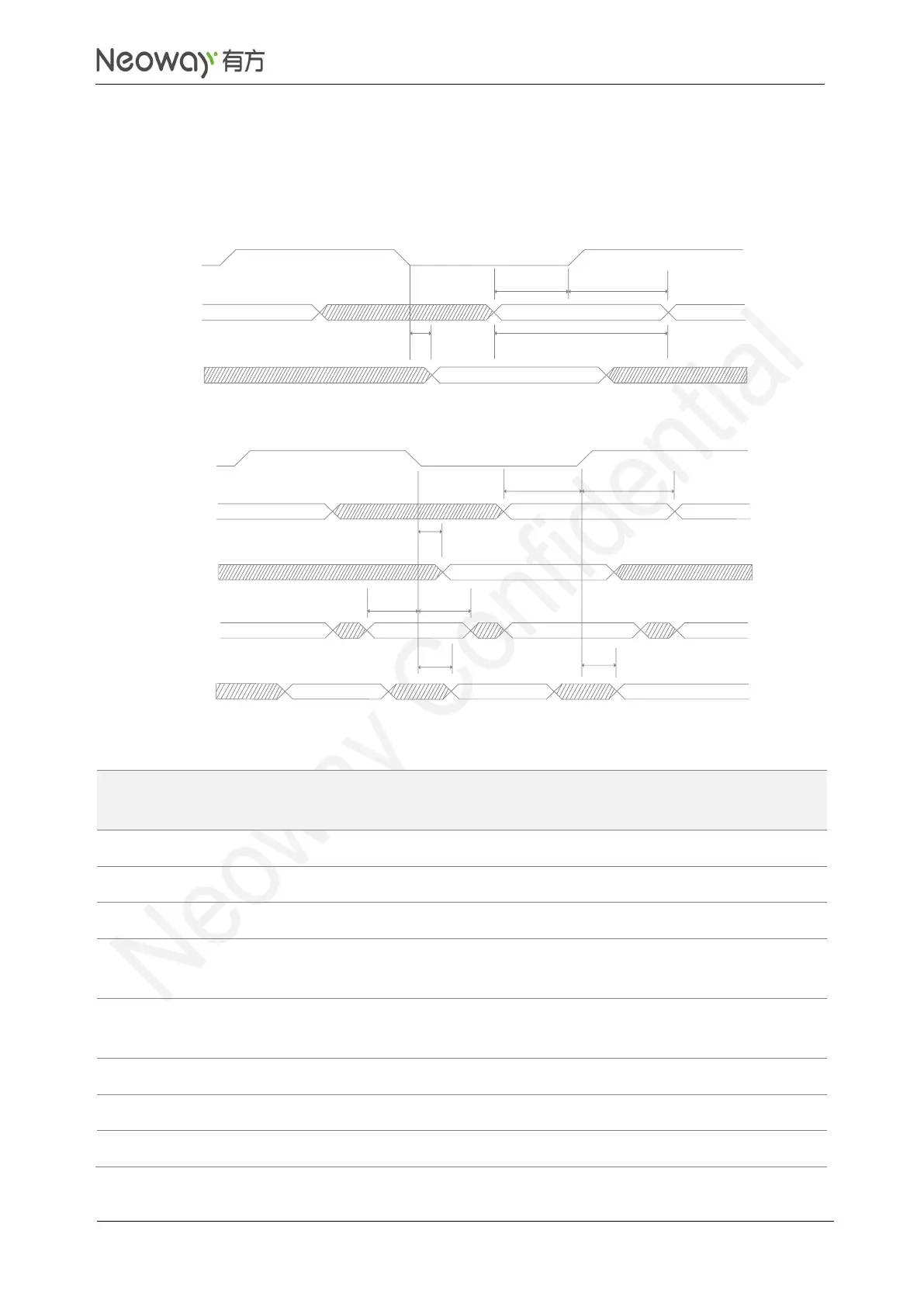

Figure 3-43 SDIO SDR timing

Figure 3-44 SDIO DDR timing

Table 3-15 Timing parameters of SDIO/WLAN interface

Timing Parameter

Minimum

Value

Typical

Value

Maximum

Value

Unit

SDR mode (max. 200MHz)

t(cvdrd)

Command valid time

2.4

t(dvdrd)

Data valid time

2.4

t(pddwr)

Delay time from data write to

transmit

-1.45

0.85

t(pdcwr)

Delay time from command write to

transmit

-1.45

0.85

DDR mode (max. 50MHz)

t(chrd)

Command hold time

1.5

t(csurd)

Command set-up time

5.53

SD_CLK

Read

Write

t(pddwr)

t(pdcwr)

t(cdvrd)

t(dvrd)

t(csurd)

t(dsurd)

t(chrd)

t(dhrd)

Command

Read

Command

Write

t(pdcwr)

t(csurd)

t(chrd)

SD_CLK

DATA

Read

DATA

Write

t(dsurd)

t(dhrd)

t(pddwr)
