N720 OpenLinux

Hardware User Guide

2 Module Pins

There are 100 pins on N720 OpenLinux and their pads are introduced in LGA package.

2.1 Pad Layout

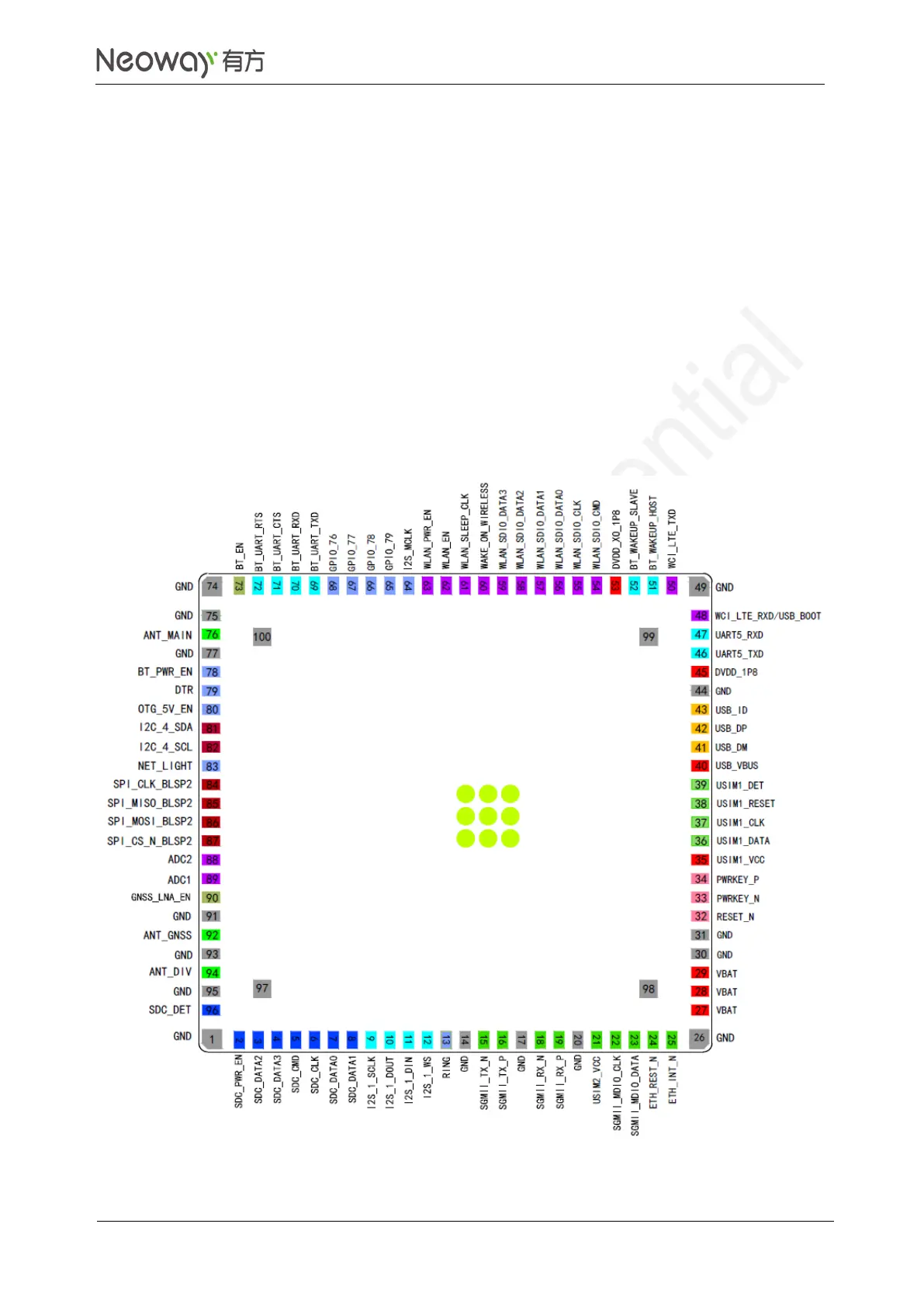

Figure 2-1 shows the pad layout of N720 OpenLinux.

Figure 2-1 N720 OpenLinux pin definition (Top View)
