6.2 PCB Foot Print

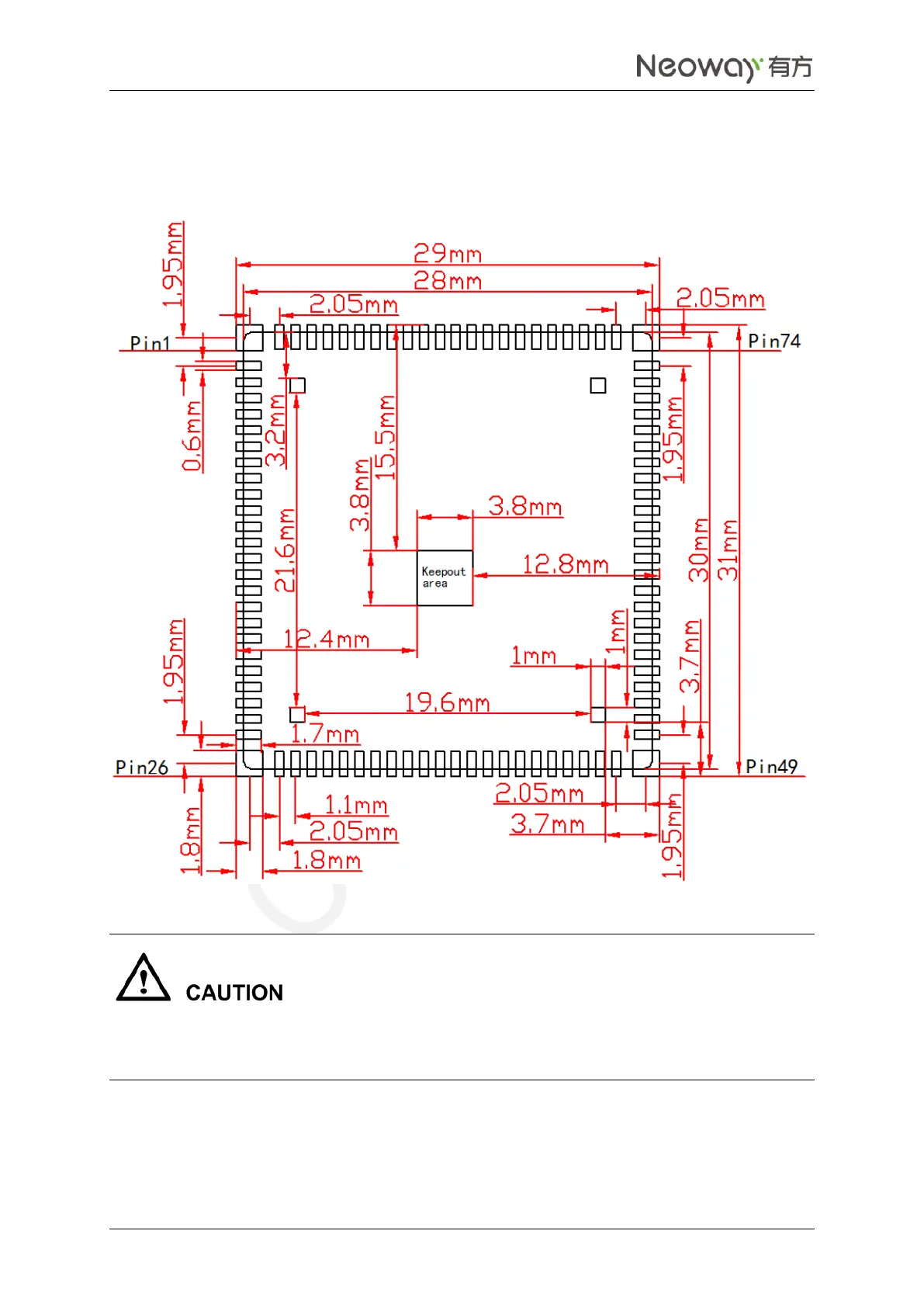

Figure 6-2 N720 PCB foot print (Top View)
A test point is reserved at the Silk Area. It is recommended that a layer of white ink is added in case short
circuit. Do not layout any trace under the JTAG pin.
