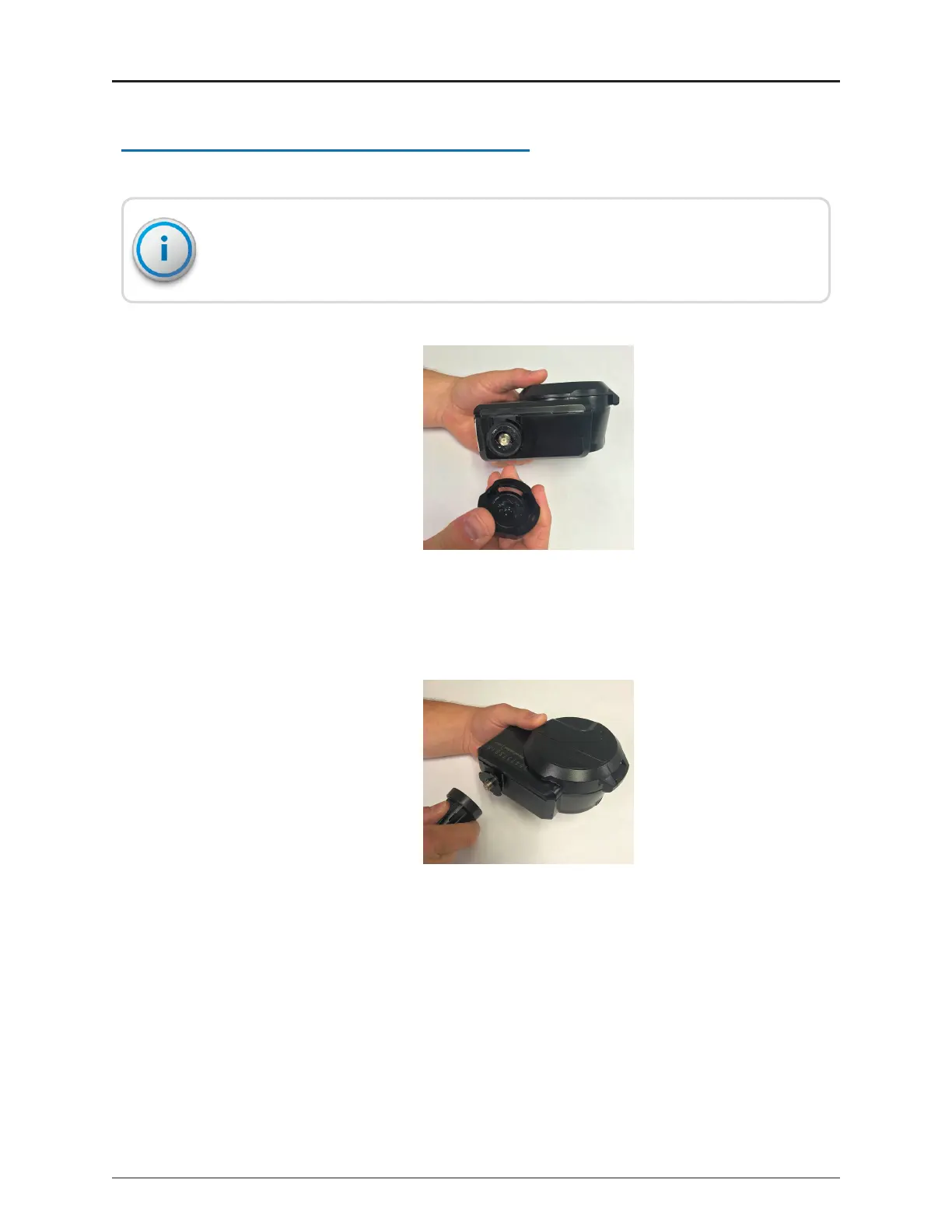

Attaching the Antenna to the MIU
1. Remove the protective cap and gasket.
If you are replacing an existing antenna, remove the existing antenna connection.
Clean any dirt, debris, or dielectric grease from the F connector on the MIU housing.
Figure 11 – Removing the Dust Cover
2. Carefully align the F connector center conductor, and insert the antenna connector
into the three-lobed black plastic latch plate on the MIUhousing.
Figure 12 – Aligning the F Connector
16 ProCoder™)R900i™Installation and Maintenance Guide
Chapter 4: Installing the ProCoder™)R900i™
