INTELLIGENT REACTIVE POWER MANAGEMENT
RM-12P
21
If total voltage harmonýc value exceeds preset value and it does not turn
to normal level during delay time, an alarm occurs.

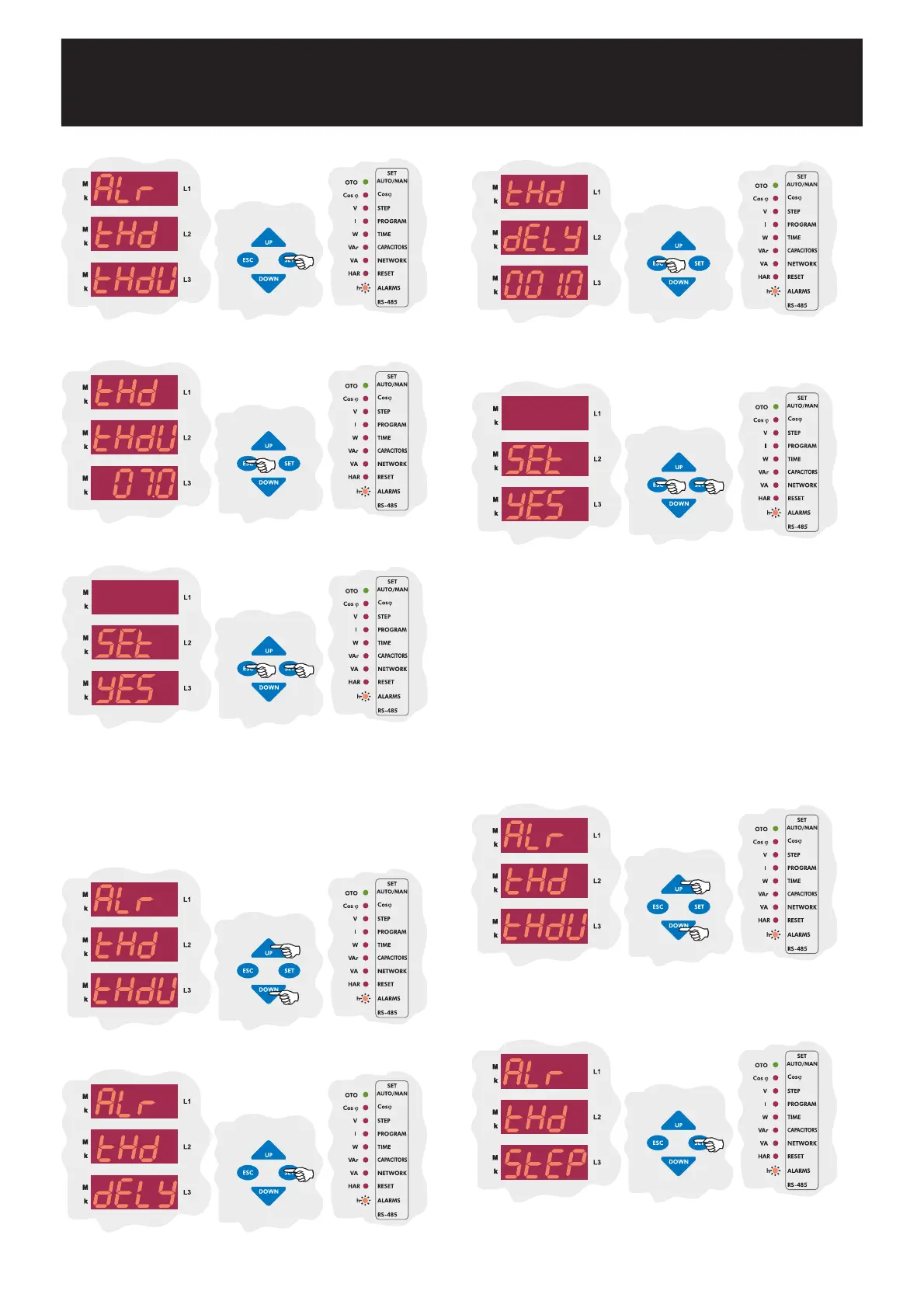

3.9.d.b Harmonic Alarm Delay Time Setting
SAUE
If you do not want to set another parameter, in order to quit from the
menu, press ESC button one by one until SAVE SEt yES is displayed.
Press SET button to save your changes or press ESC button to quit
without saving.
Press SET button to set over voltage harmonýc (thdV) value.
Enter the over voltage harmonic value between 0-99 % and press SET
button.
By UP/DOWN buttons, find delay time (dELy) menu.
Press SET button for delay time settings.
3.9.d.c Switch On&Off Settings for Harmonic Alarm
In order to protect the capacitors from over voltage harmonic, switch
on&off settings are done in this menu.
If on option is selected, when over voltage harmonic error occurs,
capacitor steps still switch on.
If of option is selected, when over voltage harmonic error occurs,
capacitor steps switch off.
SAUE
If you do not want to set another parameter, in order to quit from the
menu, press ESC button one by one until SAVE SEt yES is displayed.
Press SET button to save your changes or press ESC button to quit
without saving.
Enter the delay time for over voltage harmonic between 0-999,9 seconds
and press SET button.
By UP/DOWN buttons, find capacitor step (StEP) menu.
Press SET button for capacitor step settings.
To Next Page
