3.9.c.c Switch On&Off Settings for Temperature Alarm
In order to protect the capacitors from over heat, when over temperature
alarm occurs, capacitors switch on&off setting are done.
If on option is selected, when over temperature alarm occurs, capacitor
steps switch on.
If of option is selected, when over temperature alarm occurs, capacitor
steps switch off.

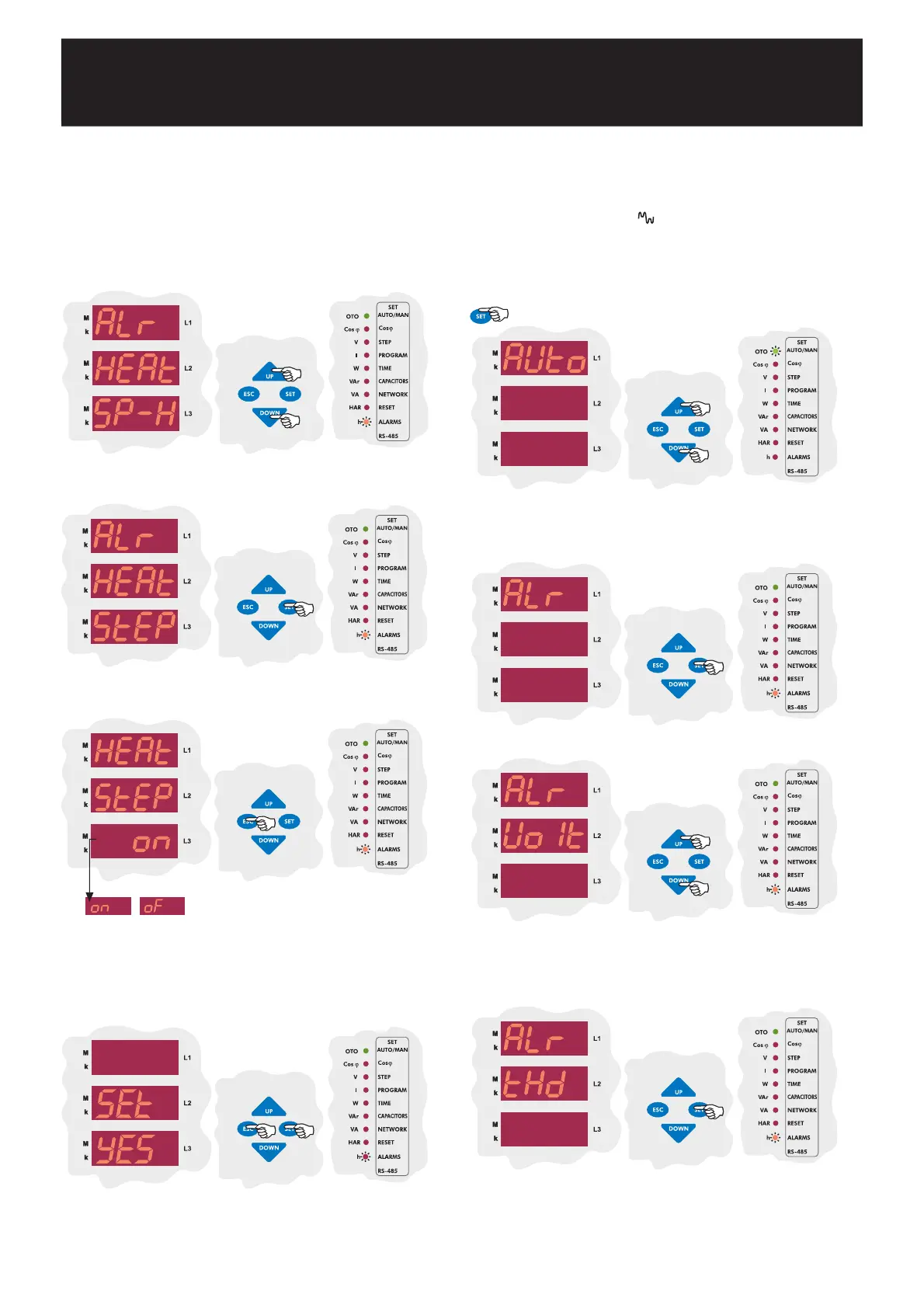

When ALr HEAt SP-H is displayed, find STEP parameter by using
UP/DOWN buttons.
Press SET button for capacitors switch on&off settings.
By UP/DOWN buttons, select on or of option and press SET
button. If you do not want to set another parameter, press ESC button.
SAUE
If you do not want to set another parameter, in order to quit from the
menu, press ESC button one by one until SAVE SEt yES is displayed.
Press SET button to save your changes or press ESC button to quit
without saving.
If total harmonic value of measured voltages exceeds preset value and
also if this value does not turn to normal level during delay time, alarm relay
switches on and harmonic led (
) lights.
3.9.d Harmonic Setting
High setpoint value of voltage total harmonic value is set in this menu.
3.9.d.a Over Voltage Harmonic Setting
By UP/DOWN buttons, find Alarm (ALr) menu. When Alarm menu
is selected, alarm led lights.
Press SET button for alarm (ALr) settings.
By UP/DOWN buttons, find over voltage harmonic (tHd) menu.
In this menu, over voltage harmonic value (tHdV), delay time (dELy)
and capacitor step (StEP) parameters are set. In order to set these
parametesers, press SET button.
Press SET button for 3 sec. in order to enter to the menu.
3 sec.
To Next Page
