42 • Status Monitoring Element Manager User’s Manual Nimbra OneSerie
©2006 Net Insight AB, All rights reserved
Equipment
The Equipment page lists the software drivers and hardware devices installed
in the unit. To access the page, proceed as follows:
1. Click on the Status|Equipment. The Equipment page, Figure 38, will
appear.

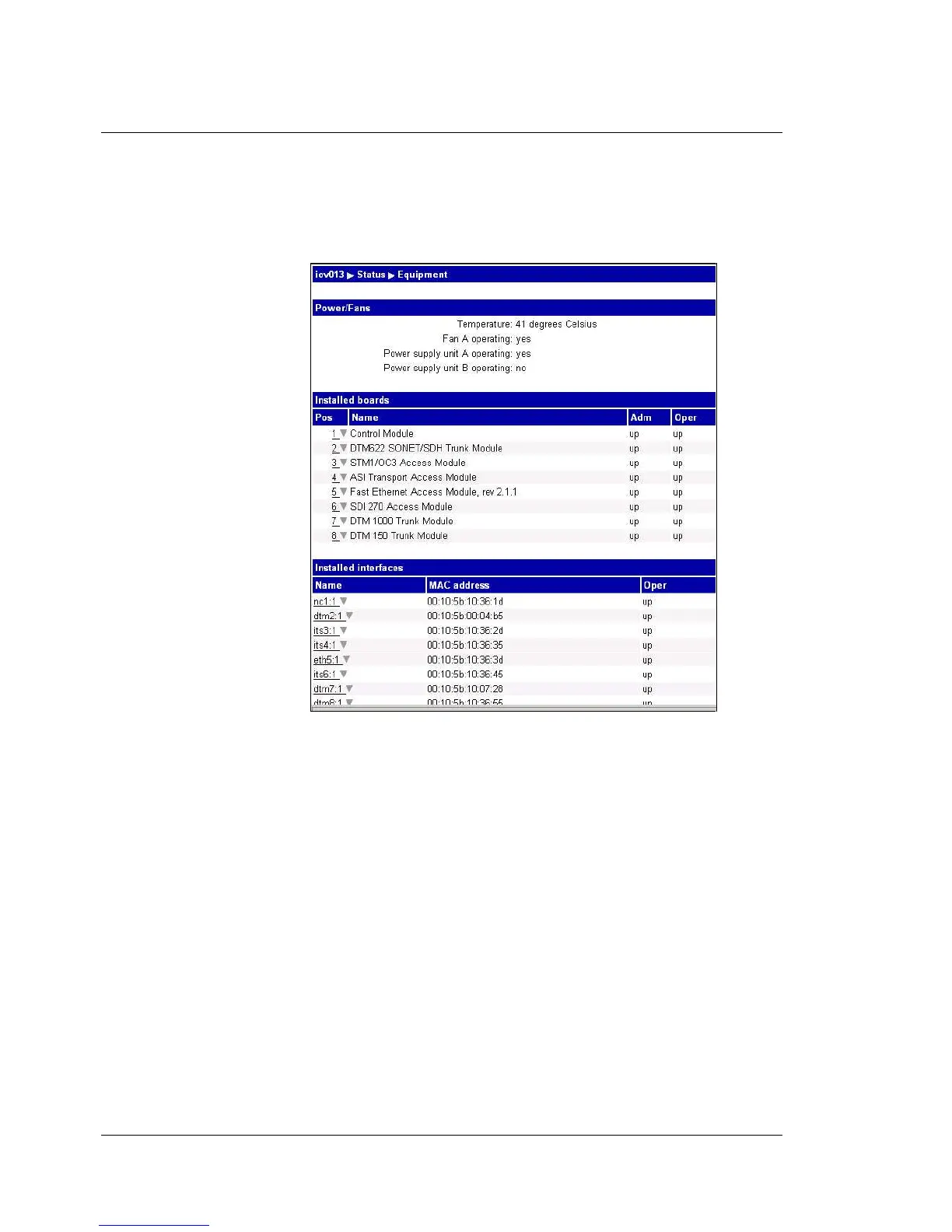

Figure 38. Equipment page
The following information is shown:
Power/Fans
• Temperature states the temp of the unit.
• Fan states, which fan that is operating.
• Power supply states which power supply that is operating.
Installed boards
• Pos states the position of the board in the chassis.
• Name presents the type of board installed.
• Admin shows the administrative status of the board.
• Oper: shows the operational status of the board.
Installed Interfaces
• Name shows the name of the interface.
• MAC address states the MAC address of the interface.
• Oper shows the operational status of the board.
