Element Manager User’s Manual Nimbra OneSerie Control Network • 59
©2006 Net Insight AB, All rights reserved
Type definitions: Man – mandatory, Rec – recommended, Opt – optional
1. Click on the Control Networks|IP Routing Conf. The Routing conf.
page, Figure 56, will appear. This page contains the configured routes on
the subject node.

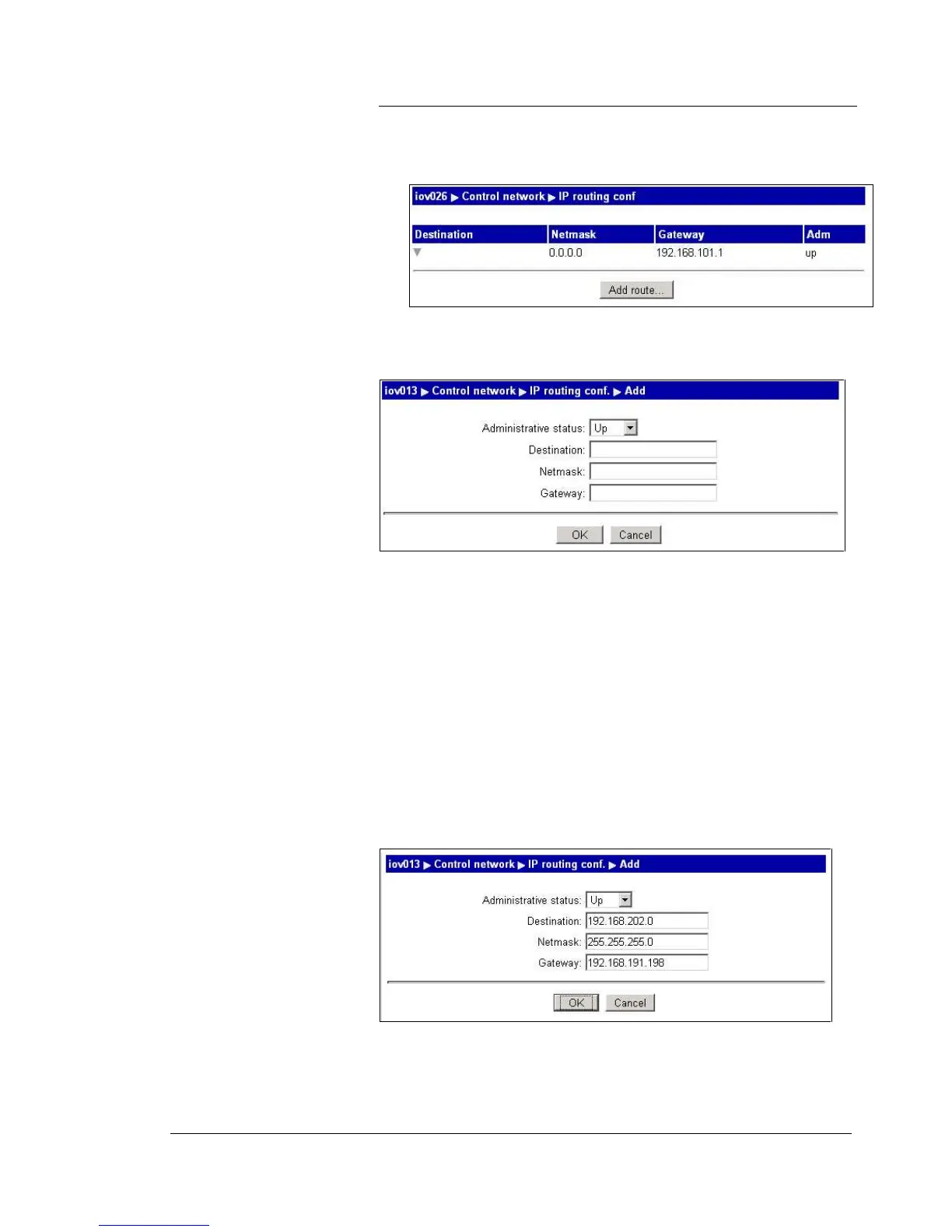

Figure 56. IP routing configuration page
2. Click on the Add route button, the Add page, Figure 57, will appear.
Figure 57. Add IP route
3. Set the Administrative status to Up and enter the Destination IP address
and the Netmask.
4. Enter the IP address of the Gateway.
5. Click OK. The Routing configuration page will appear, with the new
route in the table.
Verifying and reconfiguring an IP route
To verify and reconfigure an IP route, follow the steps below:
1. Navigate to web page Control Networks|IP Routing conf. and click on
the route to be verified or reconfigured. The Edit page, Figure 58, will
appear.
Figure 58. Edit IP route
2. Set the Administrative status drop-down menu to Up. Enter new values
in the different fields.
