Element Manager User’s Manual Nimbra OneSerie DTM Configuration • 87
©2006 Net Insight AB, All rights reserved
border nodes with different area numbers will not become adjacent and
exchange topology state information.
Editing a dynamic routing entry
To edit a dynamic routing entry, access the DTM|Routes page and click on the
address of the route to be edited. The Route page, Figure 85, will appear.

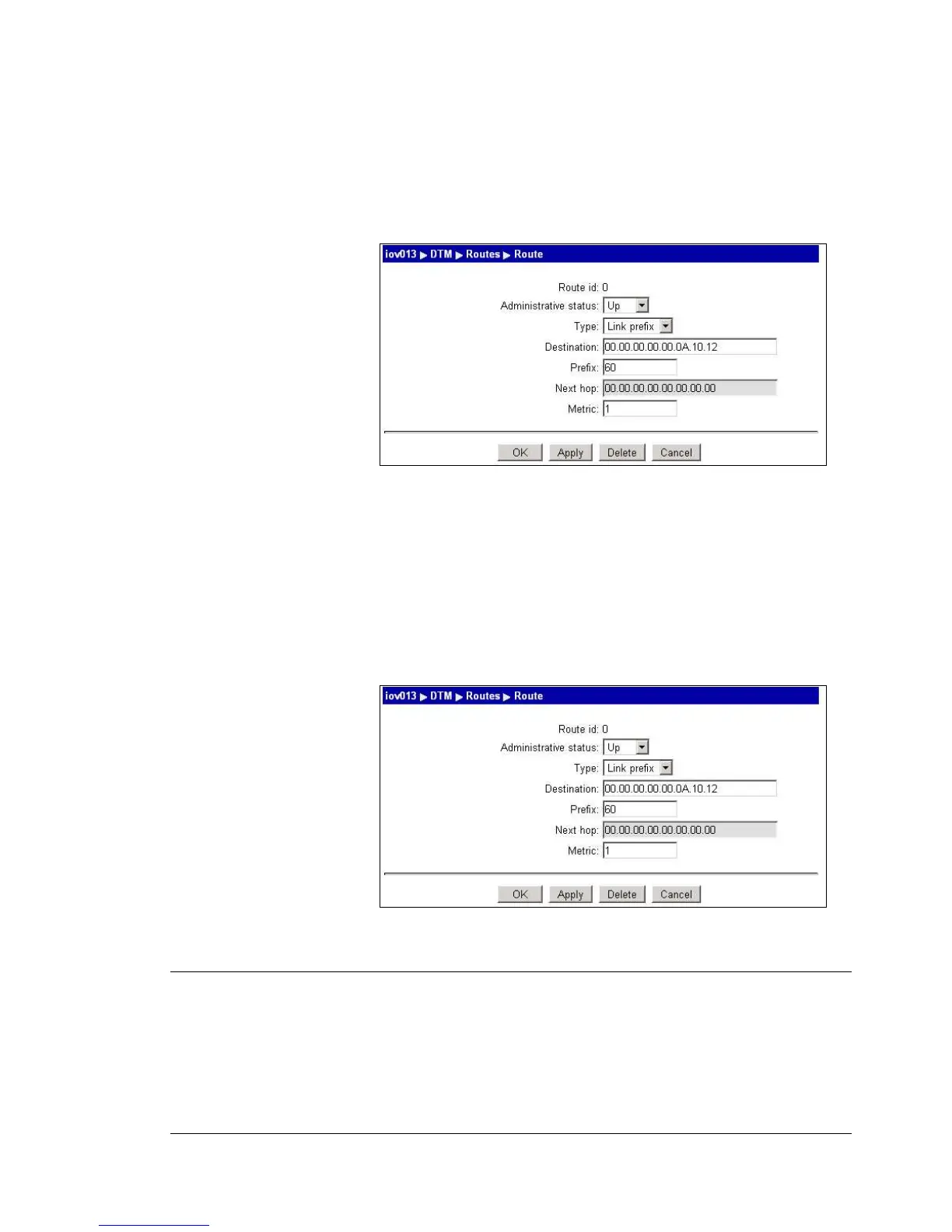

Figure 85. Edit route page
Enter the entries, which should be changed. Click Apply or OK.
Deleting a dynamic routing entry
To delete a routing entry, access the DTM|Routing web page. Click on the
address of the route to be deleted.
Set the Administrative status drop-down menu to Down, click Apply.
Click on the Delete button.
Figure 86. Delete a routing entry
Sync
Net Insight’ s solution is a synchronous solution and all the nodes in the entire
must be synchronized to the same clock source. The source node can either use
its internal clock or use an external sync clock. The reference clock is
distributed in a tree-structure throughout the whole network. The external sync
source could either be a 2.048 MHz or a 1.544 MHz clock.
