74 • DTM Configuration Element Manager User’s Manual Nimbra OneSerie
©2006 Net Insight AB, All rights reserved

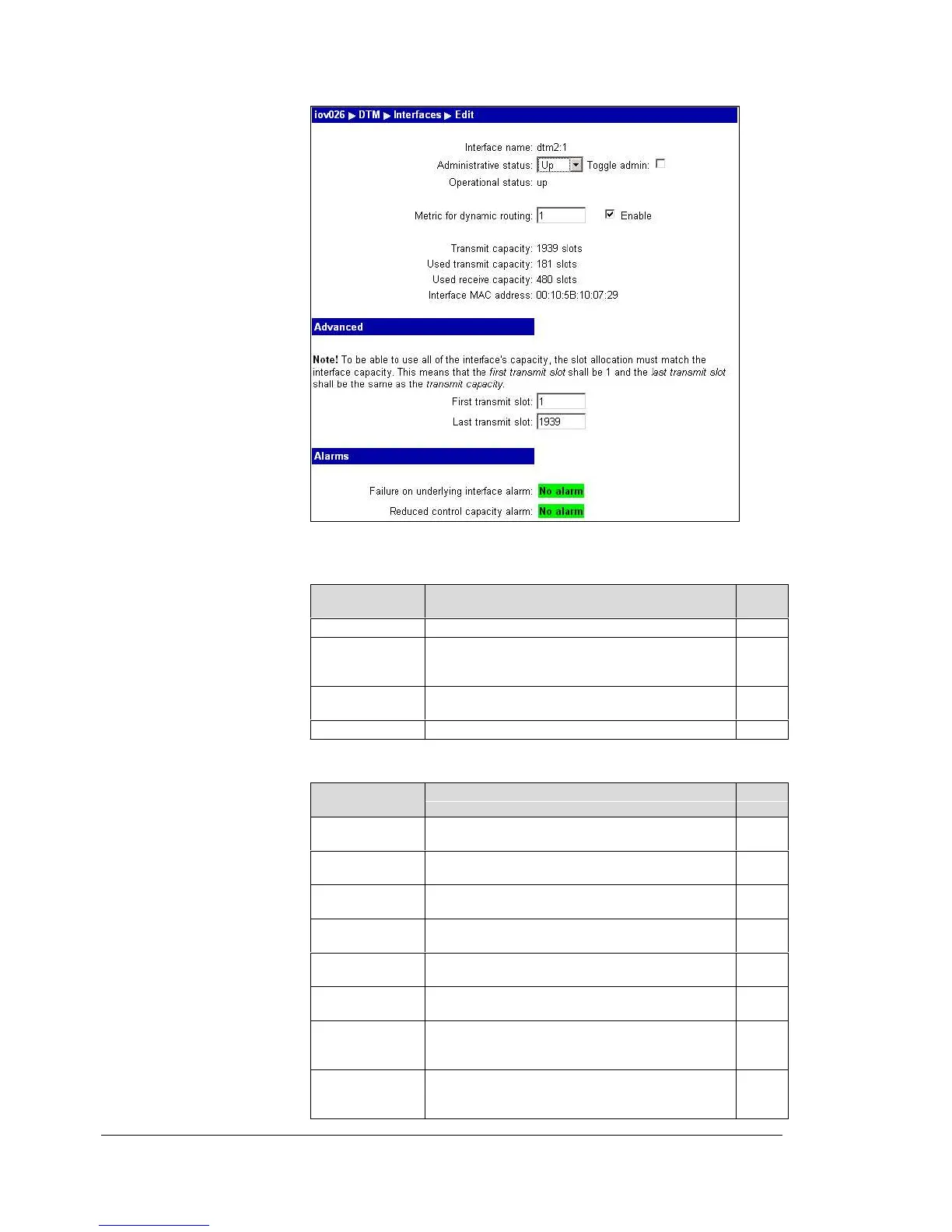

Figure 66. DTM Interface, Edit page
The configurable parameters are:
Parameter
name
Description Type
Admin. status The admin. status of the board. Man
Toggle Admin The Toggle Admin option automatically sets the
Administrative status to Down momentarily and
then to Up again.
Opt
Metric for
dynamic routing
The cost of using this interface when dynamic
routing is used.
Man
Enable
Mark Enable, if dynamic routing should be used.
Man
Type definitions: Man – mandatory, Rec – recommended, Opt – optional
Read-only parameters are:
Parameter
name
Description Type
Interface name The interface id, written as “dtmX:Y” (where X is
position of the card and Y position of the port).
Read-
only
Oper. status The operational status of the board.
Read-
only
Transmit
capacity
The total number of time slots available for
transmission on this interface.
Read-
only
Used TX
capacity
The number of used time slots from this node to
the peering node.
Read-
only
Used RX
capacity
The number of used time slots from the peering
node to this node.
Read-
only
Interface MAC
address
A globally unique hardware identifier for this
interface card.
Read-
only
Failure on
underlying
interface alarm
An error reported by the underlying trunk interface.
(LOF loss of frame.)
Read-
only
Reduced control
capacity alarm
The node is not able to signal the remote node.
This usually indicates a problem in the TX
direction for the link.
Read-
only
