Without TruePower (Figures 21 and 22), the LinkRunner AT lists:
• PoE class requested and the class acknowledgment received from the PSE
• Positive and negative PoE pairs
• PoE power requested and the power acknowledgment received from the PSE
• Measured PoE voltage without a load
• PSE advertised type
PoE request and

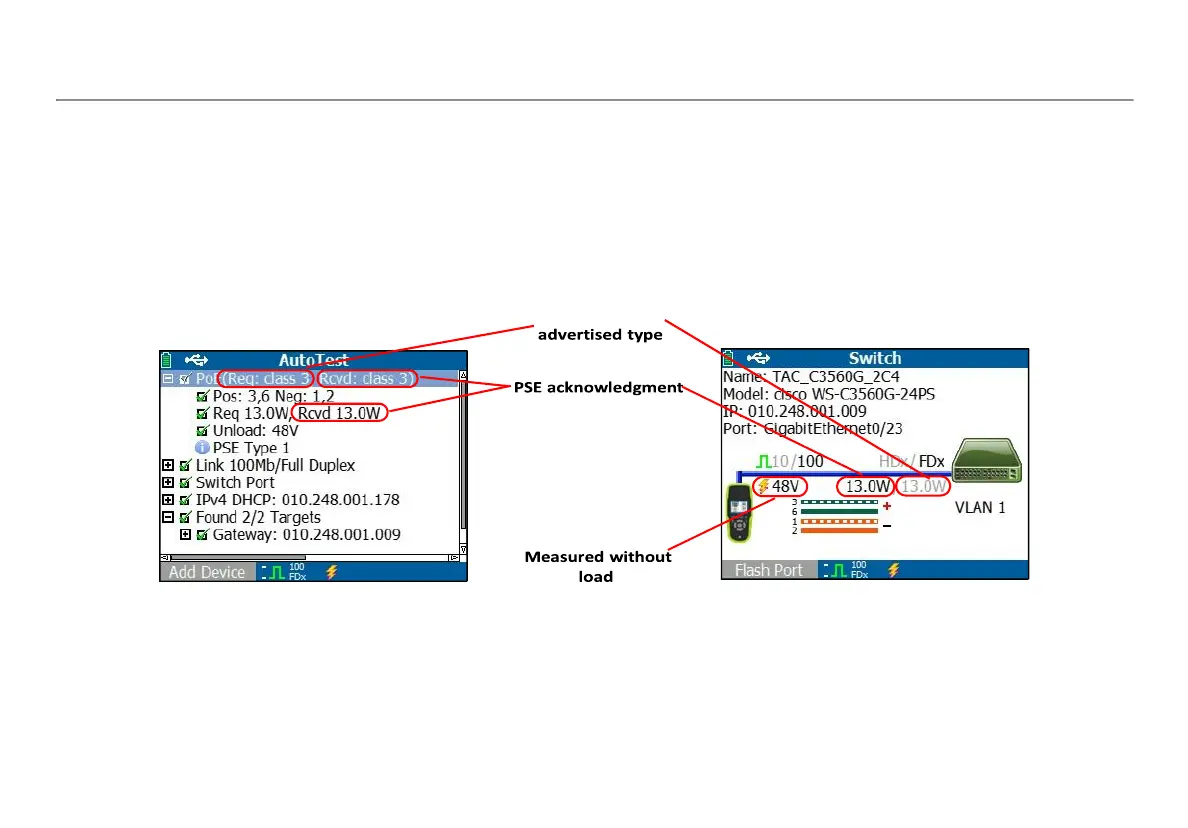

Figure 21. AutoTest results - PoE without TruePower Figure 22. Switch - PoE without TruePower With TruePower enabled (model
2000 only), the LinkRunner AT lists the following information (see Figures 23, 24, and 25):
