netAlly LinkRunner AT 1000 - PoE with TruePower

Using the PoE Feature
29
• PoE class requested and the class acknowledgment received from the PSE
• Positive and negative PoE pairs
• PoE power requested and measured from the PSE
• Measured PoE voltage with and without a load
• PSE advertised type

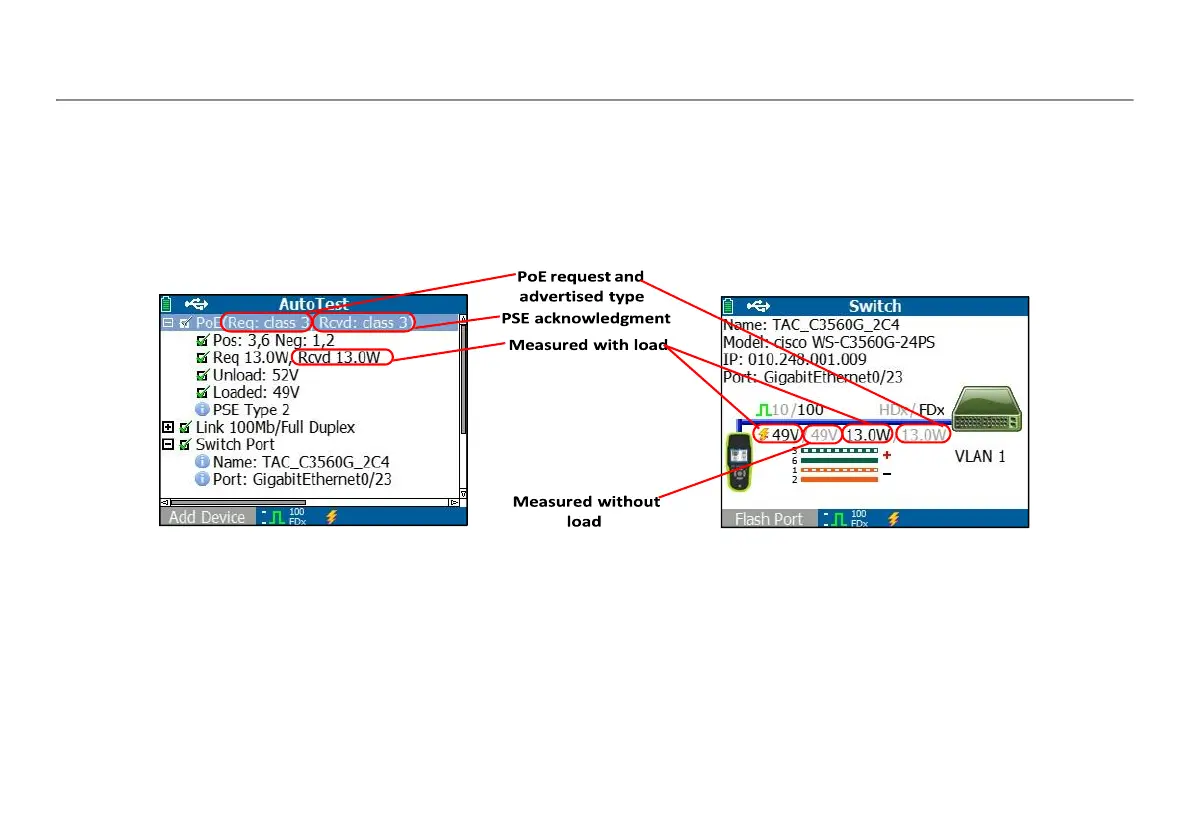

Figure 23. AutoTest results - PoE with TruePower Figure 24. Switch - PoE with TruePower
