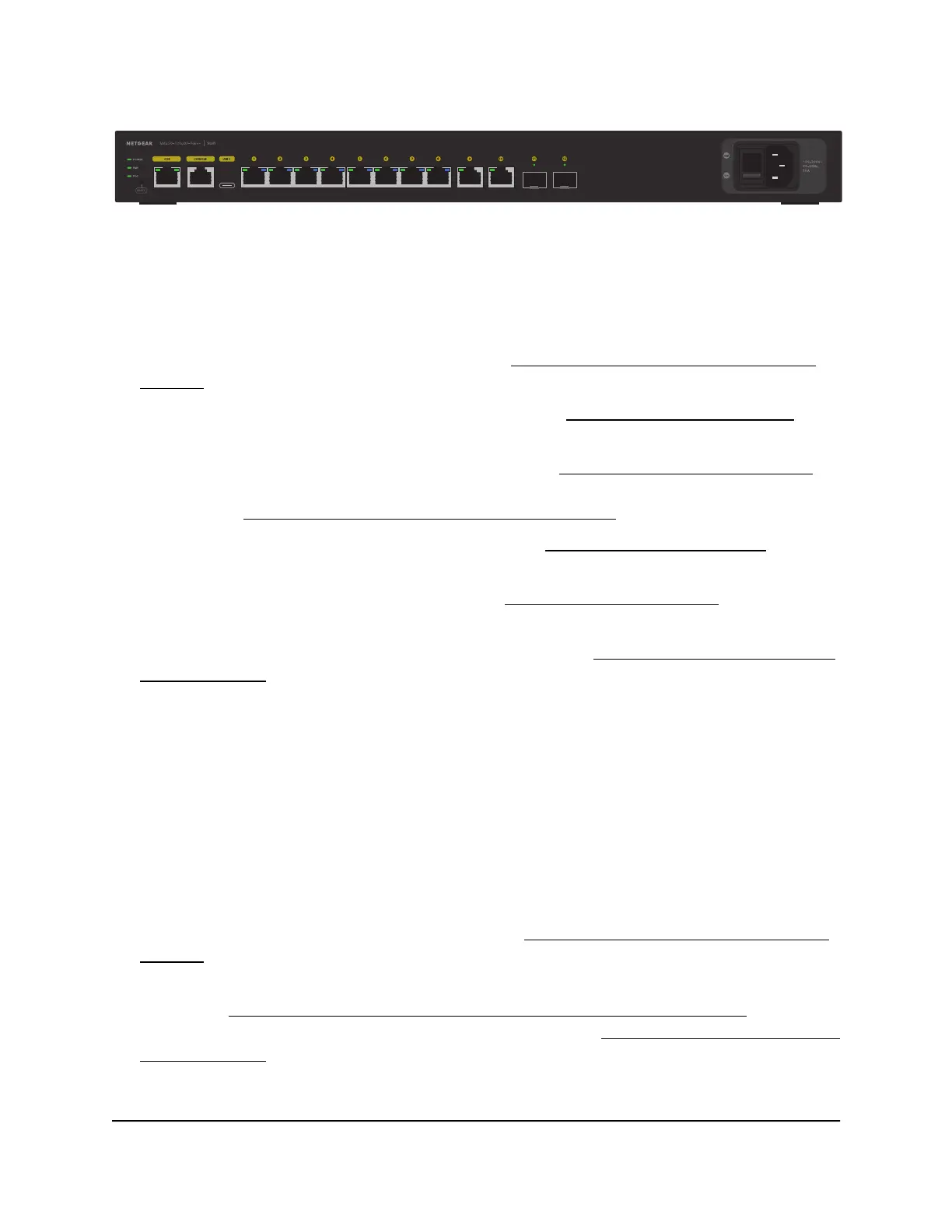

Figure 6. Back panel model M4250-10G2XF-PoE++
From left to right, the back panel of models M4250-10G2F-PoE+, M4250-10G2XF-PoE+,
and M4250-10G2XF-PoE++ provides the following common components, which are
clearly named or numbered on the back panel:
•
POWER, FAN, and POE. System LEDs (see LEDs of the 8-port PoE+ and PoE++
models on page 16).
•
RESET. Recessed dual-function Reset button (see Dual-function Reset button on
page 26).
•
OOB. One out-of-band (OOB) Ethernet port (see Out-of-band 1G Ethernet port on
page 27) with a left LED that indicates the speed and a right LED that indicates the
activity (see LEDs of the 8-port PoE+ and PoE++ models on page 16).
•
CONSOLE. One RJ-45 RS-232 console port (see RJ-45 RS-232 console port on page
27).
•
USB C. One USB Type-C console port (see USB Type-C console port on page 27).
•
Ports 1 through 8. Eight PoE+ or PoE++ 10/100/1000 Mbps autosensing 1GBASE-T
RJ-45 ports, each with a left LED and a right LED (see LEDs of the 8-port PoE+ and
PoE++ models on page 16).
The type of PoE power and PoE budget depend on the model:
- Model M4250-10G2F-PoE+. Eight PoE+ (802.3at) ports with a total PoE budget
of 125W for the switch.
- Model M4250-10G2XF-PoE+. Eight PoE+ (802.3at) ports with a total PoE budget
of 240W for the switch.
- Model M4250-10G2XF-PoE++. Eight PoE++ (802.3bt) ports with a total PoE
budget of 720W for the switch.
•
Ports 9 and 10. Two 10/100/1000 Mbps autosensing 1GBASE-T RJ-45 ports s, each
with a combined speed and activity LED (see LEDs of the 8-port PoE+ and PoE++
models on page 16).
•
Ports 11 and 12. Two dedicated 1GBASE-X SFP or 10GBASE-X SFP+ fiber uplink
ports (see Transceiver modules and cables for SFP and SFP+ fiber ports on page
25), each with a combined speed and activity LED (see LEDs of the 8-port PoE+ and
PoE++ models on page 16).
Hardware Installation Guide15Hardware Overview
AV Line of Fully Managed Switches M4250 Series
