NETGEAR AV Series Hardware Installation Guide

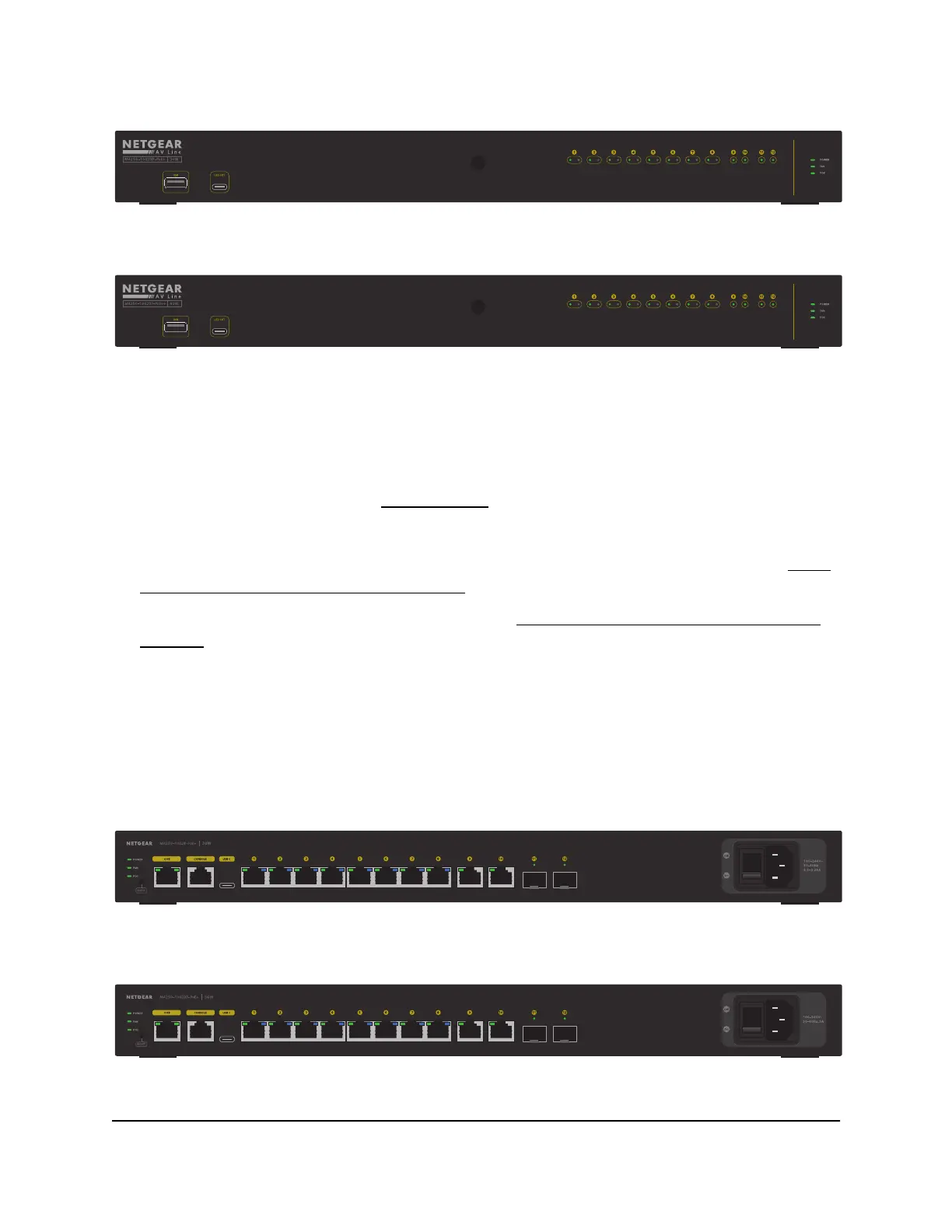

Figure 2. Front panel model M4250-10G2XF-PoE+
Figure 3. Front panel model M4250-10G2XF-PoE++
From left to right, the front panel of models M4250-10G2F-PoE+, M4250-10G2XF-PoE+,
and M4250-10G2XF-PoE++ provides the following common components, which are
clearly named or numbered on the front panel:
•
USB. One USB 2.0 port (see USB 2.0 port on page 27).
•
LED EXT. One LED extension port. This feature is currently not in use.
•
LEDs 1 through 12. Ports LEDs that are replicated from the back panel (see LEDs
of the 8-port PoE+ and PoE++ models on page 16).
•
POWER, FAN, and POE. System LEDs. (see LEDs of the 8-port PoE+ and PoE++
models on page 16).
Back panel of the 8-port PoE+ and PoE++ models
The 8-port PoE+ and PoE++ models provide eight PoE+ or PoE++ 1GBASE-T ports,
two non-PoE 1GBASE-T ports, and two 1G or 10G SFP+ fiber uplink ports.
The following figures illustrate the back panels.
Figure 4. Back panel model M4250-10G2F-PoE+
Figure 5. Back panel model M4250-10G2XF-PoE+
Hardware Installation Guide14Hardware Overview
AV Line of Fully Managed Switches M4250 Series

NETGEAR AV Series Specifications

General

Model	AV Series
Switching Capacity	Varies by model
Quality of Service	Yes
Jumbo Frame Support	Yes
Energy Efficient Ethernet	Yes
Ports	5, 8, 16
Layer	Layer 2
Mounting	Desktop
Speed	Gigabit Ethernet
Power Budget	Varies by model
Fanless Design	Yes
