NETGEAR AV Series Hardware Installation Guide

Hardware descriptions of the LED tiles model
with 2.5 Gbps ports
This section describes the switch hardware features for model M4250-12M2XF (SKU
MSM4214X).
Front panel of the LED tiles model

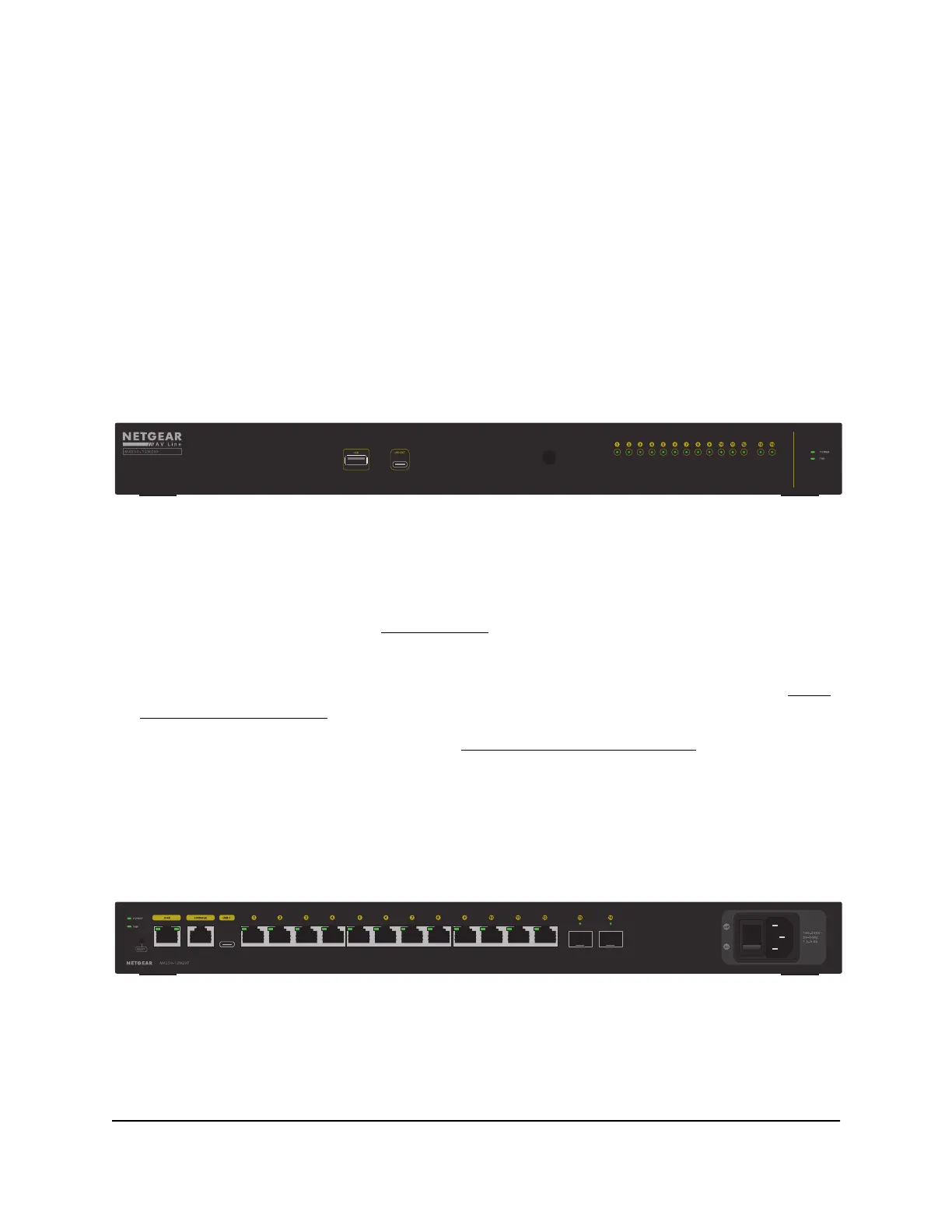

The following figure illustrates the front panel of the LED tiles model with 2.5 Gbps
ports, model M4250-12M2XF.
Figure 7. Front panel model M4250-12M2XF
From left to right, the front panel of model M4250-12M2XF provides the following
components, which are clearly named or numbered on the front panel:
•
USB. One USB 2.0 port (see USB 2.0 port on page 27).
•
LED EXT. One LED extension port. This feature is currently not in use.
•
LEDs 1 through 14. Ports LEDs that are replicated from the back panel (see LEDs
of the LED tiles model on page 19).
•
POWER and FAN. System LEDs. (see LEDs of the LED tiles model on page 19).
Back panel of the LED tiles model
The LED tiles model with 2.5 Gbps ports, model M4250-12M2XF, provides twelve
2.5GBASE-T RJ-45 ports and two 10G SFP+ fiber uplink ports.
Figure 8. Back panel model M4250-12M2XF
Hardware Installation Guide18Hardware Overview
