NETGEAR D6400

Manage the WAN and LAN Network Settings
211
AC1600 WiFi VDSL/ADSL Modem Router Model D6400
Manage Reserved LAN IP Addresses
When you specify a reserved IP address for a computer on the LAN, that computer always
receives the same IP address each time it accesses the modem router’s DHCP server.
Reserve a LAN IP address
You can assign a reserved IP address to a computer or server that requires permanent IP
settings.
 To reserve an IP address:
1. Launch an Internet browser from a computer or WiFi device that is connected to the
network.
2. T
ype http://www.routerlogin.net.
A login screen displays.
3. Enter the user name and password for the modem router.
The user name is admin
.
The default password is password
. The user name and
password are case-sensitive.
4. Click the OK button.
The BASIC Home screen displays.

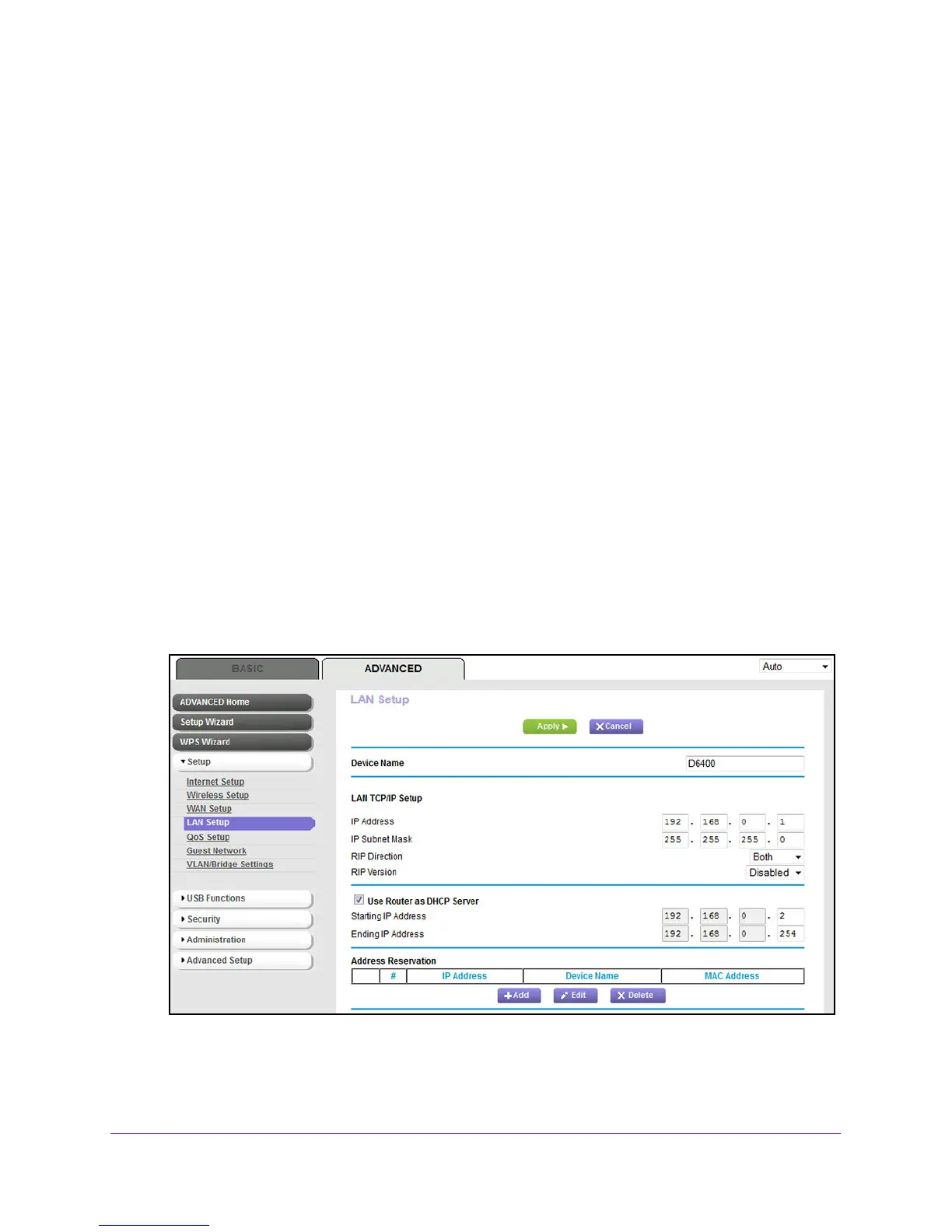

5. Select ADVANCED > Setup > LAN Setup.
6. In the Address Reservation section, click the Add button.
