Manage Port Forwarding and Port Triggering
272
AC1600 WiFi VDSL/ADSL Modem Router Model D6400
4. Click the OK button.
The BASIC Home screen displays.
5. Select ADVANCED > Advanced Setup > Port Forwarding / Port T
riggering.
The Port Forwarding / Port Triggering screen displays.
6. Select the Port Triggering radio button.

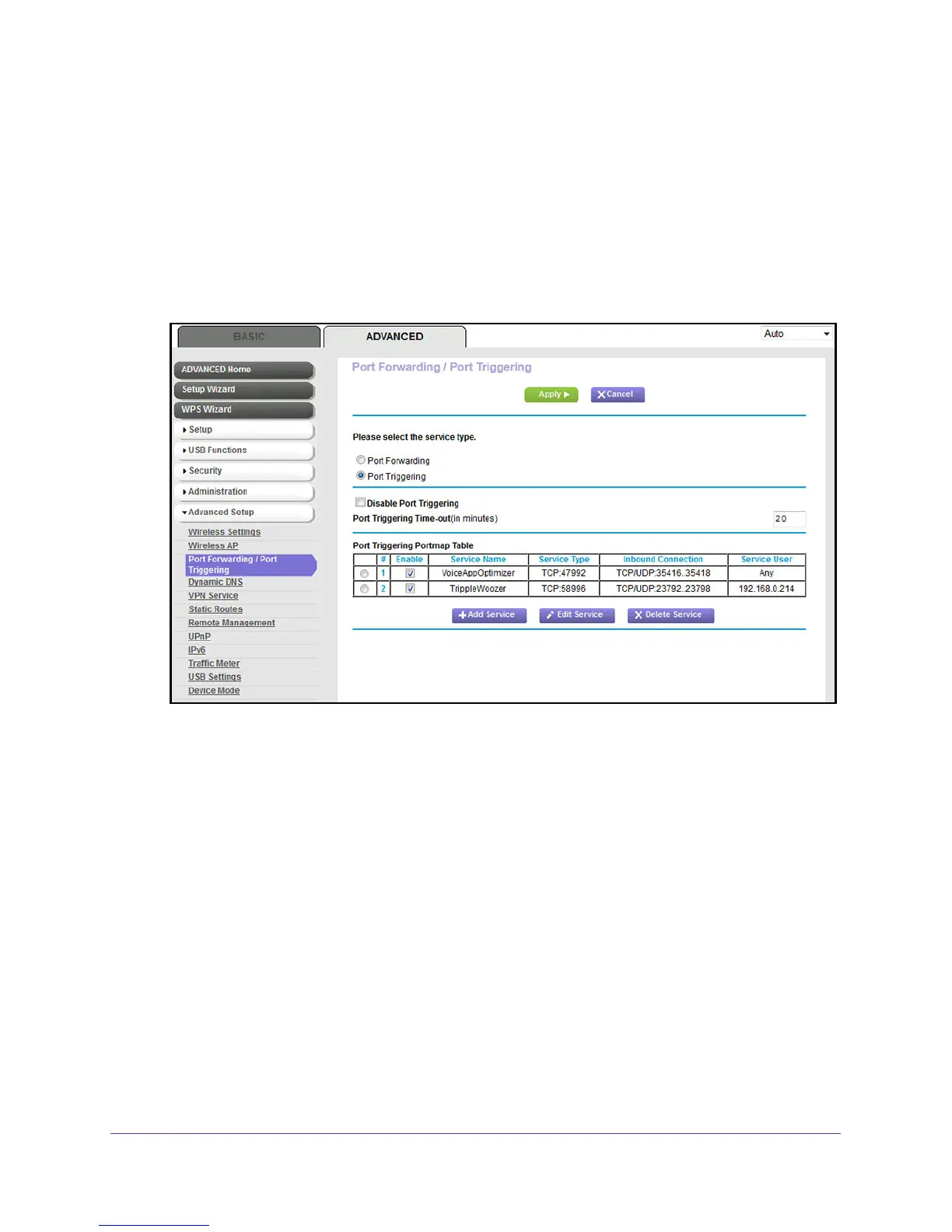

The following figure shows two port triggering rules.
7. To disable the rule, do the following:
a. In the Enable column of the Port Triggering Portmap
Table, clear the check box next
to the service or application name.
b. Click the Apply button.
Your settings are saved.
8. T
o remove the rule entirely, do the following:
a. In the Port Triggering Portmap
Table, select the radio button next to the service or
application name.
b. Click the Delete Service button.
The rule is removed from the Port T
riggering Portmap T
able.
