Configure Switching
139
Insight Managed 28-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP 1G & 2 SFP+ 10G Fiber Ports
The login window opens.
4. Enter the switch’s password in the password field.
The default password is password. If you added the switch to a network on the Insight
app before and you did not yet change the password through the local browser interface,
enter your Insight network password.
The System Information page displays.

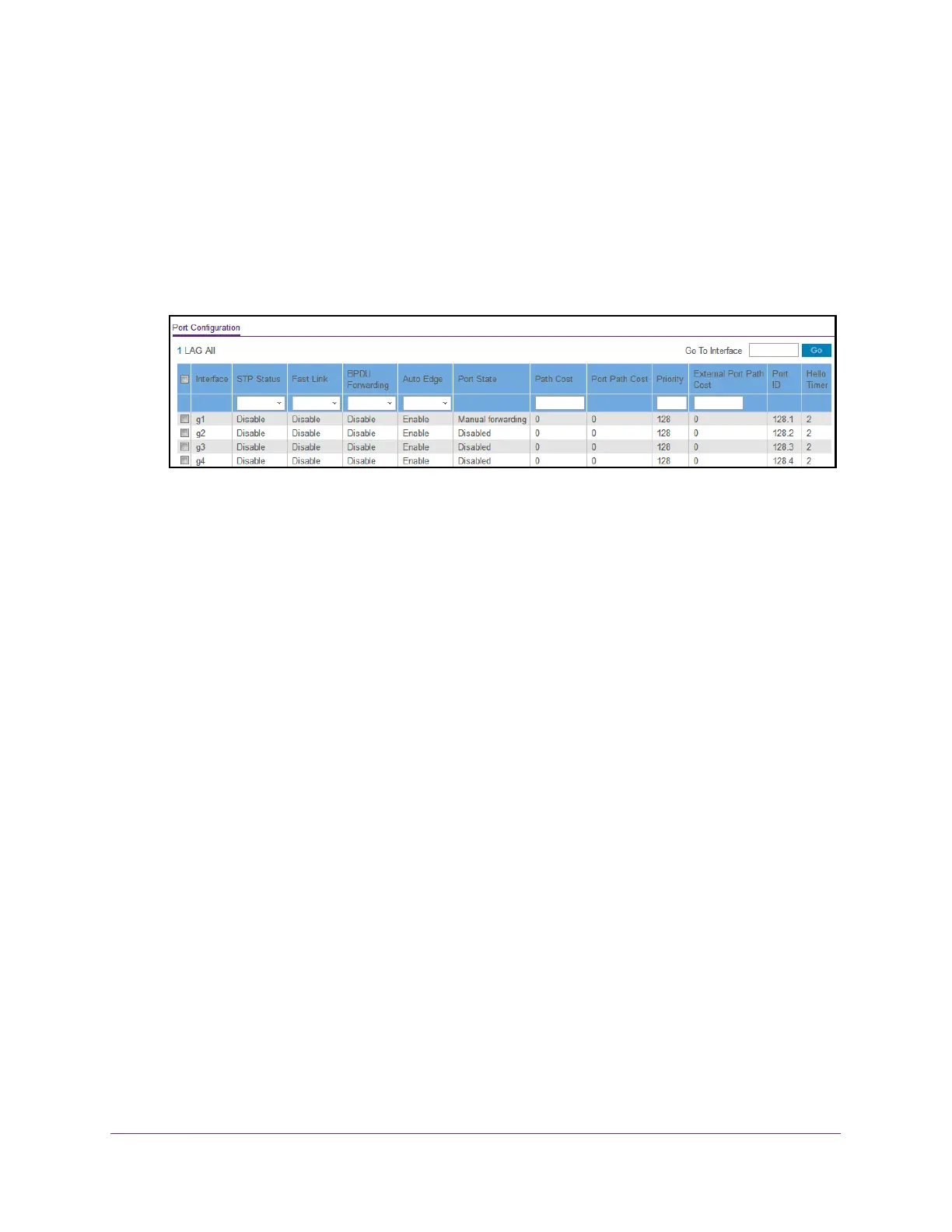

5. Select Switching > STP > Advanced > CST Port Configuration.
6. To display information for all ports and LAGs, click the All link.
7. Select one or more interfaces by taking one of the following actions:
• To configure a single interface, select the check box associated with the port, or type
the port number in the Go To Interface field and click the Go button.
• To configure multiple interfaces with the same settings, select the check box
associated with each interface.
• To configure all interfaces with the same settings, select the check box in the heading
row.
8. From the STP Status menu, select the option to enable or disable the spanning tree
administrative mode associated with the port or port channel.
The possible values are Enable and Disable. The default value is Disable.
9. From the Fast Link menu, select whether the specified port is an edge port within the CST.
The possible values are Enable and Disable. The default value is Disable.
10. From the BPDU Forwarding menu, configure BPDU forwarding.
The possible values are Enable and Disable. The default value is Disable. When BPDU
forwarding is enabled, the switch forwards the BPDU traffic arriving on this port when
STP is disabled on this port.
11. From the Auto Edge menu, specify if the port is allowed to become an edge port if it does
not detect BPDUs for some duration.
The possible values are Enable and Disable. The default value is Enable.
12. In the Path Cost field, set the path cost to a new value for the specified port in the common
and internal spanning tree.
Specify a value in the range of 0 to 200000000. The default is 0. When the path cost is
set to 0, the value is updated with the external path cost from a received STP packet.
