9. After creating the class, click the class name.
The class name is a hyperlink to the page on which you can define the class
configuration.

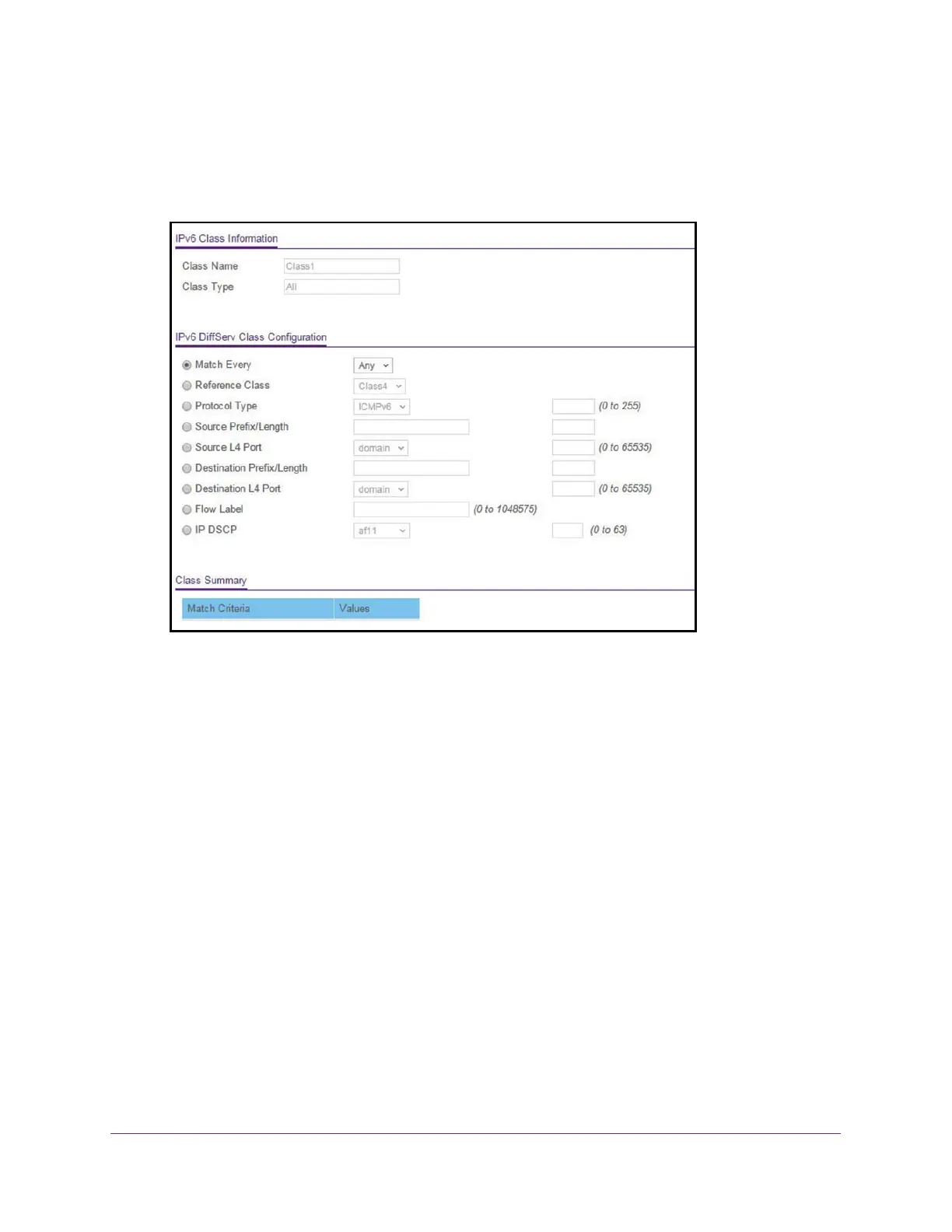

10. Define the criteria that must be associated the IPv6 DiffServ class:
• Match Every. Select this radio button to add a match condition that considers all
packets to belong to the class. The only selection from the Match Every menu is Any.
• Reference Class. Select this radio button to reference another class for criteria. The
match criteria defined in the reference class function as match criteria in addition to
the match criteria that you define for the selected class. After selecting this option, the
classes that can be referenced are displayed. Select the class to reference. A class
can reference at most one other class of the same type.
• Protocol Type. Select this radio button to require a packet’s Layer 4 protocol to match
the specified protocol, which you must select from the menu. The menu includes
Other as a selection, which lets you enter a protocol number from 0 to 255.
• Source Prefix/Length. Select this radio button to require a packet’s source prefix and
prefix length to match the specified source IPv6 prefix and prefix length. Prefix must
always be specified with the prefix length. The prefix can be in the hexadecimal range
from 0 to FFFF:FFFF:FFFF:FFFF:FFFF:FFFF:FFFF:FFFF and the prefix length can
be in the range from 0 to 128.
• Source L4 Port. Select this radio button to require a packet’s TCP/UDP source port to
match the specified protocol, which you must select from the menu. The range is 0 to
65535. The menu includes Other as an option for unnamed ports.
